Fiat ECU Scan Diagnostic Cables – MultiECUScan Adapters for Fiat, Alfa Romeo & Lancia
What are Fiat ECU Scan Diagnostic Cables?
Fiat ECU Scan Diagnostic Cables are a professional adapter kit for FiatECUScan and MultiECUScan, specially developed to provide access to various systems in Fiat, Alfa Romeo, and Lancia vehicles. These color-coded OBD2 adapters allow your diagnostic tool to communicate with ABS, power steering, airbags, low-speed CAN, electric hoods, and other systems not accessible via a standard OBD2 cable.
Why use Fiat ECU Scan Diagnostic Cables?
-
Vehicle-specific: Designed for Fiat, Alfa Romeo, and Lancia.
-
Color-coded: Each cable has a clear color for easy identification.
-

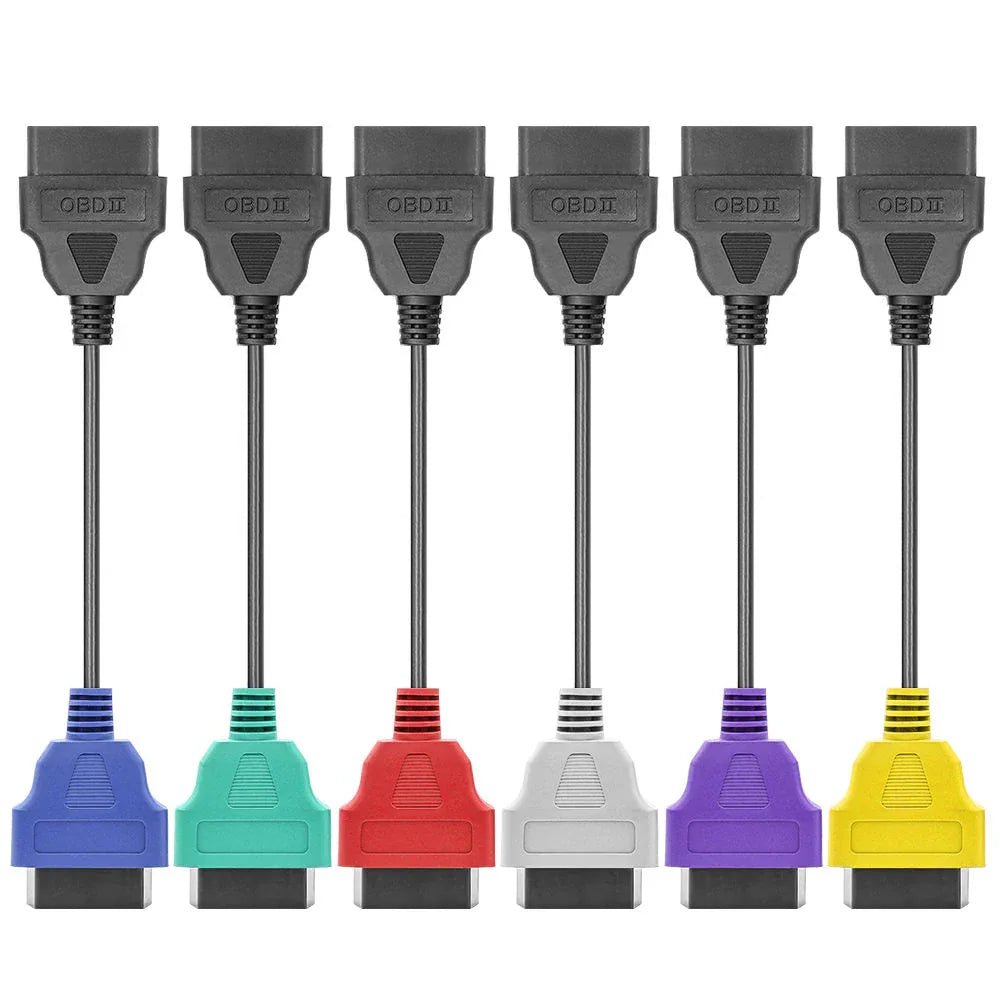

Complete set: 6 adapters included – covering several different systems.
-
Plug & play: No modification required – connect to the diagnostic tool and the ECU.
-
Professional quality: Made of durable ABS plastic for long-lasting use.
Which cables are included in Fiat ECU Scan Diagnostic Cables?

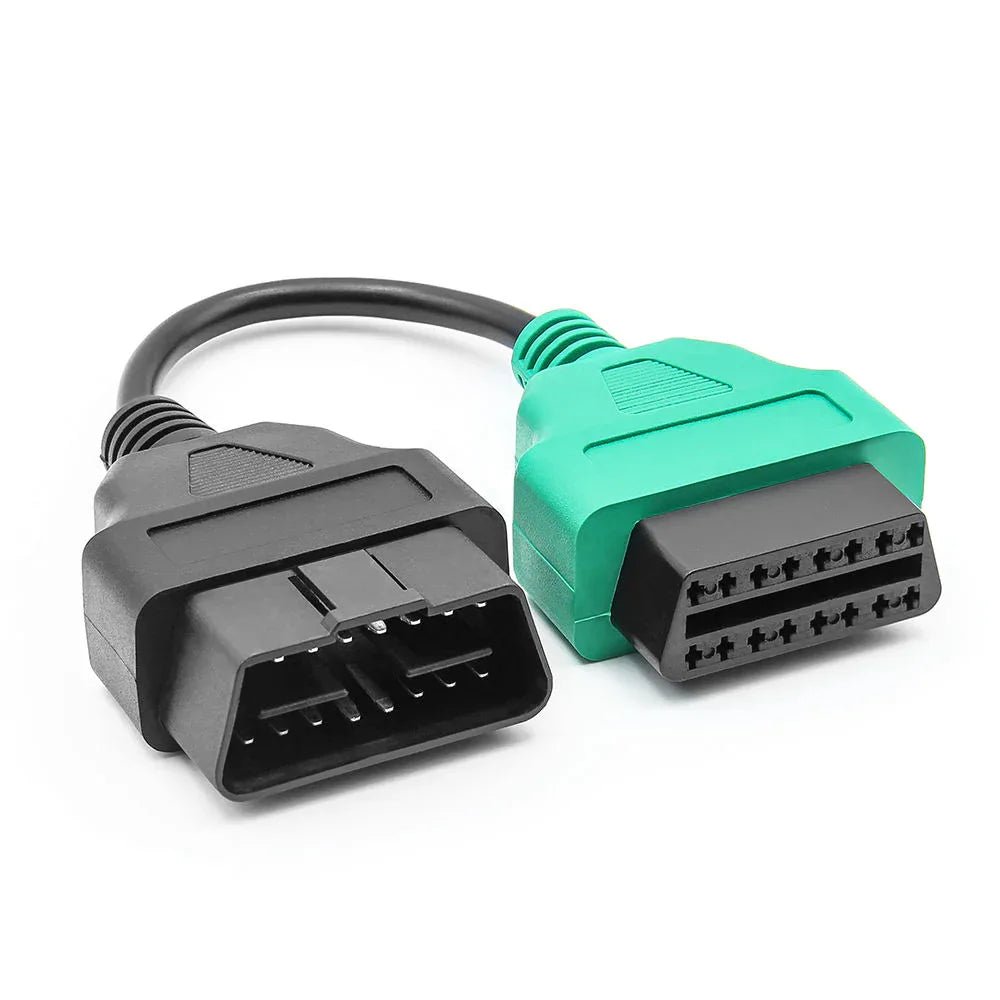

Green Cable – ABS / Power Steering (Adapter 1)
Provides access to ABS and power steering systems. Green connector for easy identification.
Pinout: Pin 7 (diagnostic tool) → Pins 1, 7, 9 & 12 (vehicle).
Red Cable – System Access (Adapter 2)
Provides access to specific systems in the vehicle. Red connector.
Pinout: Pin 7 (diagnostic tool) → Pin 3 (vehicle).

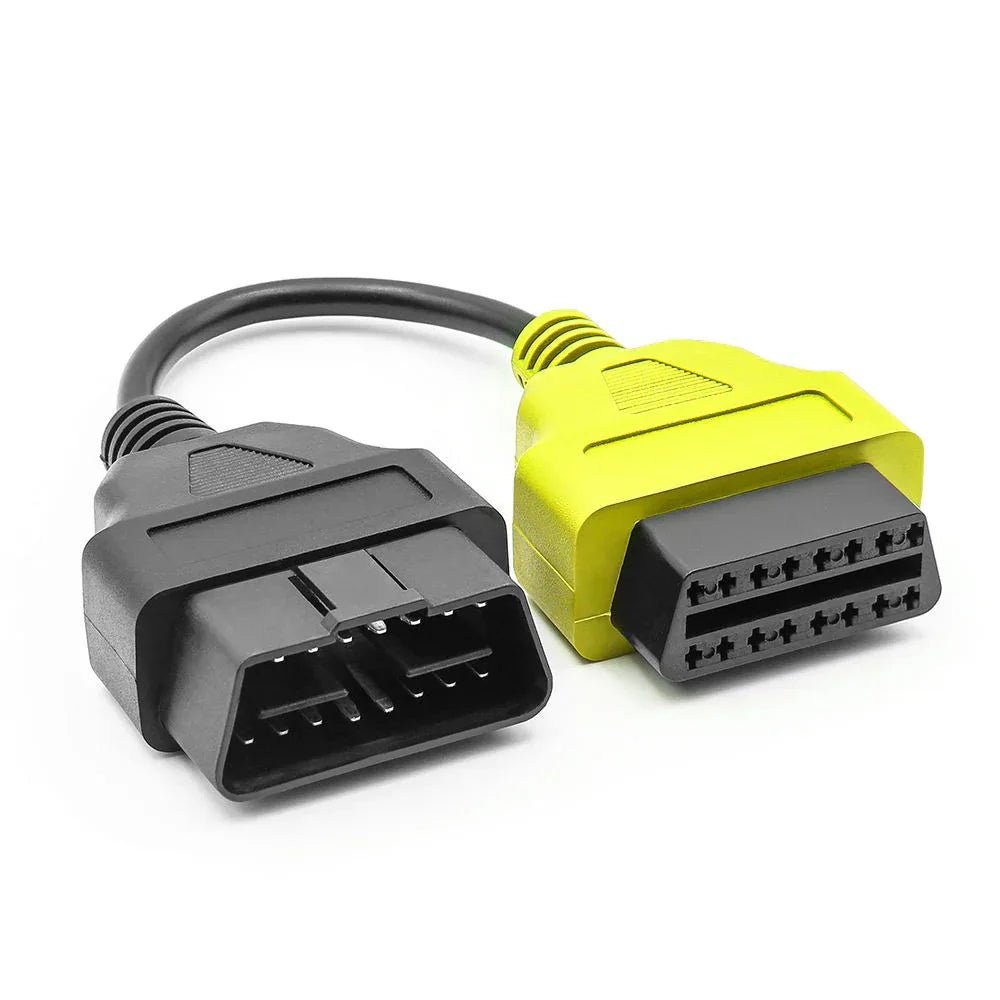

Yellow Cable – Low-speed CAN (Adapter 3)
Provides access to low-speed CAN systems. Yellow connector.
Pinout: Pin 6 & 14 (diagnostic tool) → Pins 1 & 9 (vehicle).
Pin 7 (diagnostic tool) → Pin 12 (vehicle).
Purple Cable – Electric Hood (Adapter 4)
Provides access to electric hood systems on compatible vehicles. Purple connector.
Pinout: Pin 7 (diagnostic tool) → Pins 7, 8, 11 & 13 (vehicle).
Other cables

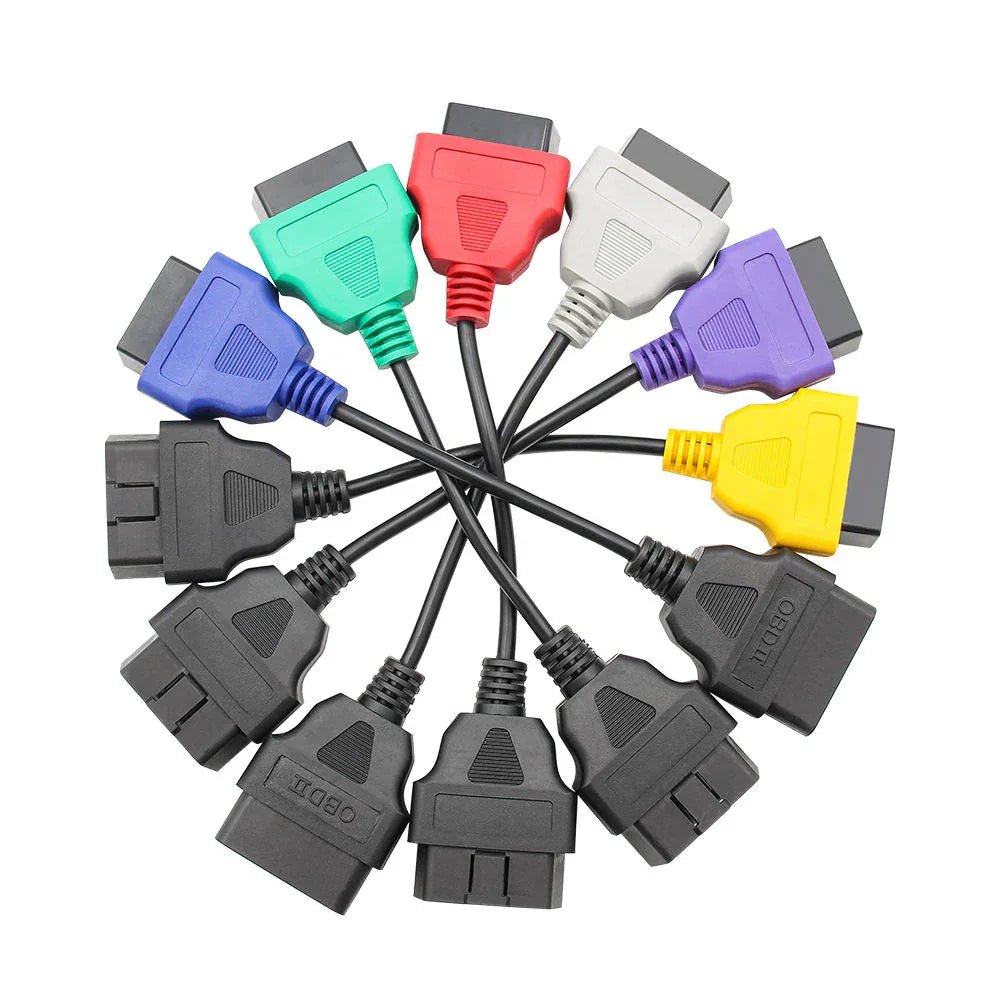

The kit consists of a total of 6 cables according to the MultiECUScan system. Each adapter is color-coded to minimize incorrect connections and simplify use.
Technical specifications
-
Cable type: OBD2 to Fiat/Alfa/Lancia special adapters
-
Compatible with: FiatECUScan & MultiECUScan
-
Material: ABS plastic
-
Cable length: approx. 22 cm
-
Identification: Color-coded connectors for easy use
How to use Fiat ECU Scan Diagnostic Cables?
- Install MultiECUScan or FiatECUScan on your PC.
- Connect the correct adapter cable between your diagnostic tool and the vehicle's OBD port.
- Start the software and select the correct system (ABS, power steering, CAN, electric hood, etc.).
- Perform diagnosis: read/clear fault codes, check live data, and run tests.
Who needs these adapters?
-
Workshops: For troubleshooting and servicing Fiat/Alfa/Lancia.
-
Home mechanics: To expand diagnostic capabilities with their OBD tool.
-
Car enthusiasts/collectors: Who want to maintain classic Fiat and Alfa Romeo.
FAQ – Frequently asked questions about Fiat ECU Scan Diagnostic Cables
Do they work with all OBD2 tools?
No, they are intended for use with FiatECUScan and MultiECUScan.
Why are the cables color-coded?
To quickly and easily identify which cable is used for which system.
Can I use them on other car brands?
No, they are specifically designed for Fiat, Alfa Romeo, and Lancia.
Are the adapters difficult to use?
No, connection is plug & play – just follow the software instructions.
