Guide: VAG KKL + Fiat ECU Scan Tool with 4-way switch

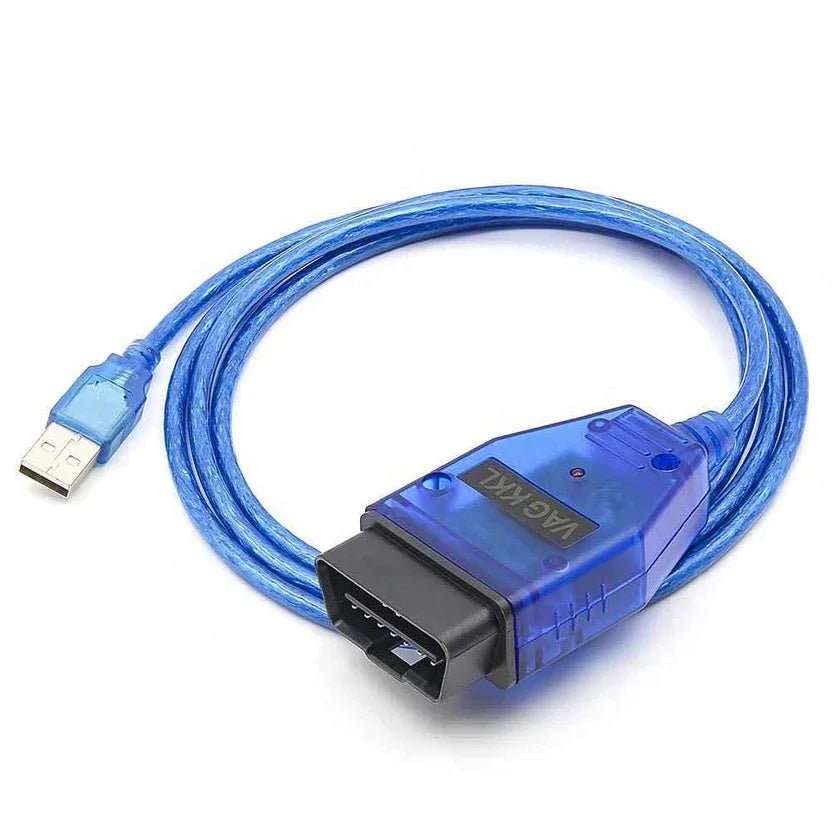

This guide applies to – a VAG KKL cable adapted for Fiat/Alfa/Lancia with a 4-position switch that replaces external adapter cables (yellow/green/red etc.). Intended for use with, for example, MultiECUScan (MES)/FiatECUScan and other K-Line programs.

Quick Overview – switch positions

The switch positions (1–4 or A–D) route the K-Line (pin 7) to different OBD pins to access specific control units:

  • Position 1 – Standard Engine/OBD: Pin 7 (K-Line direct)
  • Position 2 – Airbag/SRS (yellow adapter): Pin 1
  • Position 3 – ABS/ESP (green adapter): Pin 3
  • Position 4 – Body/Power Steering/Instrument (red adapter): Pin 11

Note: Some cables may be labeled A–D instead of 1–4. Check the label on your cable if the order differs.

How does it work?

Fiat/Alfa/Lancia use different OBD pins for various control units. The 4-way switch in the cable reroutes the K-Line so you can access the correct module without separate adapter cables.

Switch Position OBD Pin Typical Control Units Comment/Adapter Color
Position 1 – Standard 7 Engine/ECU, generic OBD Base mode (no adapter)
Position 2 – SRS 1 Airbag/SRS Corresponds to yellow adapter
Position 3 – ABS 3 ABS/ESP Corresponds to green adapter
Position 4 – Body/ELPS/IPC 11 Body Computer, Power Steering (ELPS), Instrument Panel, Comfort Corresponds to red adapter

Recommended use in MultiECUScan

  1. Install the correct driver for the cable: FTDI (most common) or CH340.
  2. Open Device Manager in Windows and note the COM port (preferably set to COM1–COM4).
  3. Start MultiECUScanOptions > Interfaces:
    • Select KL (K-Line) / KKL as the interface.
    • Select the same COM port as in Device Manager.
    • Baud rate: standard works (MES handles this).
  4. Set the switch position according to the table (do this before connecting in the car).
  5. Connect the OBD connector in the car and turn on the ignition (MAR/ON position, do not start the engine).
  6. In MES: select car/model and Control Module. Follow the module's adapter instruction:
    • No adapter / “No adapter required”Position 1 (pin 7)
    • Adapter 1 (yellow)Position 2 (pin 1)
    • Adapter 2 (green)Position 3 (pin 3)
    • Adapter 3 (red)Position 4 (pin 11)

Common examples

  • Engine/ECU (Fiat 1.2/1.4 Fire, JTD etc.) → Position 1 (pin 7)
  • ABS/ESPPosition 3 (pin 3)
  • Airbag/SRSPosition 2 (pin 1)
  • ELPS/Power Steering, Body Computer, IPCPosition 4 (pin 11)

Troubleshooting

Problem Likely Cause Action
No connection to the module Wrong switch position Change to the corresponding adapter position according to MES (1→2→3→4).
Interface not found Incorrect COM port/driver Check Device Manager, install correct FTDI/CH340, select same COM in MES.
Connection breaks/unstable USB hub/extension, low voltage Use the computer's USB directly, avoid hubs and extension cables.
Wrong module accessed despite correct position Incorrect vehicle selection or unusual pin routing Verify car/model year in MES and test adjacent positions. Some models require additional pins.

Technical Reference (OBD2 Pins)

  • Pin 4 & 5: Ground
  • Pin 16: +12 V power supply
  • Pin 7: K-Line (standard engine/OBD)
  • Pin 1: SRS/Airbag (yellow)
  • Pin 3: ABS/ESP (green)
  • Pin 11: Body/ELPS/IPC (red)

Safety & Tips

  • Do not change the switch position while the cable is connected to the car's OBD socket.
  • Always turn on the ignition (MAR/ON) before connecting in MES.
  • Carefully read the module's instructions in MES – it will show which "adapter" (position) is required.
  • When coding/adjusting: ensure stable battery voltage.

FAQ

Do I need to buy separate colored adapters?
No. The 4-way switch in the cable replaces yellow (pin 1), green (pin 3), and red (pin 11). Standard (pin 7) is available as position 1.
Baud rate/settings?
Use KKL/K-Line in MES and the correct COM port. MES automatically manages speed for most control units.
The cable is labeled A–D, how do I map it?
Most commonly: A=pin 7, B=pin 1, C=pin 3, D=pin 11. Check the product label – if it differs, follow the label.
Need help? Provide your car model/year, which module you want to access, and which mode you have tried – and we will guide you step by step.
