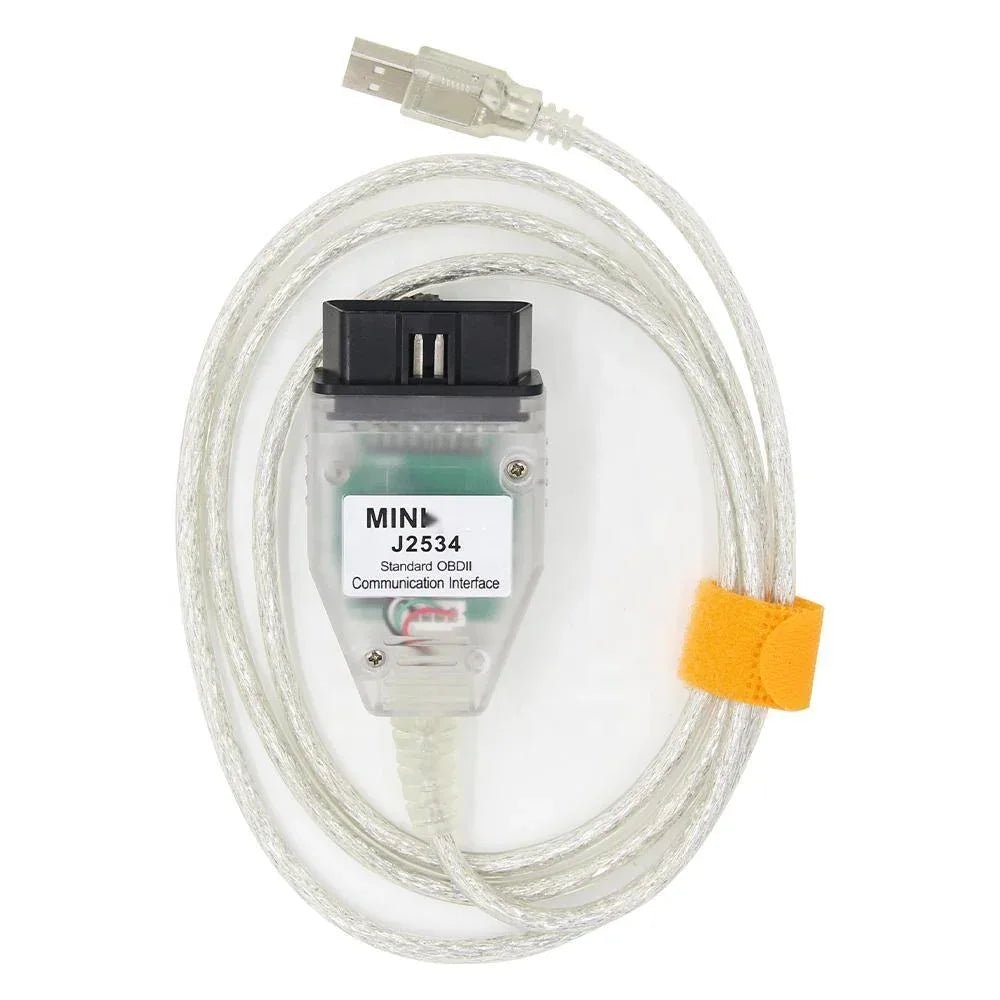

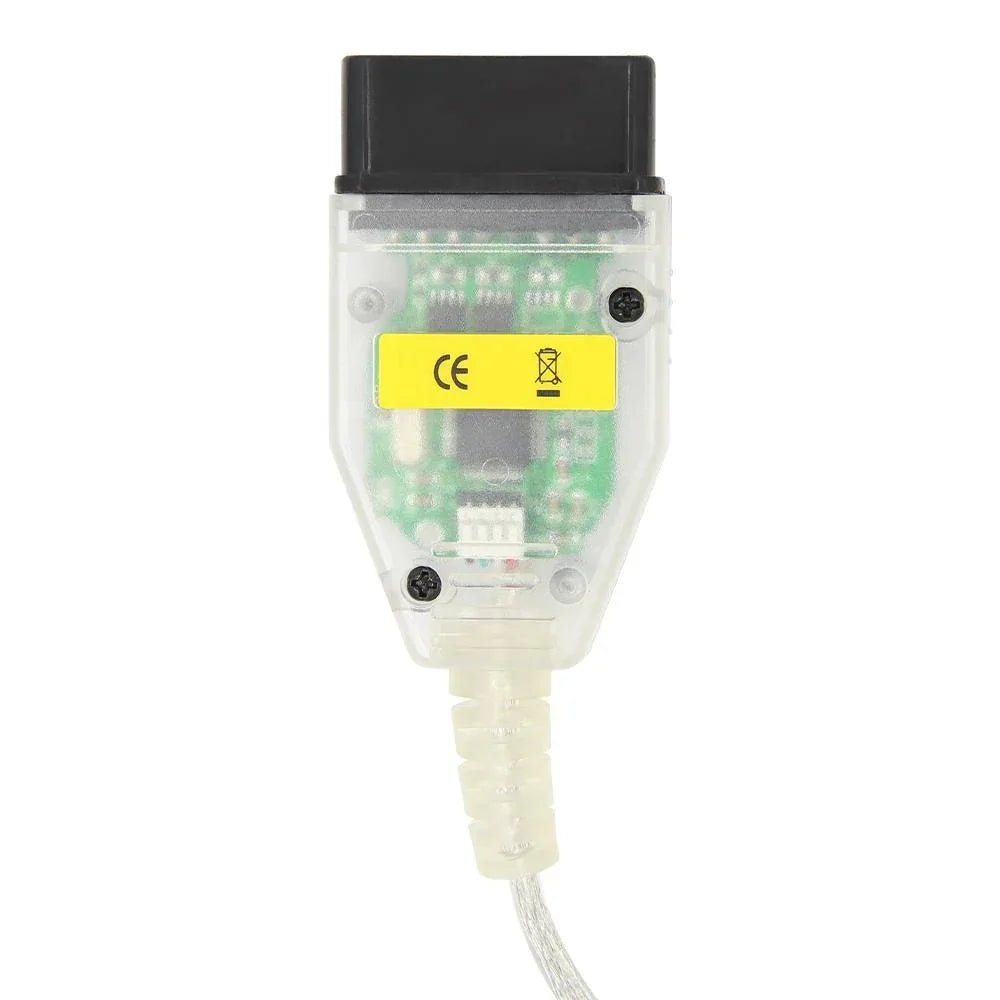

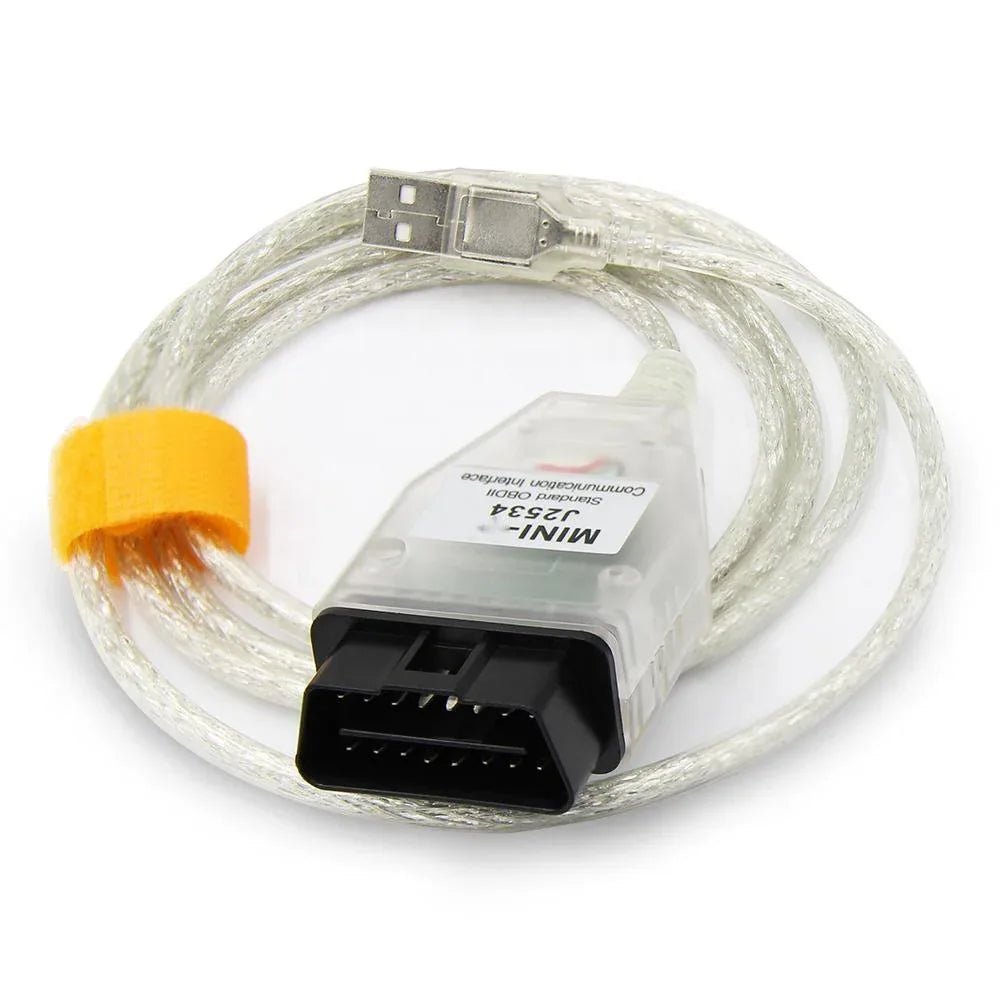

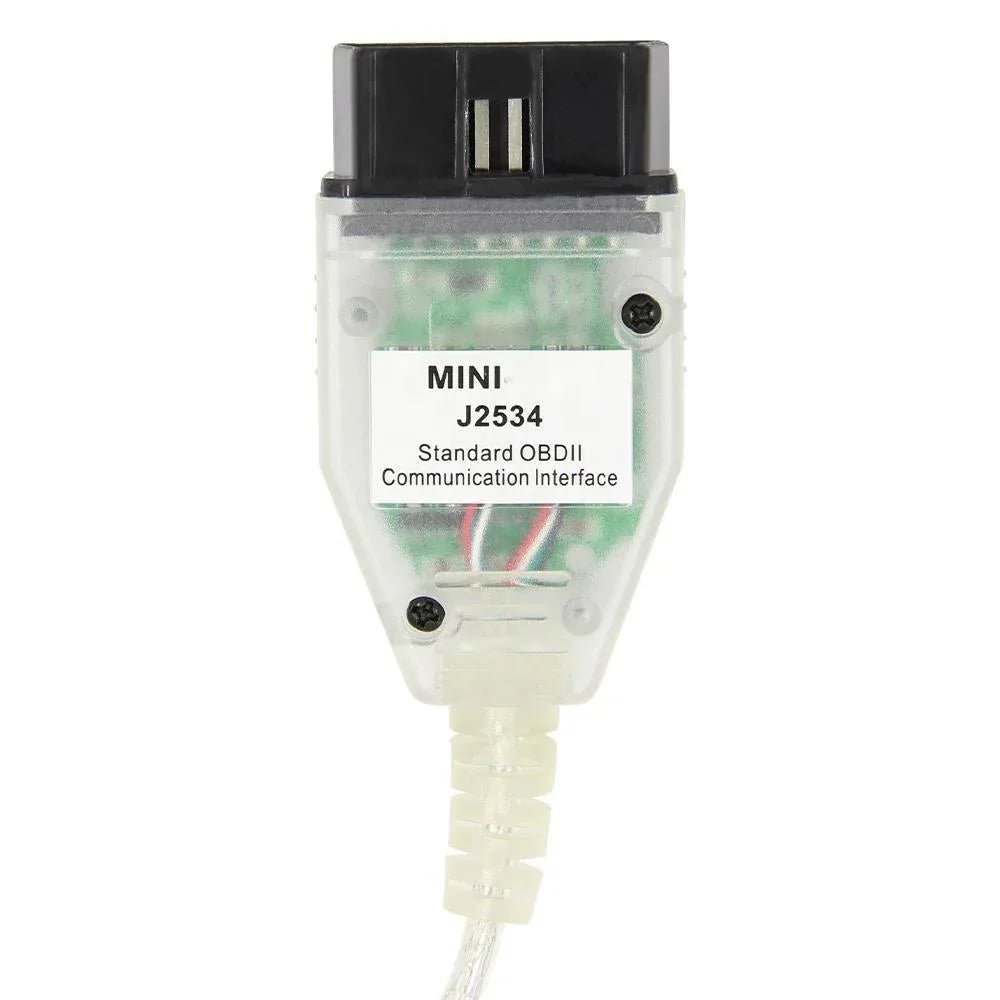

J2534 Techstream OBD2 USB Cable (FT232RQ) – Diagnostic Interface for Toyota TIS Techstream

Short Version

This Mini J2534 OBD2 USB cable is an affordable diagnostic interface for those who want to run Toyota TIS Techstream on a computer and get OEM-like diagnostics on Toyota cars with a 16-pin OBD2 socket. The product is marketed as a "single diagnostic cable" for Toyota and is said to be a cost-effective alternative (reportedly costing about one-third of some foreign alternatives). It is intended to support Toyota communication for models from 1996 onwards and works with Techstream according to the product information.

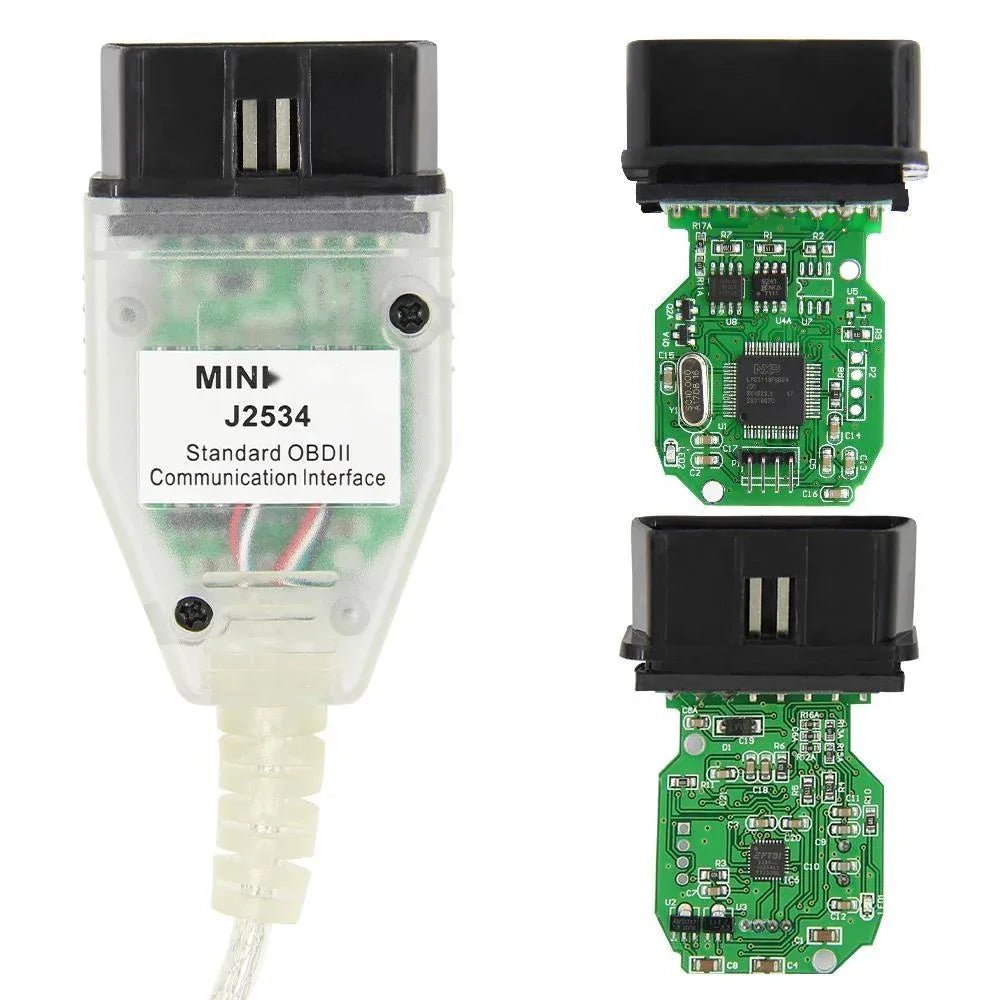

Under the hood, the cable uses an FT232RQ solution and is listed as a J2534 interface. The specified software version is V17.10.012 and the firmware is 1.4.1. The recommended operating system is Windows 7 (32-bit), and it is also stated to support Windows XP. Please note: the package does not include a Toyota 22-pin adapter, which, according to the product text, means the cable only works on Toyota with 16-pin.

It supports several common diagnostic protocols that Toyota may use, including K-Line (ISO 9141), KWP2000 (ISO 14230-4), SAE J1850 PWM/VPW, and CAN (CAN 2.0B ISO 11898 and ISO 15765-4). Perfect for troubleshooting, reading fault codes, and data analysis via Techstream – where supported by the car.

• Type: Mini J2534 USB → OBD2 16-pin (Toyota Techstream)
• Chip: FT232RQ
• For cars: Toyota 16-pin, generally 1996+
• OS: Windows XP / Windows 7 32-bit (recommended)
• Software/Firmware: V17.10.012 / 1.4.1 - not included.
• Note: 22-pin Toyota adapter not included

Who is this cable for?

This cable is for you if you want to run Toyota Techstream on a computer and get more OEM-like diagnostics than a regular generic OBD2 dongle. It is particularly suitable for:

• Toyota owners who want to read fault codes, view live data, and deeply understand issues
• home mechanics who want to systematically troubleshoot and save logs
• workshops that want an affordable Techstream interface for Toyota 16-pin

Note: It is specified for Toyota 16-pin. If your Toyota has an older 22-pin connector, you will need a separate adapter (not included).

What can you do with Techstream?

The product text describes support for Toyota TIS OEM diagnostic software and Toyota's protocols. With Techstream, you can (depending on the car) typically:

• Read & clear Diagnostic Trouble Codes (DTCs)
• View live data from sensors and systems
• Read ECU/module info (IDs, versions, etc.)
• Perform active tests and some special functions (varies by car)
• Conduct Health Checks and create a comprehensive overview of the car's systems

The exact level of functionality depends on the model, year, and ECU setup.

Compatibility & limitations (important)

1) Toyota 16-pin only (22-pin adapter not included)

The documentation explicitly states that the package does not include a 22-pin connector, and therefore the cable only works on Toyota 16-pin.

2) Designed for Toyota from 1996+

The product text indicates support for Toyota protocols "since 1996". If you have an older Toyota, it is not guaranteed to work.

3) Windows XP / Windows 7 32-bit

The recommended OS is Windows 7 32-bit. The documentation also mentions support for Windows XP. If you are running newer Windows, driver compatibility may vary depending on the release version.

Supported protocols

According to the product information, the cable supports the following protocols:

• K-Line – ISO 9141
• KWP2000 – ISO 14230-4
• SAE J1850 PWM
• SAE J1850 VPW
• CAN 2.0B – ISO 11898
• CAN – ISO 15765-4

Step-by-step: installation (Windows)

You will need

• Windows PC (preferably Win7 32-bit as recommended, or Windows XP)
• Admin rights
• USB port directly on the computer (avoid USB hub)
• Techstream installation (Toyota TIS)

Step 1: Install driver

1. Disconnect the cable from the computer.
2. Install the driver included with/specified for the cable (FT232RQ/J2534).
3. Restart the computer if the installation prompts you to.
4. Connect the cable to a USB port and wait for Windows to install the device.

Step 2: Check in Device Manager

1. Open Device Manager.
2. Verify that the device appears without a warning triangle.
3. If you see a warning: update the driver and point to the driver's folder.

Step 3: Install and configure Techstream

1. Install Techstream (the documentation mentions software version V17.10.012).
2. Start Techstream and select the correct interface/PassThru (J2534) in the settings.
3. Close and reopen Techstream if the interface selection doesn't "take" immediately.

Tip: If you have multiple PassThru/J2534 drivers installed, they may conflict. Preferably use a "clean" diagnostic computer for Toyota.

Step-by-step: use for diagnosis

1) Connect to the car

1. Connect the cable to the computer via USB.
2. Connect the 16-pin OBD2 connector to the car's OBD2 port.
3. Turn the ignition ON or start the car according to Techstream's instructions.

2) Perform diagnosis

1. Start Techstream.
2. Select car model/year if Techstream requires it.
3. Run "Health Check"/system scan.
4. Read fault codes and save results before clearing.
5. Use live data and active tests as needed (car-dependent).

3) After action

• Clear fault codes only after the fault has been rectified.
• Rerun the scan to verify everything is OK.

Troubleshooting

Techstream does not detect the cable

• Check the driver in Device Manager (no warning triangle).
• Change USB port (preferably USB 2.0 directly on the computer).
• Restart Techstream and the computer.
• Uninstall other PassThru drivers if they conflict.

No communication with the car

• Ensure the car has a 16-pin connector and the ignition is ON.
• Confirm compatibility (Toyota 1996+ according to product info).
• Test on another Toyota 1996+ to rule out a car-specific problem.

Problems on newer Windows

• The product recommends Win7 32-bit. If you encounter driver problems: run that environment for the best chance of stability.

Tips & best practices

• Charge the car battery during prolonged diagnosis – low voltage often causes communication errors.
• Document fault codes before clearing (screenshot/export).
• Avoid USB hubs – connect directly to the computer.
• A dedicated diagnostic PC reduces the risk of driver conflicts.

Specifications

Package Contents

• 1 × Mini J2534 Techstream diagnostic cable (FT232RQ)

Note: The documentation mentions "TIS V15.00.028" in the packing list text, but V17.10.012 is also stated above. Consider version lines as supplier information; the actual software and license management may vary between deliveries and setups.

FAQ – Frequently Asked Questions

1) Does it work on Toyota with a 22-pin connector?

No, a 22-pin adapter is not included, and the product is therefore said to only work on Toyota 16-pin.

2) Does it work on Toyota before 1996?

The product is marketed for Toyota "since 1996". Older cars may lack support.

3) Which Windows should I use?

Win7 32-bit is recommended. Windows XP is also mentioned as a supported system.

4) Which protocols does it support?

ISO 9141, ISO 14230-4, SAE J1850 PWM/VPW, CAN 2.0B (ISO 11898) and ISO 15765-4.

5) Is Techstream included?

The product describes Techstream versions, but software/license may vary. We always recommend legal software management.

Notes & Disclaimer

• Compatibility: Designed for Toyota 16-pin, 1996+ according to product info. Older cars and some models may differ.
• 22-pin: 22-pin adapter is not included.
• OS: Win7 32-bit is recommended, XP is mentioned as supported.
• Software/license: Techstream may require a valid license/access. Always use legal sources.
• ECU functions: Advanced functions may involve risk. Ensure stable voltage and follow the correct procedure.

Summary

This Mini J2534 Techstream OBD2 USB cable with FT232RQ is an affordable option for Toyota diagnostics via TIS Techstream. It is designed for Toyota 16-pin and generally 1996+, supporting key protocols (K-Line, KWP2000, J1850, and CAN). For best compatibility: use the recommended OS (Win7 32-bit), install drivers correctly, and ensure your car is 16-pin.
