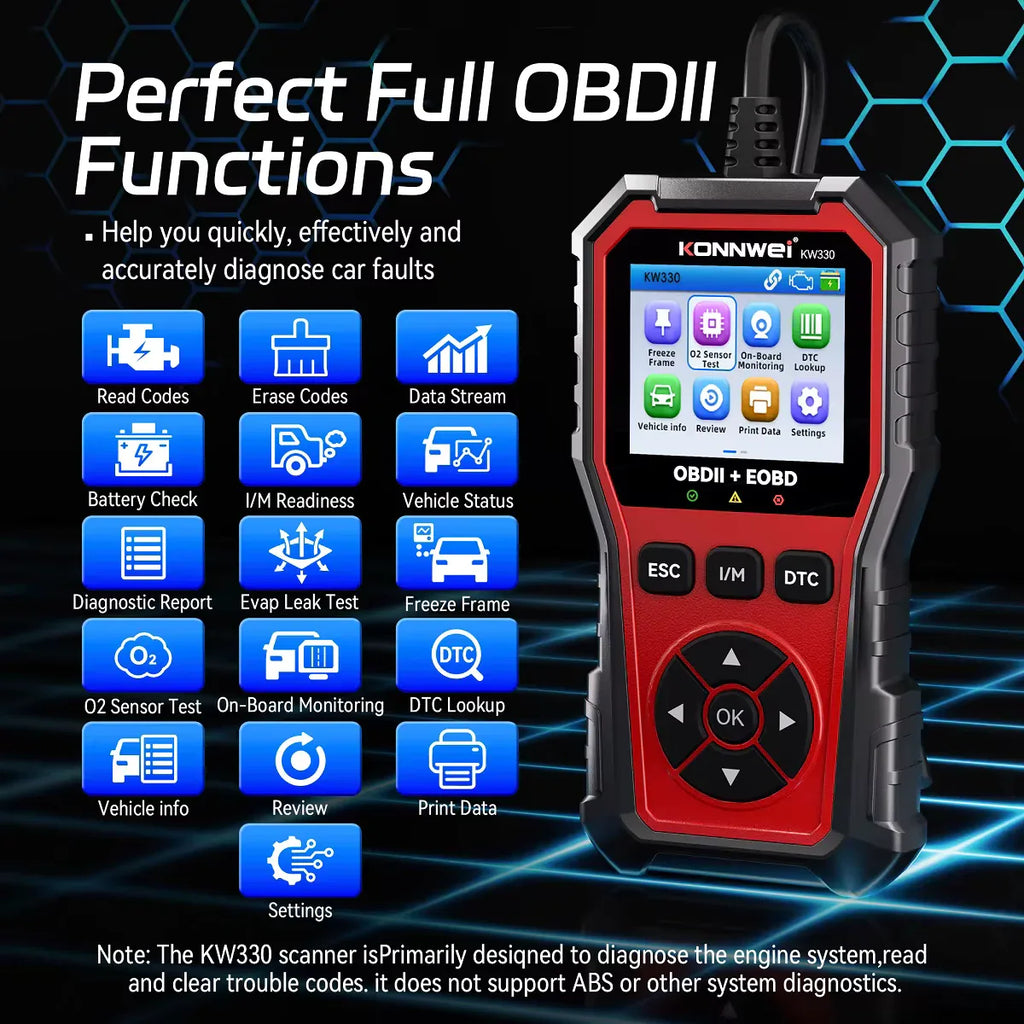

KONNWEI KW330 – OBD2/EOBD Fault Code Reader (Enhanced Handheld Automotive Engine Analyzer)

KONNWEI KW330 is a portable OBD2/EOBD car diagnostic and fault code reader for 12V vehicles with verified OBD2 support. It is designed to work primarily with the Engine System, helping you quickly understand why the Check Engine Light (MIL) is on, read out diagnostic trouble codes (DTCs), interpret them directly on the screen, and, if necessary, erase codes and reset monitors. The KW330 supports both generic codes (P0, P2, P3, U0) and manufacturer-specific codes (P1, P3, U1). It can also display freeze frame, pending codes, live data/PCM data stream, and perform test functions such as O2 sensor test and EVAP test.

For those who need emissions and inspection-related information, the KW330 offers I/M readiness and drive cycle verification, making it easier to see if the vehicle is ready after repair or code erasure. It features a clear 2.8" color screen, a built-in DTC lookup library, and can retrieve vehicle information such as VIN (and, if supported: CIN and CVN). The tool supports CAN (Controller Area Network) and other current OBD-II protocols, and offers memory/backup for reviewing data even when the device is not connected to the car. With support for 9 languages (English, French, German, Dutch, Spanish, Russian, Portuguese, Italian, Polish), the KW330 is suitable for both DIYers and workshops looking for a fast, affordable OBDII/EOBD car scanner with a color screen and strong engine-related functions. ✅

Introduction – What is the KW330 and what can it help you with?

The Portable Car Scanner KW330 from KONNWEI is a handheld diagnostic tool for those who want to troubleshoot their car's engine system via OBD2/EOBD. When a car illuminates the Check Engine Light (MIL), it could be anything from a minor sensor deviation to a fault affecting emissions, fuel consumption, or drivability. With the KW330, you can plug the tool into the car's 16-pin OBDII port (on 12V vehicles), turn on the ignition, and then select the diagnostic mode you want to use. The tool allows you to read DTC fault codes, view descriptions directly on the screen, look at freeze frame data (a "snapshot" of operating values when the fault was recorded), read live datastream from the powertrain control module (PCM), and perform checks such as I/M readiness and various emissions-related tests (e.g., O2 sensor and EVAP when the car supports it).

The KW330 is essentially an upgrade from simpler fault code readers, as it combines several practical functions in one tool: a lookup library for codes, display of monitor status, the ability to store/playback live data, and a clear color screen. It is therefore particularly relevant for those who want a convenient OBD2 code reader, an engine trouble scanner, and a car fault diagnostic tool in the same unit – without needing to use a computer for the most common engine-related tasks.

Specifications (bullet list)

• Type: KW330 Enhanced Handheld Automotive Engine Analyzer
• Voltage: 12V
• Power: 0.77W
• Brand: KONNWEI
• Origin: Guangdong, China
• Product Name: KW330 automotive diagnostic equipment
• Primary Function: Read and erase fault codes in the Engine System
• Emissions Functions: Vehicle Emissions check / drive cycle verification, I/M readiness
• Data & Analysis: Live datastream, freeze frame data, DTC lookup, pending codes
• Tests: Battery check, O2 sensor test, EVAP test
• Vehicle Info: Read VIN (and if supported: CIN and CVN)
• Screen: 2.8" color clear screen (large, easy-to-read color LCD)

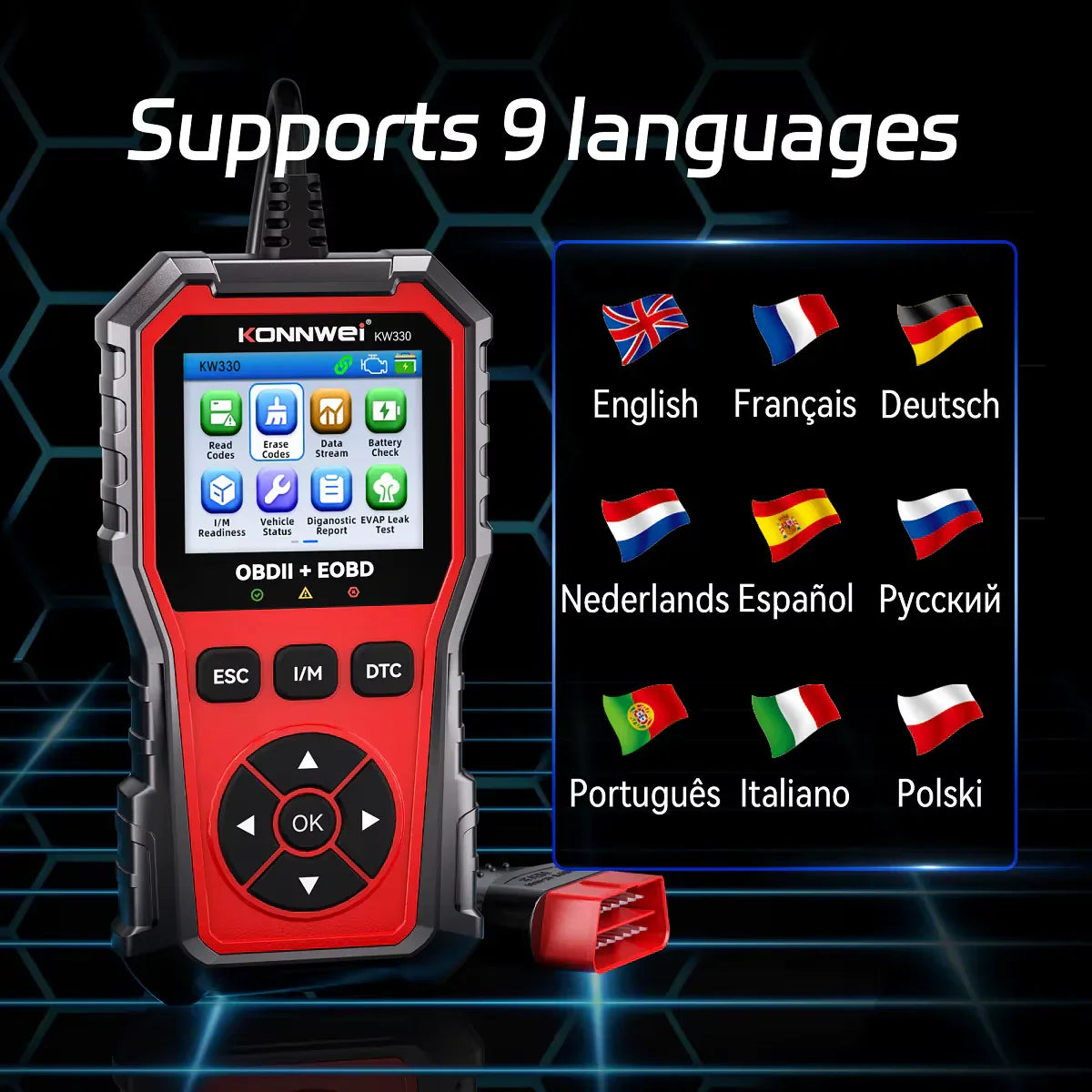

• Languages (9): English, French, German, Dutch, Spanish, Russian, Portuguese, Italian, Polish
• Application: Detect 12V cars which are OBD2 protocol verified
• Housing Color: Black + red
• Certificates: CE, RoHS, FCC, ISO
• Protocol Support: Supports CAN (Controller Area Network) and all other current OBD-II protocols
• Keywords/Search terms: OBD2 code reader, engine trouble scanner, car fault diagnostic tool, OBDII EOBD car scan tool, escanner automotriz, automotive diagnostic scanner, color screen car scanner

H2/H3 variants and synonyms (for clarity and SEO)

The KW330 can be described in several ways depending on how you search: OBD2 fault code reader, OBDII diagnostic tool, EOBD code reader, engine diagnostic, car scanner or automotive diagnostic scanner. Regardless of the name, the focus is the same: quick and clear diagnostics of engine-related fault codes and status data via the car's OBD2 system.

OBD2 code reader / OBDII EOBD car scan tool

For those who primarily want to read/erase codes and turn off the Check Engine Light (MIL), the KW330 is a classic OBD2 code reader with a clear screen and lookup library.

Engine trouble scanner / Automotive engine analyzer

For those who want to understand why a code appears and view operating data, the KW330 is also an engine analyzer with live data, freeze frame, and monitor status.

Functions & Applications

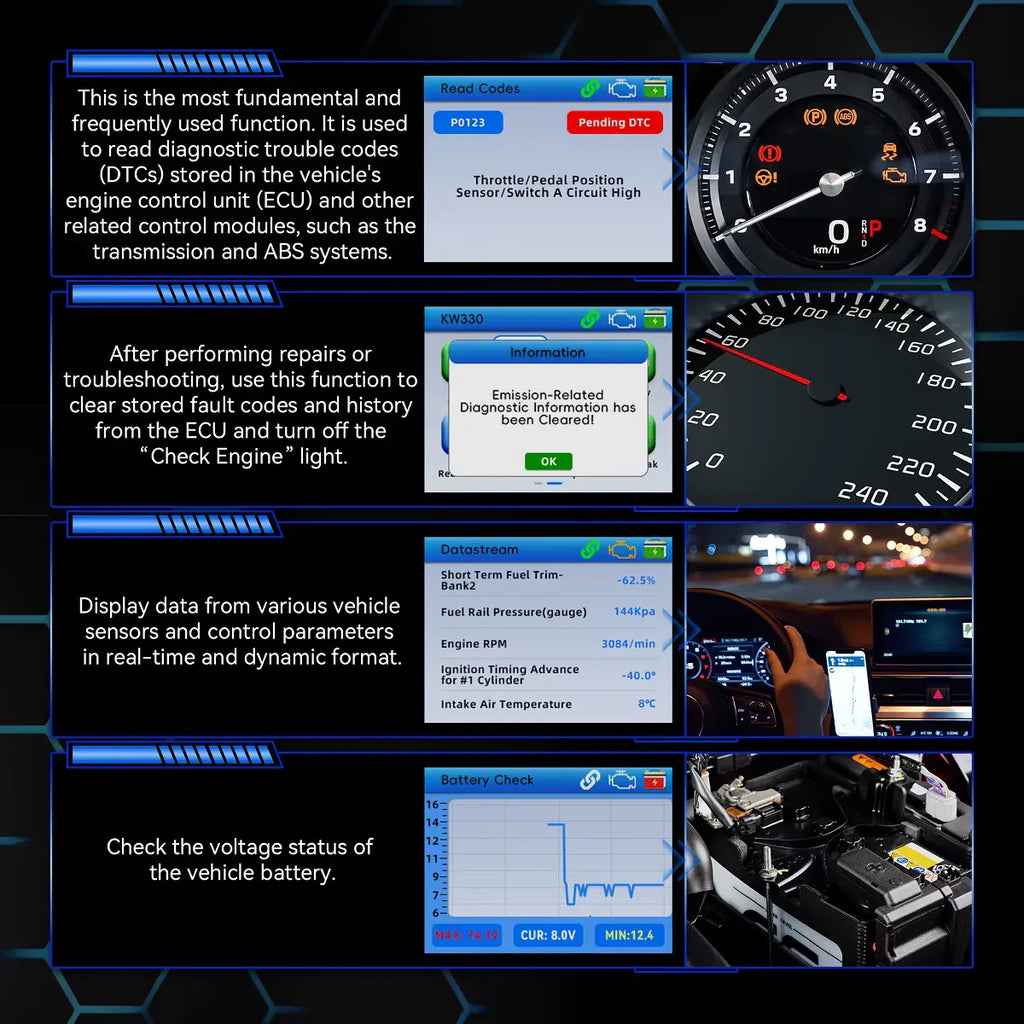

Reads and erases fault codes in the engine system (DTC)

The KW330 is designed to read and erase fault codes in the car's engine system. It can retrieve both generic and manufacturer-specific codes: generic P0, P2, P3, and U0 as well as manufacturer-specific P1, P3, and U1. After reading, you can see code definitions directly on the screen, reducing the need to search elsewhere. The function to erase codes can also turn off the Check Engine Light (MIL) and reset monitors (note that erasing does not "repair" the fault – it clears the fault memory and may require the car to be driven to verify status again).

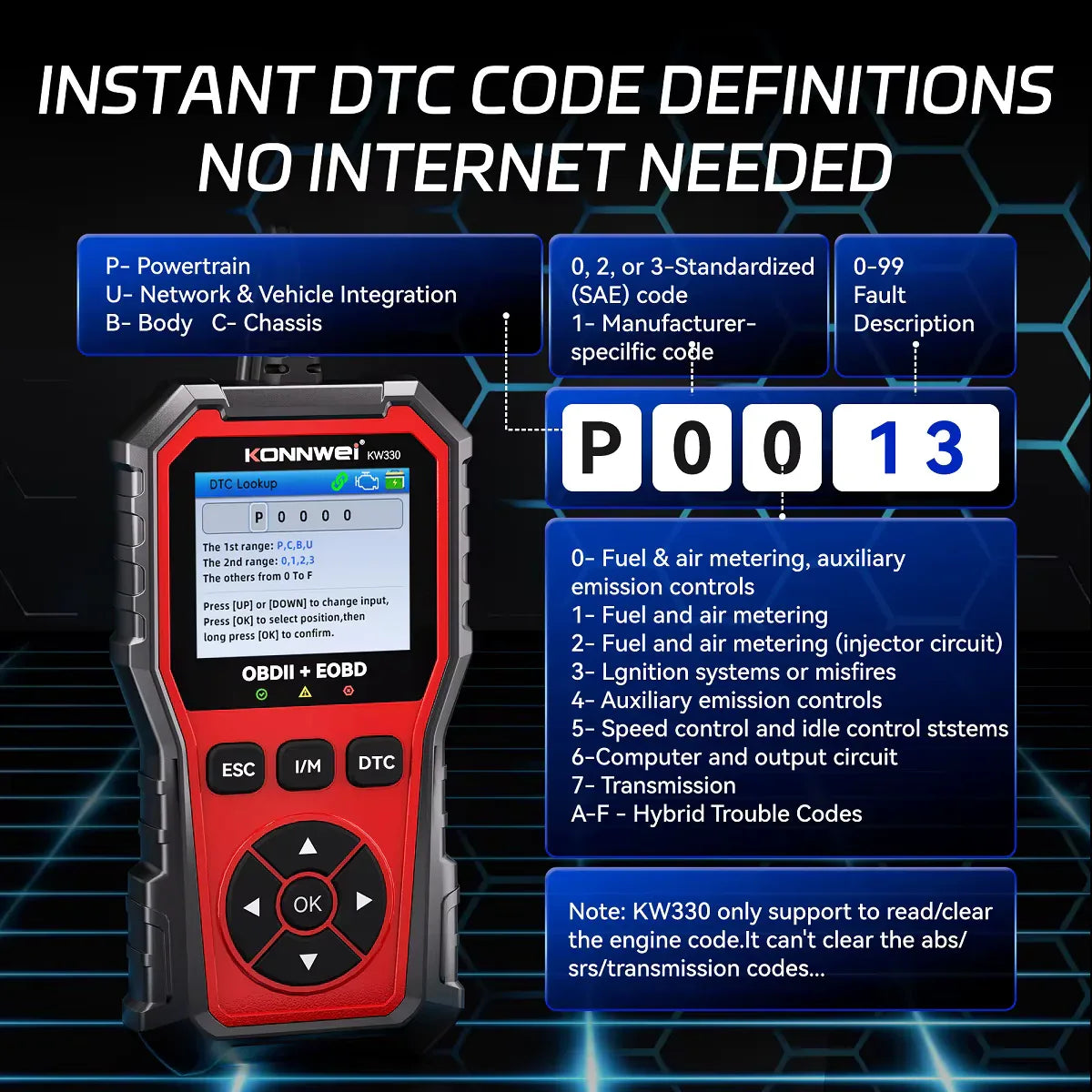

DTC lookup – built-in lookup library

The tool has a built-in OBD-II DTC lookup library, allowing you to look up codes and get an understandable explanation directly on the device. This is particularly practical if you want to make quick decisions: check a sensor, investigate a leak, or plan the next troubleshooting step.

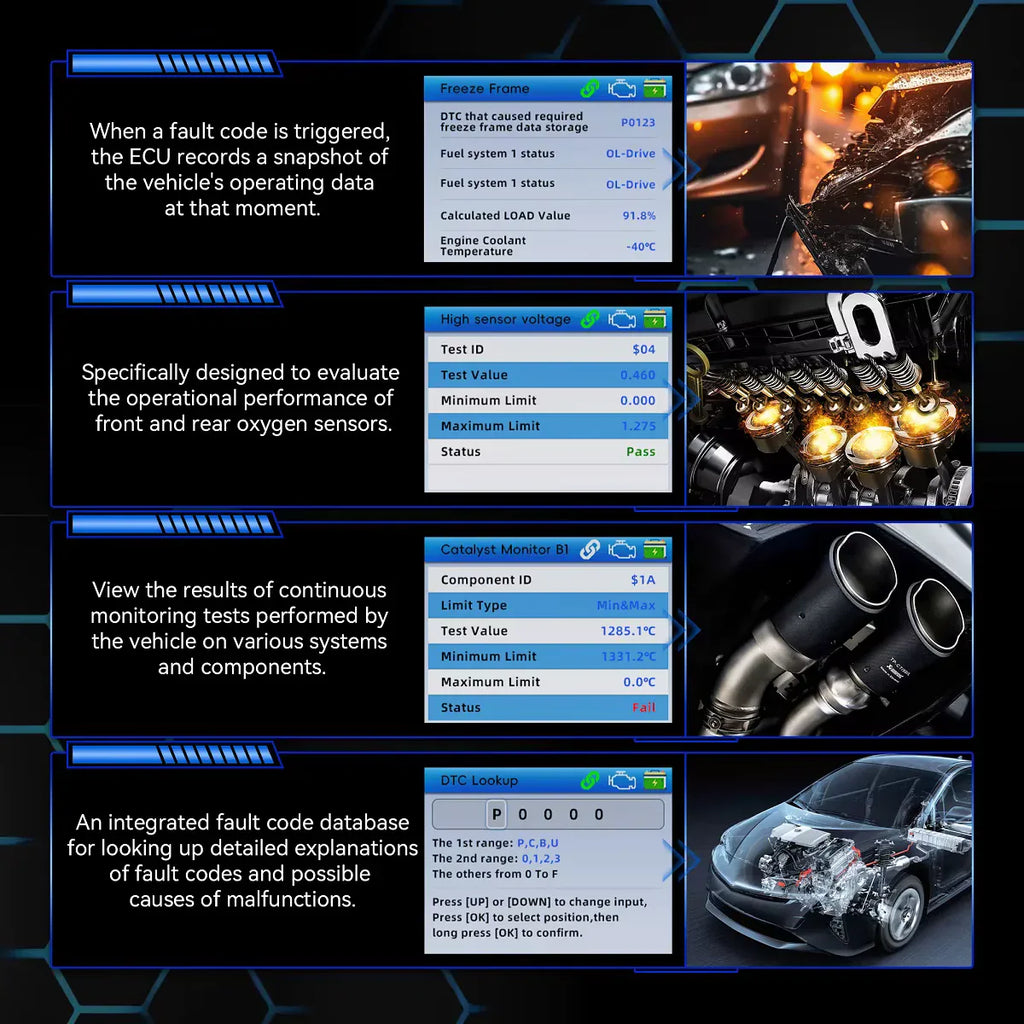

Freeze frame – view data when the fault occurred

When certain fault codes are registered, the car saves a "freeze frame" – a snapshot of operating values (e.g., temperature, RPM, load) from when the fault was detected. The KW330 can read freeze frame data so you can understand the context: does the fault occur during a cold start, under load, on the highway, or at idle? This type of information can save a lot of time compared to guessing.

Live datastream (PCM) – follow sensor data in real-time

The KW330 can read live PCM datastream and also reads live PCM datastream according to the function list. This means you can see real-time values from the engine's control system while the car is running. For troubleshooting, this is often crucial: you can see if a sensor is behaving reasonably, if values are jumping, or if something is outside the normal range. The tool can also read, store & playback live sensor data, which is practical if you want to compare before/after an action or analyze an intermittent problem.

Graph display of data (1996 and newer)

The KW330 can graph data (1996 and newer) according to the specification ("Graphs data C (1996 and newer)"). Graph display can make it easier to see trends and variations, such as how a sensor signal changes over time, instead of just reading numbers.

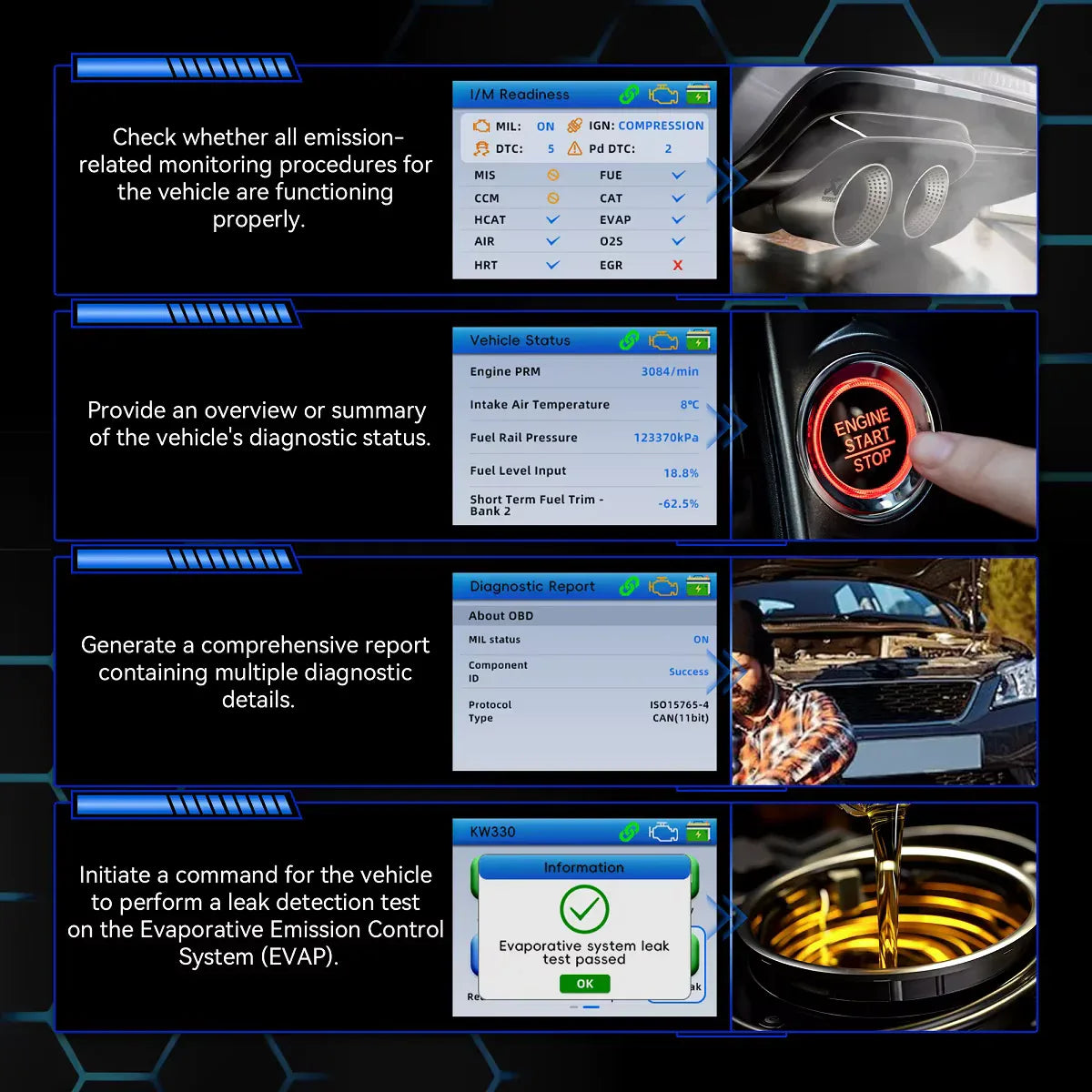

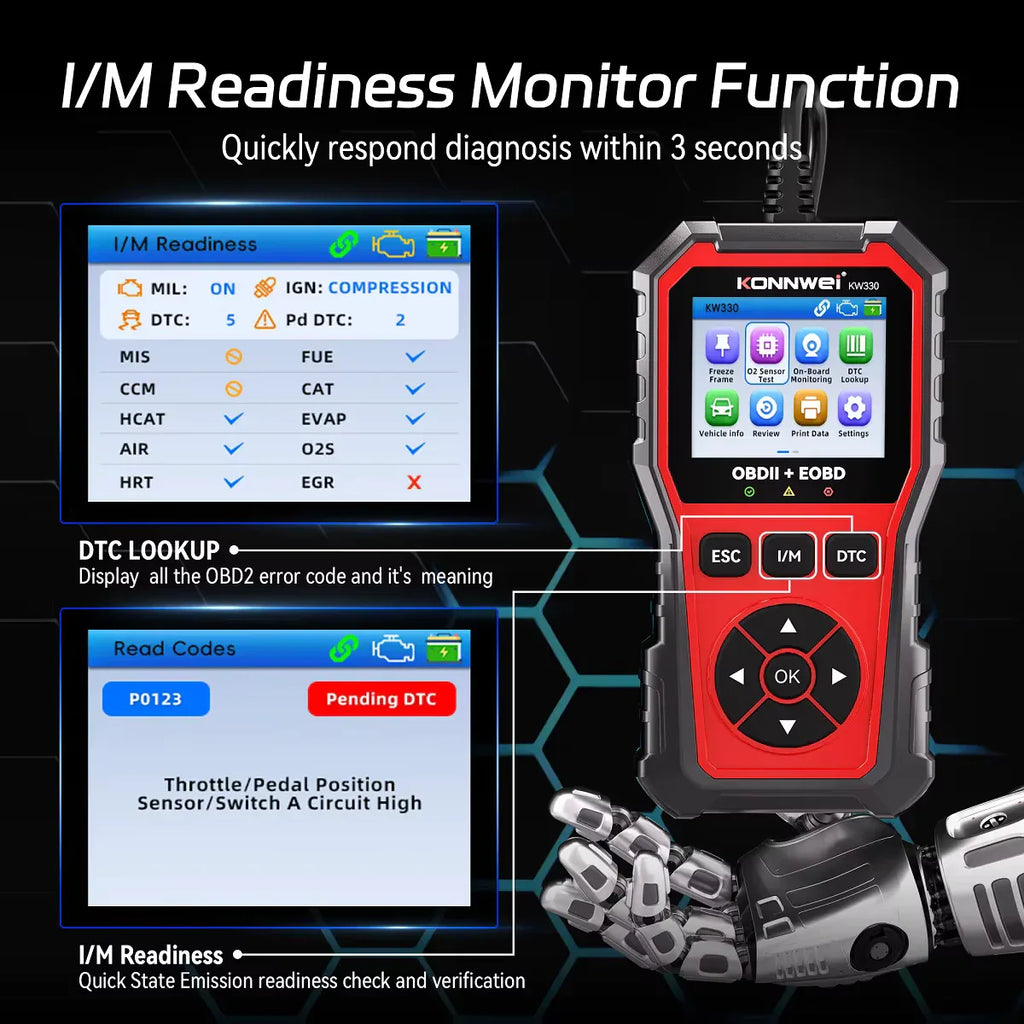

I/M readiness, emissions check, and drive cycle verification

For emissions-related checks, the KW330 Displays monitor and I/M readiness status (emissions) as well as Vehicle Emissions check / drive cycle verification. This helps you see if the car's OBD monitors are "ready" after repair or after fault codes have been cleared. This is particularly relevant when you want to avoid the car going for inspection with monitors that haven't completed their checks.

Pending codes – find problems before the light stays on constantly

The tool can Identify pending codes, meaning you can see codes that are about to become active but haven't yet triggered a permanent warning. This can be invaluable for intermittent faults: you get an early indication of what the control system is reacting to.

O2 sensor test and EVAP test

The KW330 can Display live O2 sensor test data and also has EVAP test according to the specification. These functions are often used when troubleshooting emissions-related problems, such as an inefficient catalytic converter, oxygen sensor deviations, or evaporative system faults (leaks/valves). Exact availability may vary between car models, as different vehicles expose different test modes via OBD.

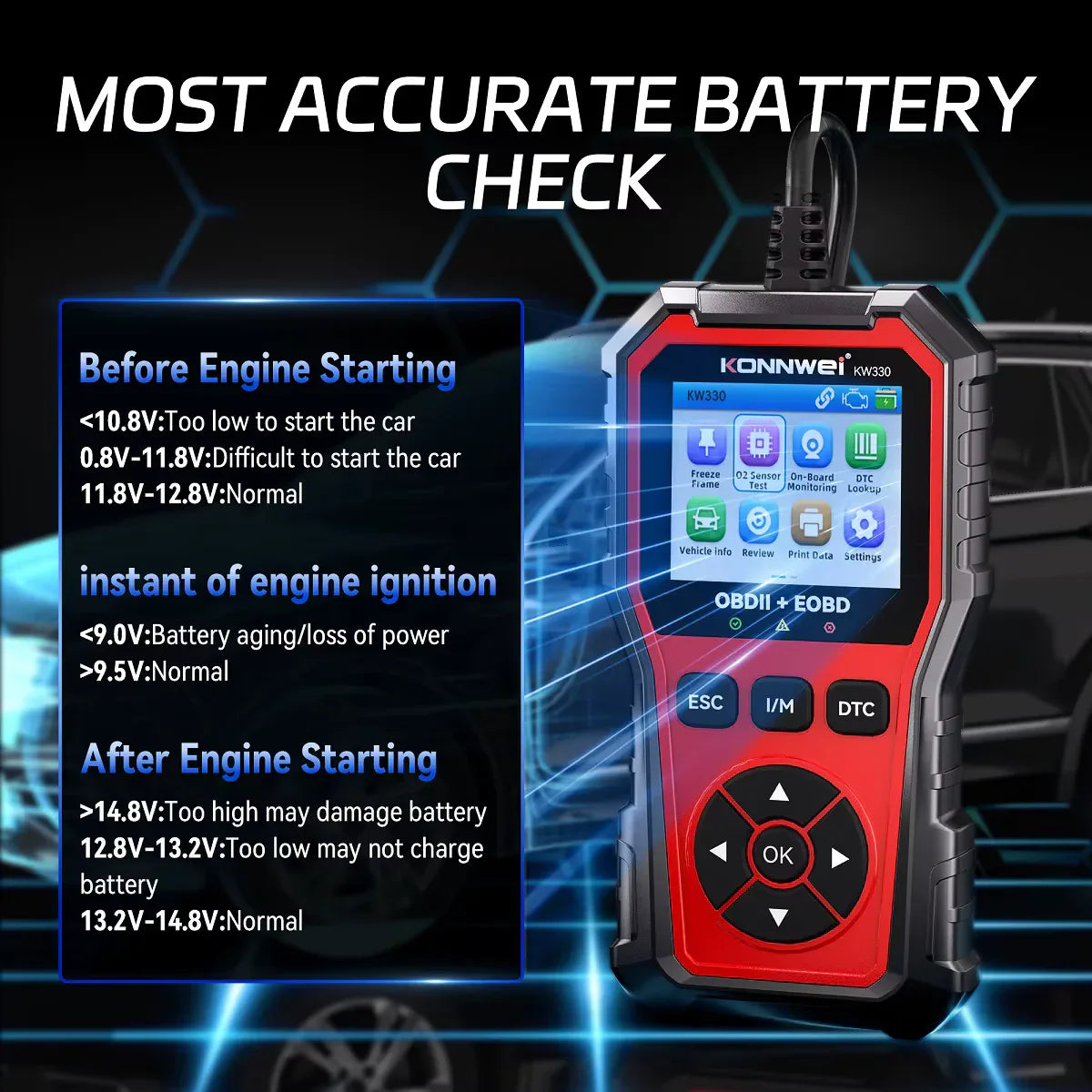

Battery check – quick check of battery voltage

The Battery check function allows for a quick indication of the battery's status/voltage via the tool (depending on how the car reports data). This is practical because low voltage can affect both starting problems and communication with control systems.

Modules present test

The KW330 can also Perform modules present test according to the function list. This function can help you see which modules/ECUs are present (to the extent the vehicle supports this via OBD). This can provide additional context during troubleshooting.

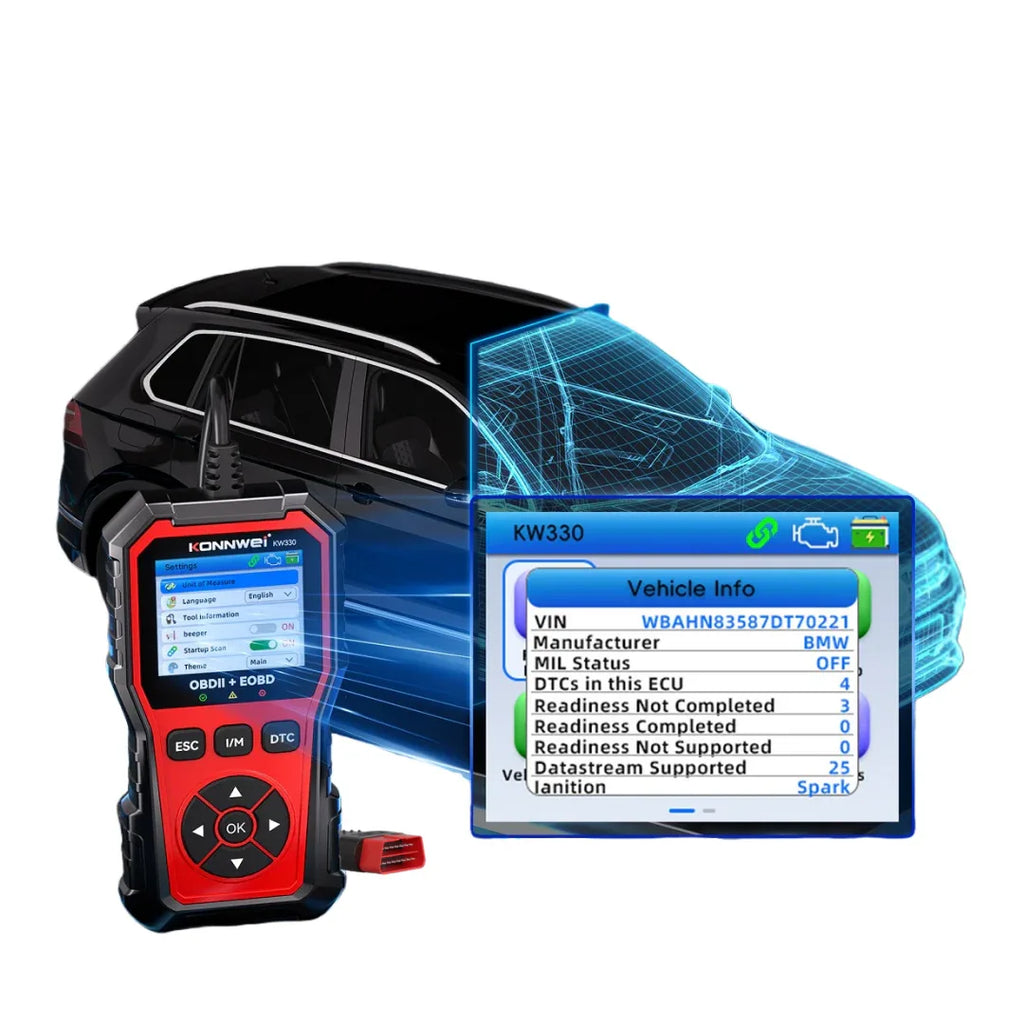

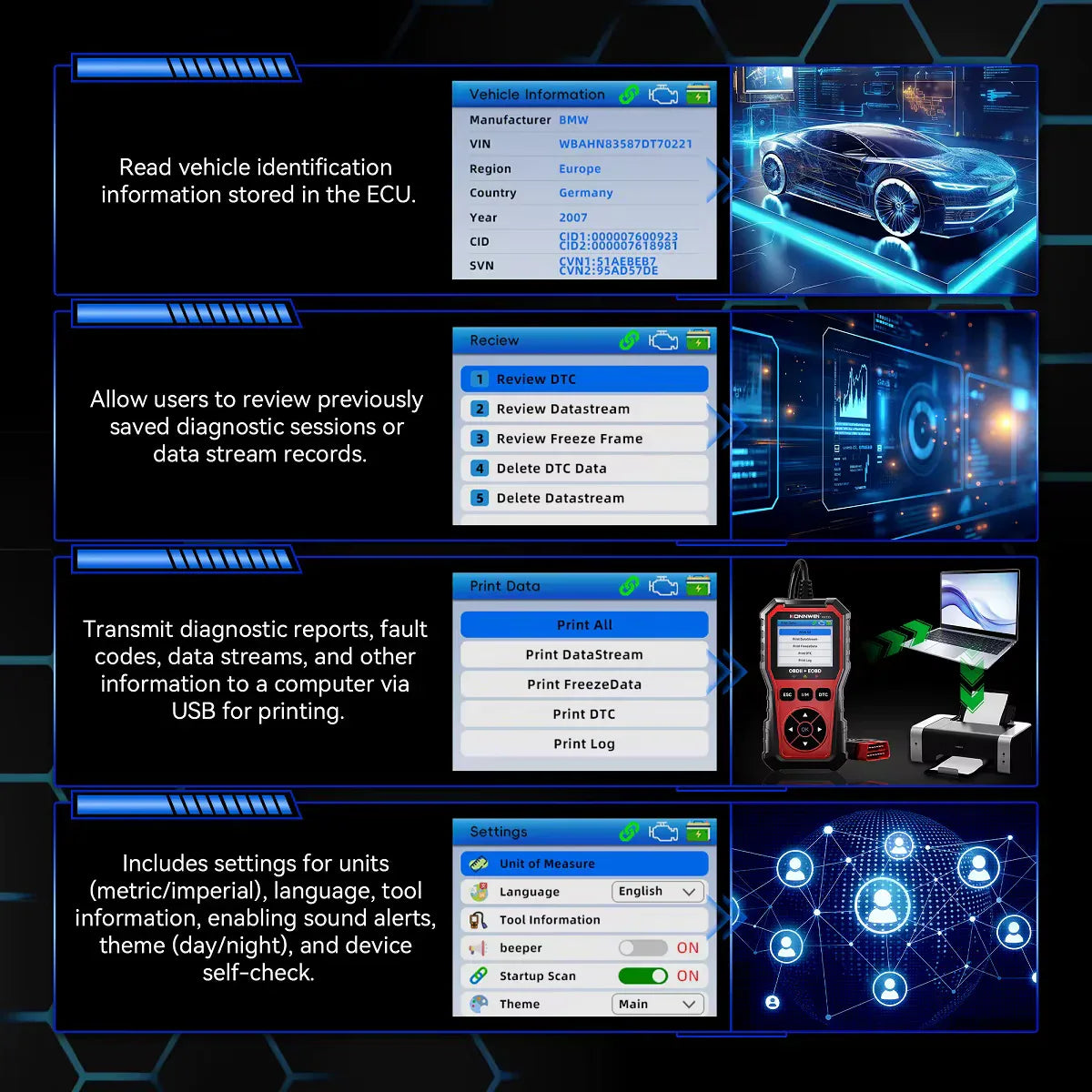

Vehicle information: VIN, CIN, and CVN

The tool can Retrieve vehicle information (VIN, CIN and CVN) and also has an option to read VIN. VIN is the car's chassis number (Vehicle Identification Number). CIN and CVN may appear on some vehicles as supplementary identification/calibration information. What information can actually be read depends on the car model and support level.

Support for CAN and other OBD-II protocols

The KW330 Supports CAN (Controller Area Network) and all other current OBD-II protocols. This means it can communicate with modern vehicles that use CAN, while also handling other OBD-II protocols found on OBD2-compliant vehicles.

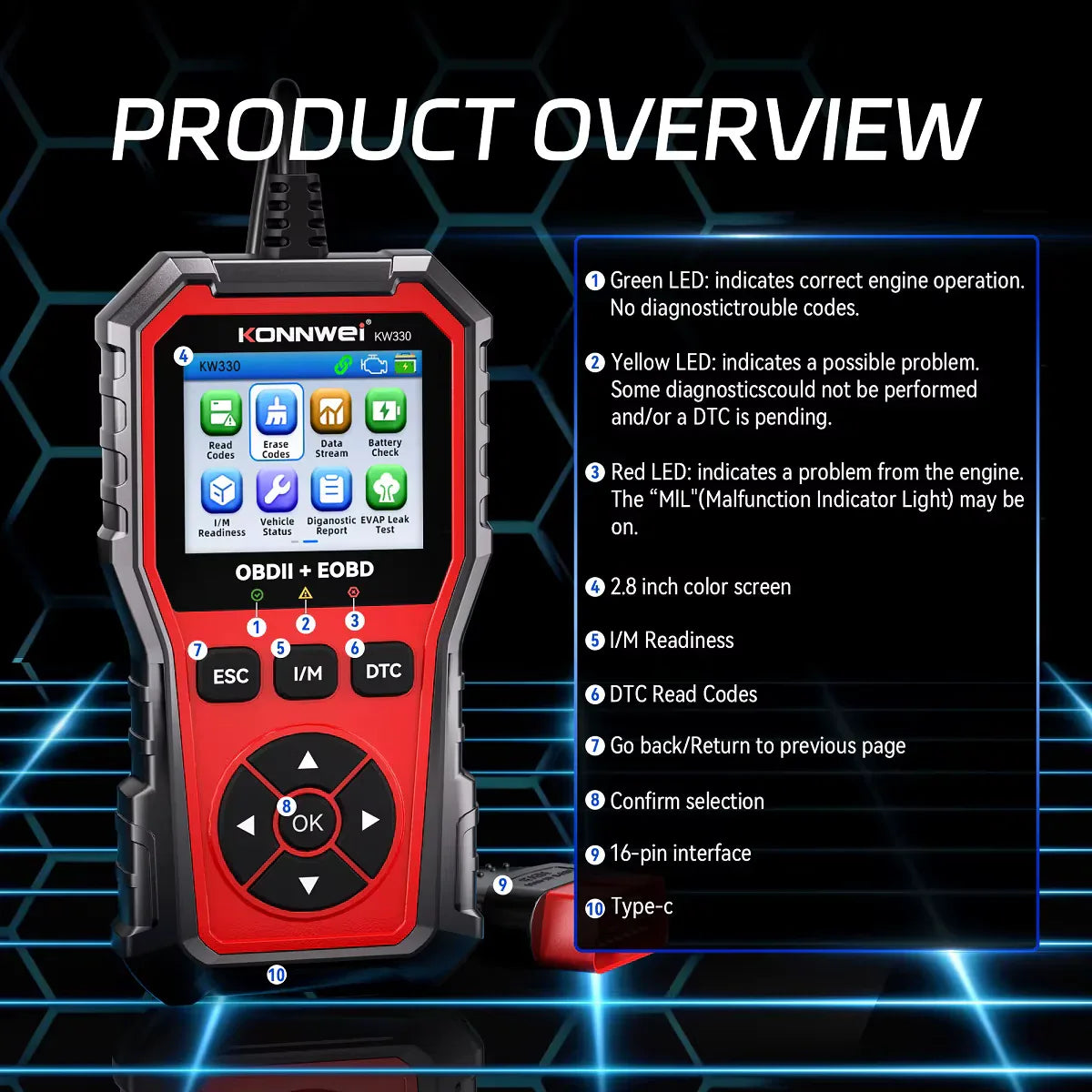

Large color screen and easy-to-read LCD

The tool has a 2.8" color screen (Large easy-to-read color LCD screen) making it easier to read codes and navigate menus in a workshop environment. The clear screen is particularly useful for live data, graph display, and when you want to quickly see monitor status.

Advantages – Why choose KONNWEI KW330?

• Quick path to the cause behind MIL: Read codes, view code definitions, and get a clearer troubleshooting start.
• More than just code reading: Live data, freeze frame, pending codes, and emissions monitors in one device.
• Emissions focus: I/M readiness and drive cycle verification help you after repair or code erasure.
• Practical for everyday use: 2.8" color screen and clear menu make it easy to use.
• Broad vehicle base: Works on 1996 and newer OBDII-compliant US/European/Asian vehicles (provided OBD2 support).
• Language support: 9 languages make it useful in mixed environments and for different users.
• Portable and cost-effective: A convenient solution when you want engine-related diagnostics without a computer.
• Data management: Can read, store & playback live sensor data and offer memory/backup for off-vehicle review.

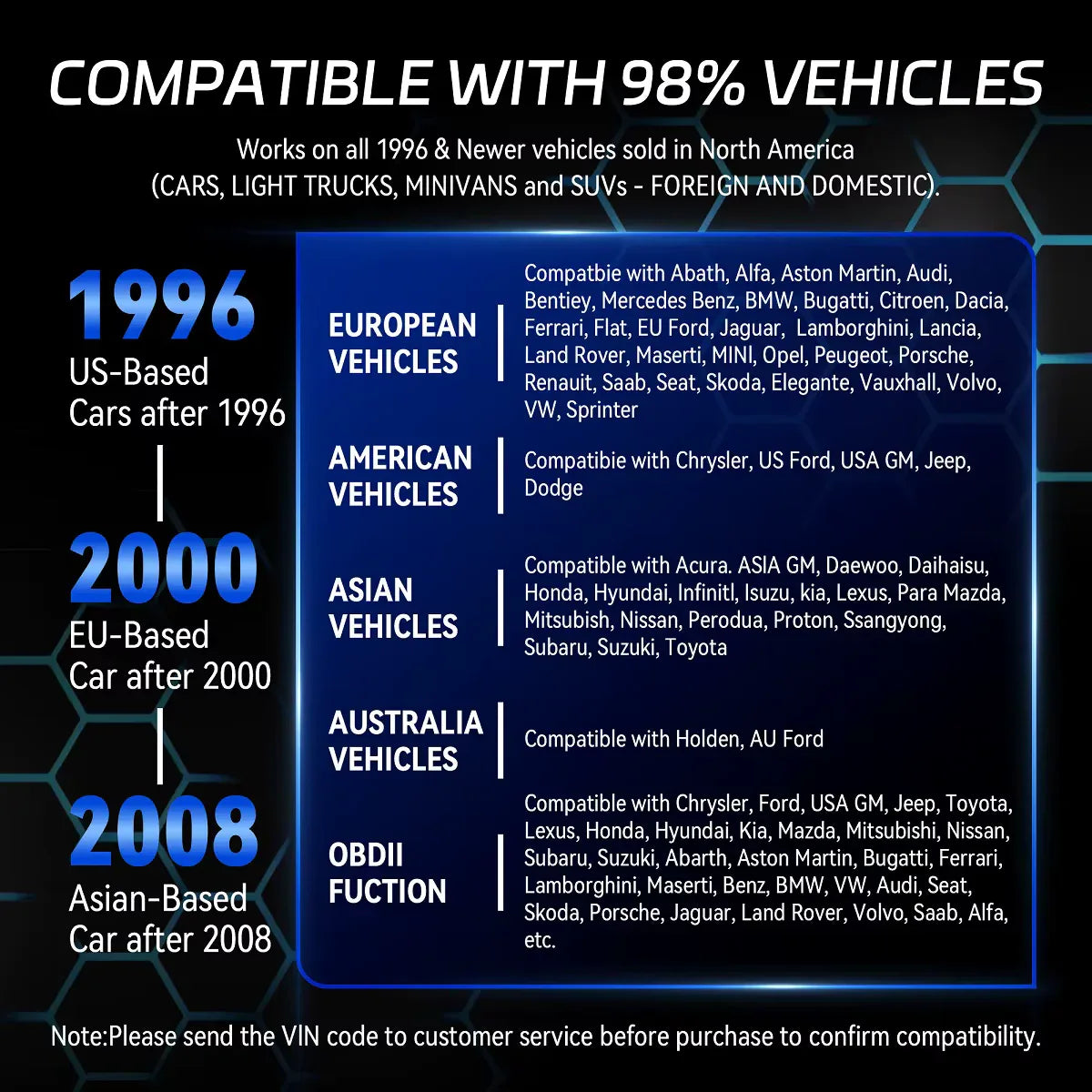

Compatibility – Which cars are compatible with the KW330?

According to product information, the KW330 works on all 1996 and newer OBDII-compliant vehicles from the US, Europe, and Asia, as well as on 12V cars where the OBD2 protocol is verified. This means the car needs to have an OBD2/EOBD system that is actually active and accessible via the car's diagnostic port.

It is important to know that OBD2 primarily standardizes communication for engine-related emissions and operating data. The KW330 is therefore primarily a tool for the Engine System. On many cars, you can read a lot of useful information about engine control, but other systems (e.g., ABS, airbag/SRS, comfort systems) may require brand-specific tools. Exactly which tests (O2/EVAP), what vehicle information (VIN/CIN/CVN), and which monitors are displayed depends on how each car model exposes data via OBD.

Tip: If you are unsure if your car is OBD2/EOBD compatible, check that it has a 16-pin OBD2 port and that OBD2 is active for your model year/market. For best results: test communication, read the VIN, and perform a quick I/M readiness check – this often provides a clear indication of the support level.

Manual & Installation Guide – Complete Step-by-Step (HTML)

Here's a beginner-friendly, complete guide on how to use the KONNWEI KW330 in practice. The steps are general and may differ slightly between car models but follow a safe and efficient workflow: connection, code reading, interpretation, freeze frame check, live data, emissions status, tests, and code erasure.

1) Preparations before connecting the KW330

1. Park safely: Park the car on a flat surface, engage the parking brake, and ensure the gear is in P (automatic) or neutral (manual).
2. Check battery/voltage: Low battery voltage can affect OBD communication. If the car is hard to start, charge the battery first.
3. Locate the OBD2 port: The 16-pin OBD2 port is usually under the dashboard near the driver's seat, sometimes behind a small cover.
4. Turn off unnecessary consumers: Turn off lights, AC, and other major consumers if you are troubleshooting with low voltage.

2) Connection – plug into the car's 16-pin OBDII

1. Insert the KW330 into the car's 16-pin OBD2 port firmly.
2. Turn on the ignition: Start the ignition according to the car's mode (often "ignition on, engine off" for reading). For live data, you often need the engine running.
3. Wait for initialization: The KW330 will start and establish communication with the car's OBD system.

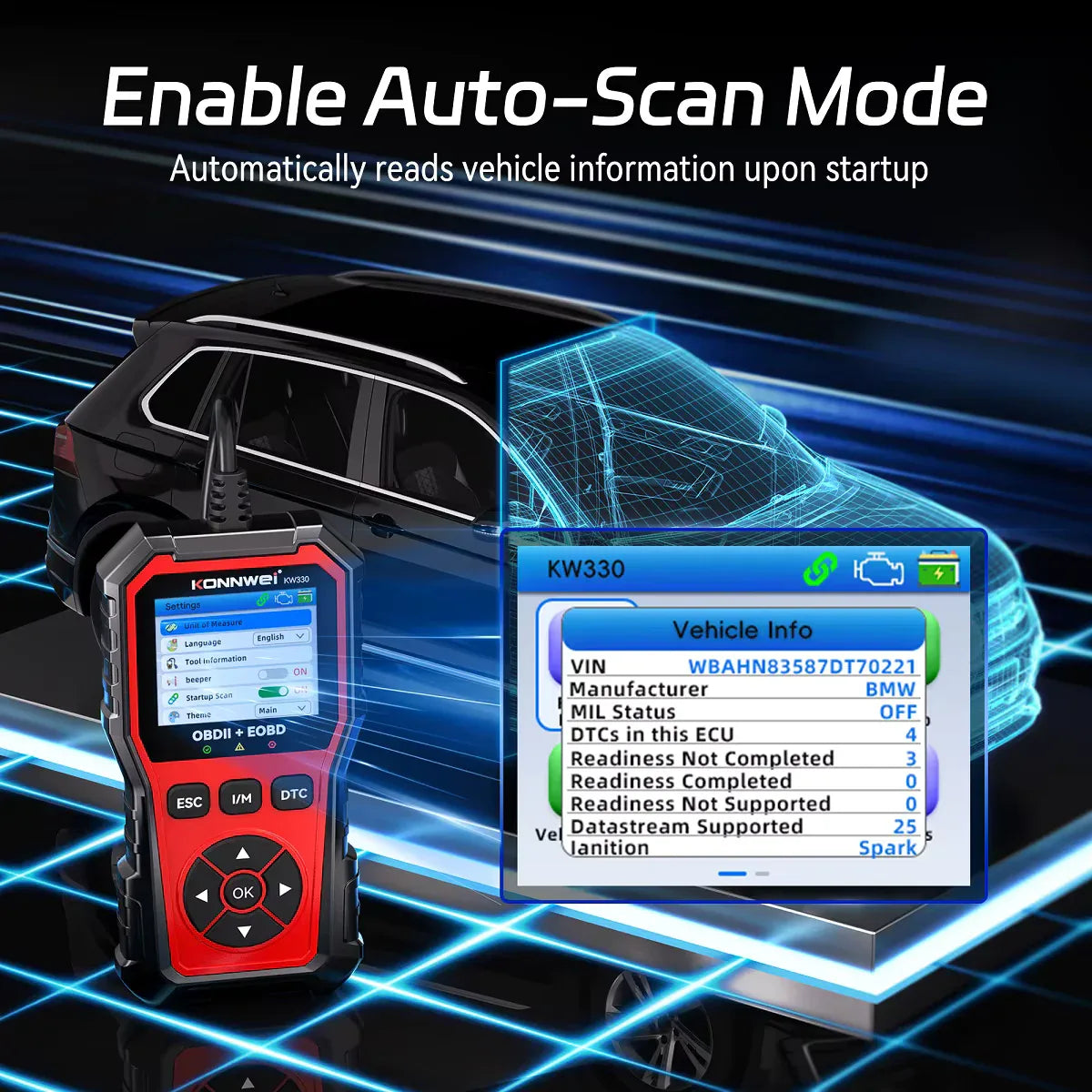

3) Quick check: Read vehicle information (VIN/CIN/CVN if supported)

1. Select the menu option for Vehicle Information or equivalent.
2. Read the VIN and check that communication is working.
3. If the tool displays CIN and CVN, note these if needed (e.g., for documentation or comparisons).

4) Read fault codes (DTC) – active and pending

1. Select Read Codes or equivalent in the menu.
2. Note active fault codes and their descriptions.
3. Then go to Pending Codes to see codes that are about to become active.
4. Document: Write down the codes (e.g., P0xxx/P1xxx) before making changes.

Important: Do not erase codes directly unless you have first saved them and understood the context. The codes are often your best clue for where to start troubleshooting.

5) DTC lookup – look up and interpret the code

1. Select the code from the list and use DTC lookup / code definition on the screen.
2. Read the description and note whether the code is generic (P0/P2/P3/U0) or manufacturer-specific (P1/P3/U1).
3. Determine the next step: visual inspection, measurement, test drive, or more data via freeze frame/live data.

6) Read freeze frame data – understand when the fault occurred

1. Select Freeze Frame in the menu.
2. Review the operating values saved at the moment the fault occurred.
3. Note relevant patterns: cold engine vs. warm engine, high load, idle, acceleration, etc.

7) Live data/PCM datastream – follow values in real-time

1. Start the engine if necessary to get relevant live data.
2. Select Live Data or PCM Datastream.
3. Select the parameters you want to see (e.g., temperature, RPM, fuel trim, sensor data – depending on what the car supports).
4. Optionally use graph display to see trends and variations over time.
5. If you need to compare: use the option to store and playback live data (when the function is used in the device).

8) O2 sensor test – check oxygen sensor-related data

1. Select O2 Sensor Test in the menu.
2. Follow the instructions and read out the O2-related test data reported by the car.
3. Use the results as support along with fault codes, live data, and freeze frame.

9) EVAP test – check the evaporative system

1. Select EVAP Test in the menu.
2. Start the test if the car supports EVAP functions via OBD.
3. Note whether the test can be performed or if the car requires specific conditions (e.g., temperature, fuel level, drive cycle).

10) I/M readiness & drive cycle verification – is the car "ready"?

1. Select I/M Readiness.
2. Check monitor status (emissions). See which monitors are complete and which are not.
3. Use drive cycle verification as support to see if the drive cycle/readiness seems fulfilled after action or after code erasure.

Practical advice: After you have cleared fault codes, monitors can often become "Not Ready" until the car has been driven in a certain drive cycle. This is normal and does not automatically mean something is wrong.

11) Battery check – quick indication

1. Select Battery Check if the menu offers this for your vehicle.
2. Note the voltage value/indication and assess if the car needs charging or further testing.

12) Modules present test – check for present modules (if the vehicle supports it)

1. Select Modules Present Test.
2. See which modules are reported as present via the OBD function (support level varies).

13) Erase fault codes & reset monitors – when you are ready

1. Ensure you have documented the codes and performed the necessary checks.
2. Select Erase Codes.
3. Confirm erasure. The Check Engine Light (MIL) may turn off and monitors may reset.
4. Start the car and check if codes reappear immediately or after a test drive.

Important: If the fault persists, codes often return. Deletion is a step in diagnosis/remedy, not a repair in itself.

14) Exit and save your results

1. Check if any codes remain or return as “pending”.
2. Save/note relevant values, especially if you plan further troubleshooting.
3. Unplug the device only when you are finished and turn off the ignition if you don't need more data.

Tips & advice – how to get better troubleshooting results

• Always read codes before clearing: Document DTCs, freeze frame, and readiness. This makes troubleshooting faster and more accurate.
• Combine data: A fault code + freeze frame + live data often provides a clearer picture than just a code text.
• Think in symptoms and causes: A code often points to an area (sensor/circuit/system), not always a "defective part".
• Check pending codes: Intermittent faults often appear there before becoming permanent.
• Use readiness after repair: After repair and code clearing – check I/M readiness to ensure monitors are working as they should.
• For emission faults: EVAP and O2 tests can be helpful, but often require the car to meet certain conditions.
• Stable power: For extensive troubleshooting – make sure the battery is charged for stable communication.
• Remember the tool's focus: The KW330 is primarily for engine systems/OBD2 data. For ABS/SRS/body functions, other tools may be required.

Frequently Asked Questions (FAQ)

1) What is the KW330?

The KW330 is a portable OBD2/EOBD fault code reader and engine diagnostic tool (Enhanced Handheld Automotive Engine Analyzer) for 12V cars with verified OBD2 support.

2) Which cars does it work with?

According to the information, it works with 1996 and newer OBDII-compliant US, European, and Asian vehicles, as well as 12V cars where the OBD2 protocol is verified.

3) Can it turn off the check engine light (MIL)?

Yes. The KW330 can clear fault codes and thus often turn off the Check Engine Light (MIL). If the fault persists, the light will usually return after some time or driving.

4) Which fault codes can it read?

It can read generic codes P0, P2, P3, and U0, as well as manufacturer-specific codes P1, P3, and U1 according to the function list.

5) What does DTC mean?

DTC stands for Diagnostic Trouble Code – a fault code that the car's control system saves when it detects an anomaly.

6) Does it have code descriptions in the unit?

Yes. It can display DTC definitions and has a built-in DTC lookup library (OBD-II DTC lookup library).

7) What is freeze frame?

Freeze frame is saved operating values from when the fault was registered. The KW330 can read this data and help you understand the conditions under which the fault occurred.

8) Can it display live data?

Yes. It can read live PCM datastream and also read, store, and play back live data (live sensor data) when the function is used in the unit.

9) Can it show pending codes?

Yes. It can identify pending codes, which are codes that have not yet become permanent but that the system has detected.

10) What is I/M readiness?

I/M readiness shows the status of emission monitors. It helps you see if the car is "ready" after repair or after code clearing.

11) What is meant by drive cycle verification?

It refers to checking/verifying the drive cycle/readiness of emission monitors – whether the car has driven enough for the monitors to complete.

12) Does it have O2 sensor test?

Yes. The KW330 can display live O2 sensor test data when the car supports this via OBD.

13) Does it have EVAP test?

Yes, EVAP test is listed. The level of support and execution depends on the car model and conditions.

14) Can it read VIN?

Yes. It can read VIN and can also retrieve vehicle information (VIN, CIN, and CVN) when the vehicle supports it.

15) What are CIN and CVN?

These are vehicle-related identification/calibration information that some vehicles can report via OBD. Not all cars display this.

16) Does it support CAN?

Yes. It supports CAN (Controller Area Network) and other current OBD-II protocols.

17) Can it be used on 24V vehicles?

It is specified for 12V. For 24V systems, other solutions are normally required.

18) Can it diagnose ABS/airbag?

The KW330's main focus is the engine system and OBD2-related diagnostics. For ABS/SRS and other brand/system-specific functions, a different tool may be needed.

19) Are there multiple languages?

Yes. It supports 9 languages: English, French, German, Dutch, Spanish, Russian, Portuguese, Italian, Polish.

20) What do I do if it doesn't connect to the car?

Check that the ignition is on, that the OBD2 port is working, that the car is actually OBD2-verified, and that the battery voltage is stable. Try reading the VIN as a first step.

Package Contents – what's included

Exact contents may vary depending on package/delivery. Always check your delivery against the packing slip/product list. Usually includes:

• KONNWEI KW330 diagnostic tool (OBD2/EOBD)
• Quick guide or user manual (printed or digital, depending on delivery)

Disclaimer & important notes

• Functions may vary: OBD2 data, EVAP/O2 tests, VIN/CIN/CVN, and monitor status depend on the car model, year, and how the vehicle supports OBD2 functions.
• Clearing is not repair: Clearing fault codes can turn off the MIL, but if the root cause remains, the fault will often return.
• System scope: The KW330 is primarily intended for the Engine System and OBD2-related functions. Other systems may require brand/system-specific tools.
• Safety: Never perform tests or handle vehicles in dangerous traffic situations. During test drives: follow applicable regulations and use safe methods.
• 12V: The product is specified for 12V vehicles.
• Certifications: The product is listed with CE, RoHS, FCC, and ISO, but always check documentation/labels on your device if needed.

Summary – KW330 as an OBD2 fault code reader with color screen

The KONNWEI KW330 is a portable and practical OBD2/EOBD fault code reader for 12V cars with verified OBD2 support, developed as a clear upgrade from simpler code readers. It works with the engine system and offers a complete package of functions: reading and clearing fault codes, displaying code definitions on screen, reading freeze frame, finding pending codes, monitoring live PCM datastream, graphically displaying data (1996 and newer), checking I/M readiness and emission status, and performing O2- and EVAP-related tests when the vehicle supports it. With a 2.8" color screen, built-in DTC lookup library, ability to read VIN (and with support CIN/CVN), memory/backup functions, and support for CAN and other OBD-II protocols, the KW330 is a strong choice for anyone who wants to troubleshoot the check engine light faster and more structured – at home in the garage or in the workshop's daily workflow. ✅
