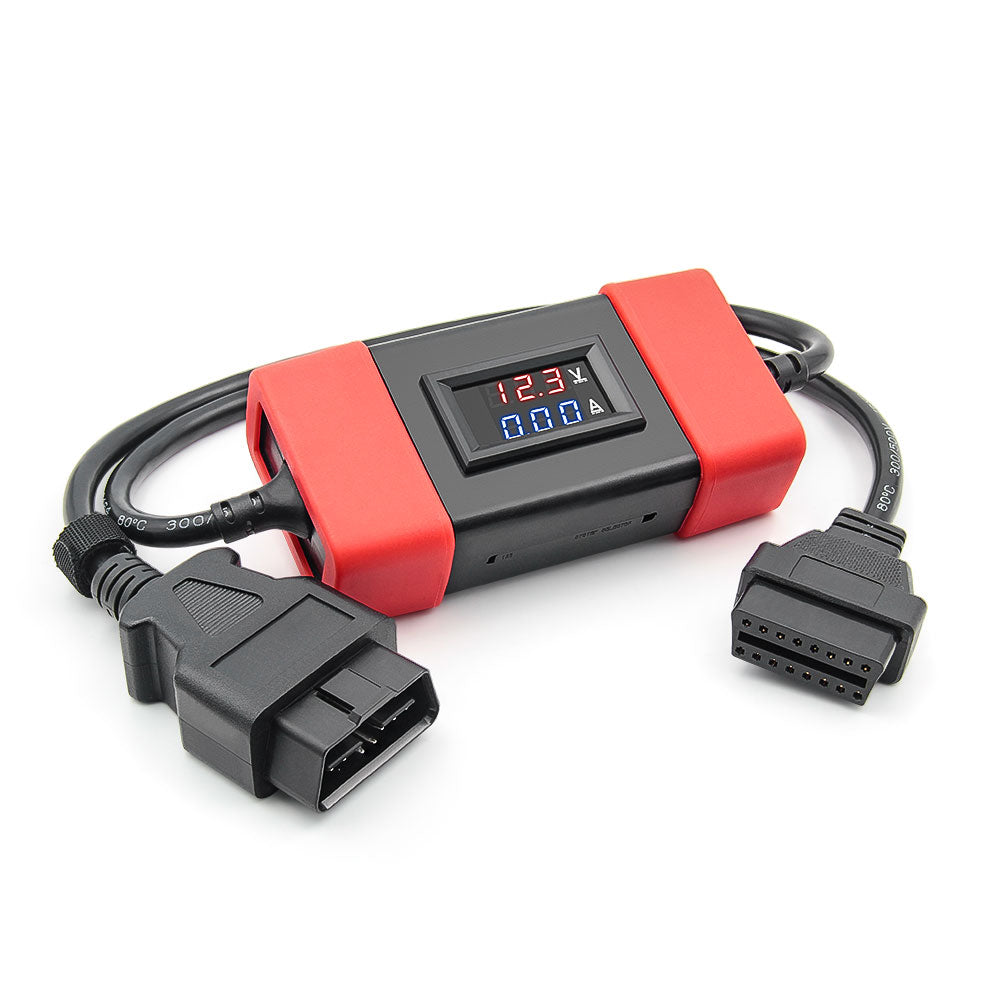

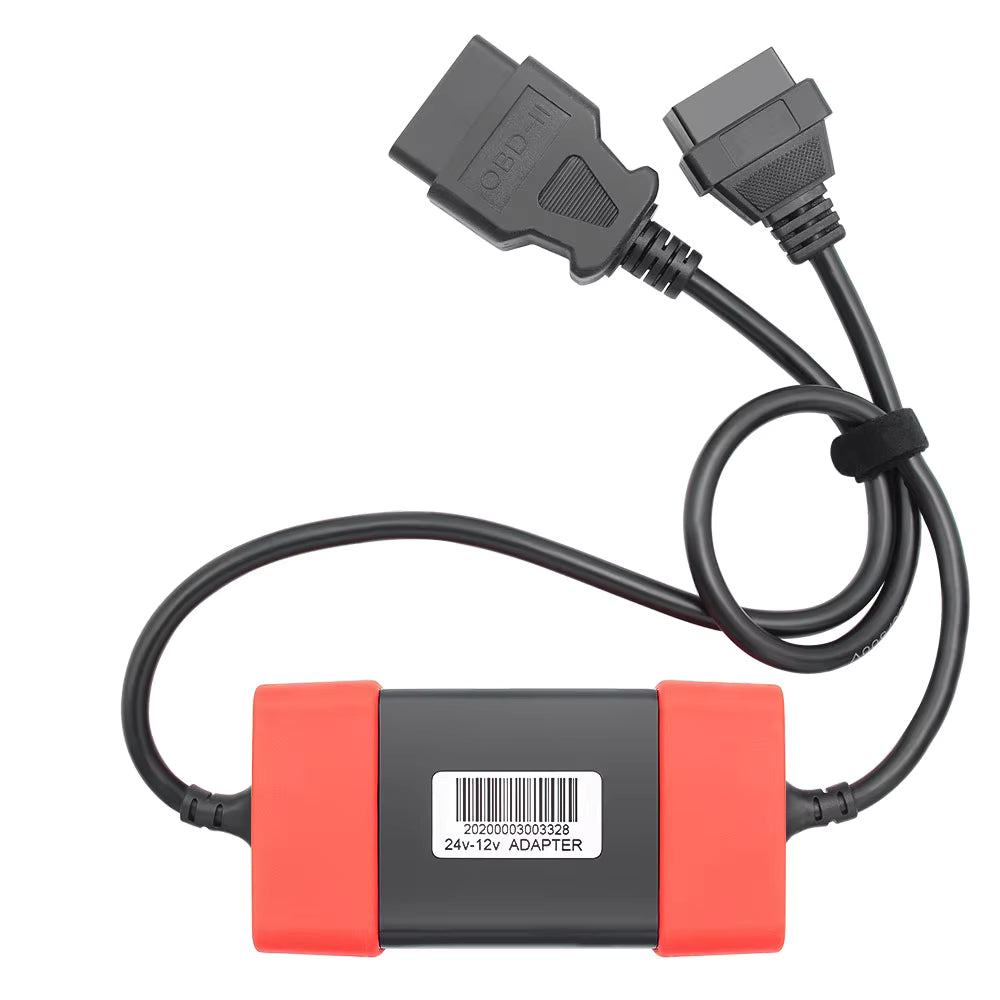

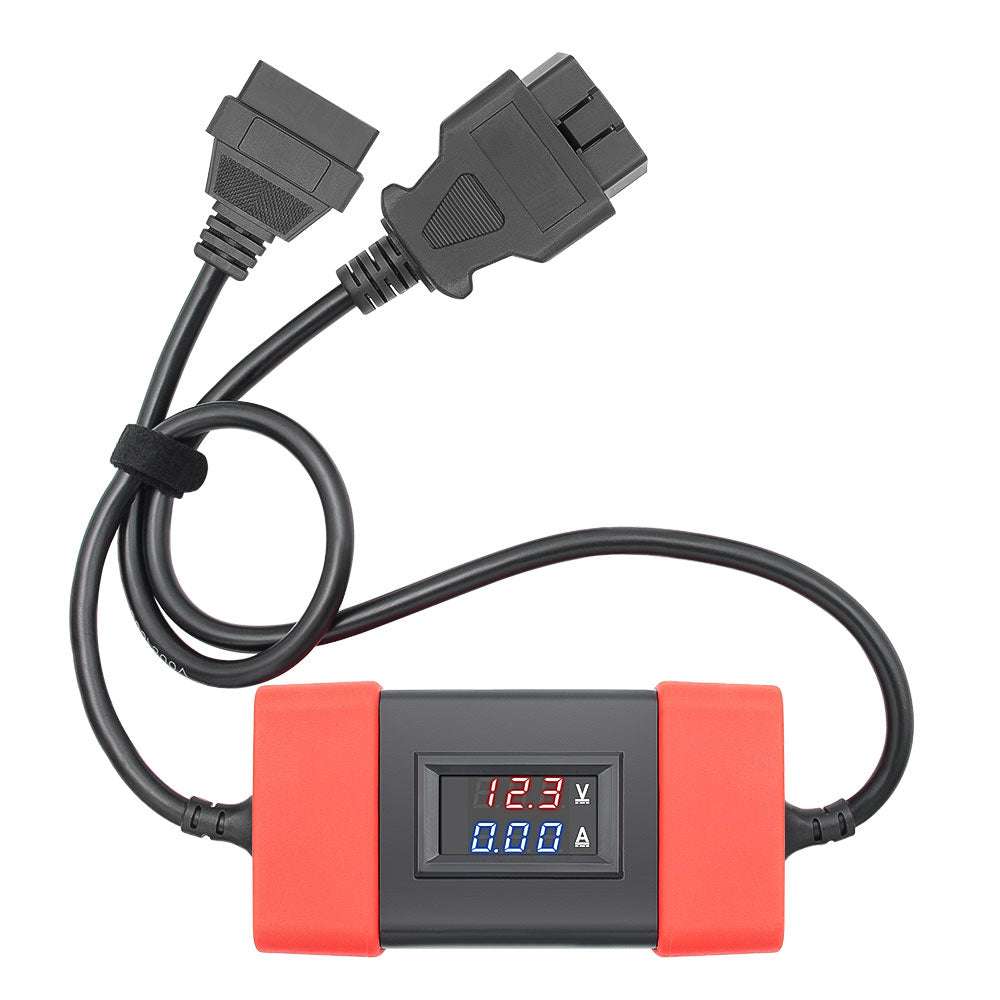

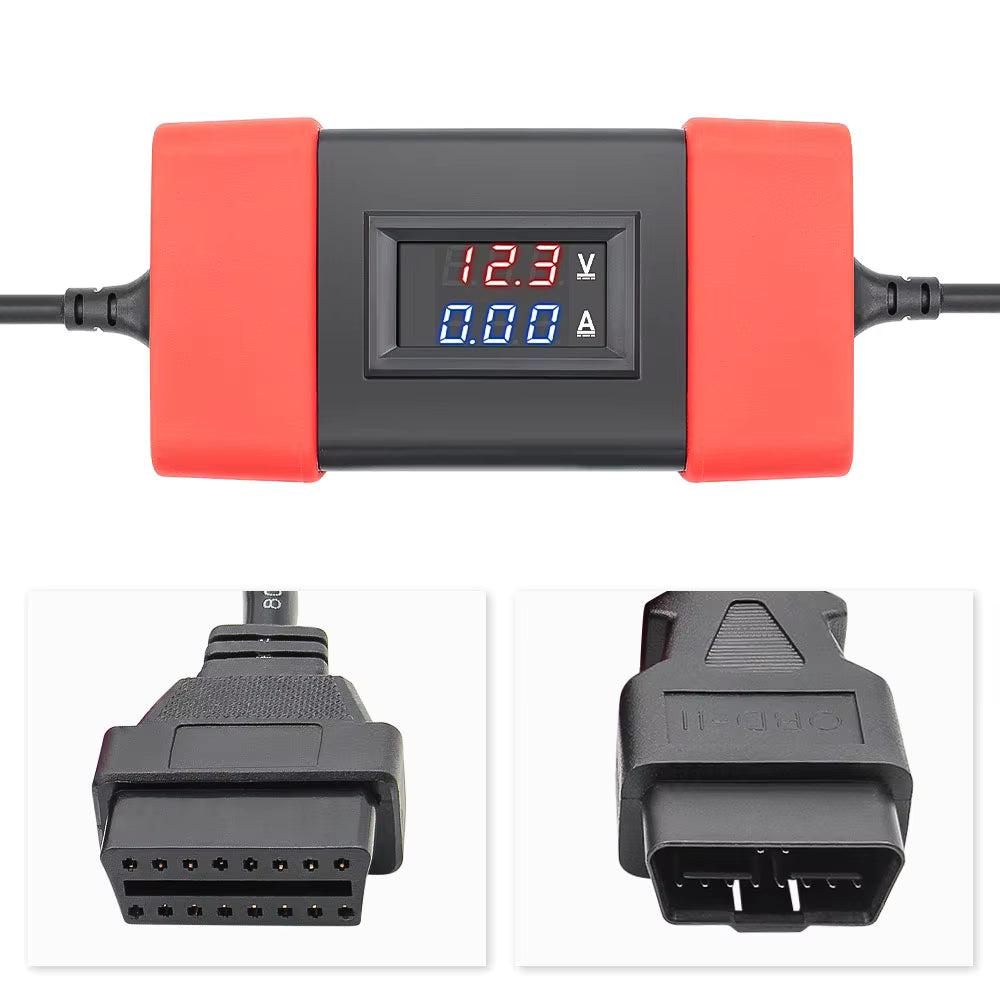

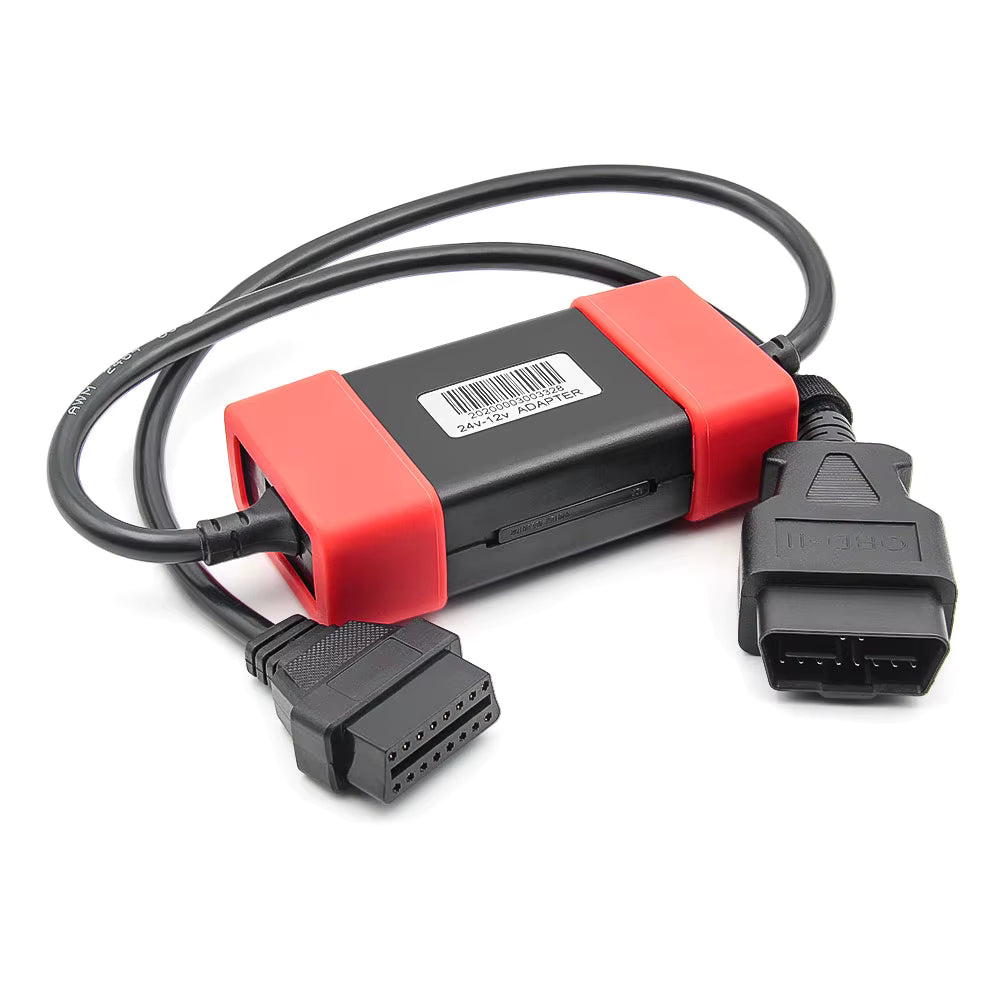

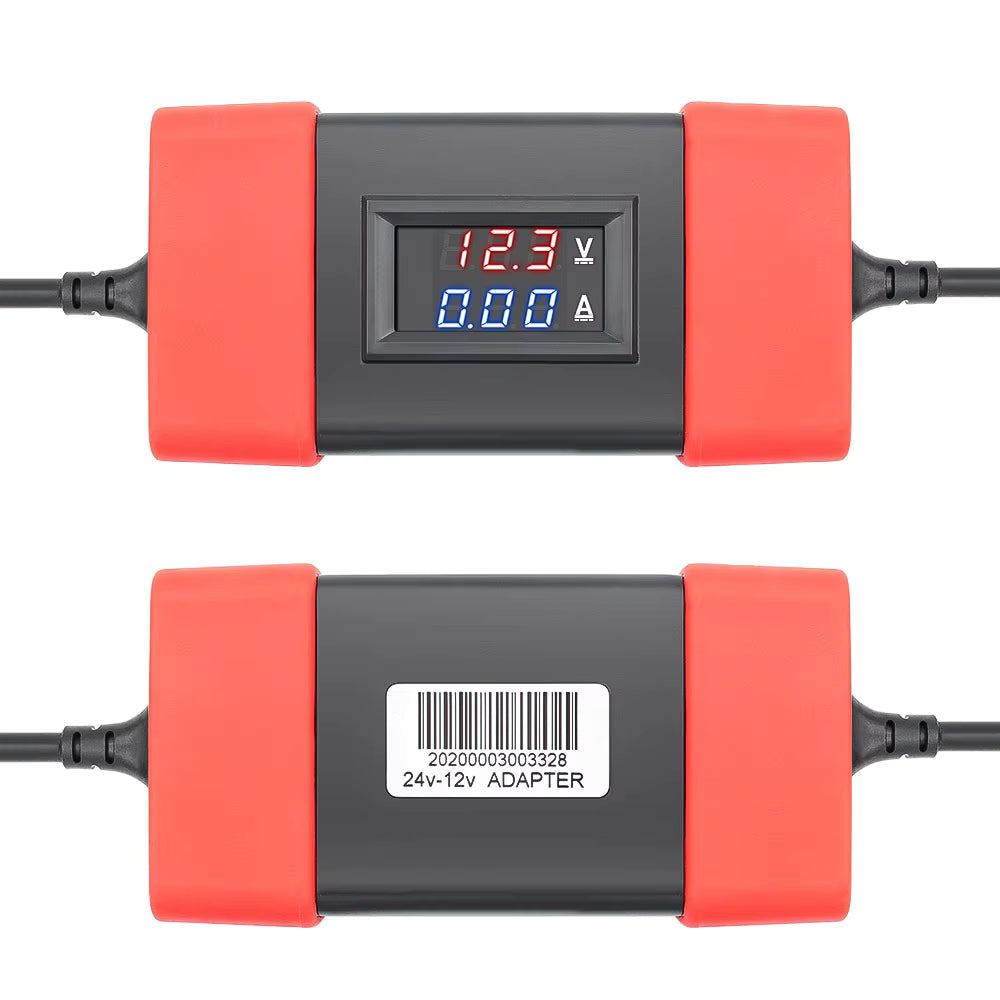

24V → 12V OBD2 Adapter Cable for Truck/Diesel – for diagnosis with 12V OBD2 Scanners

Short Version

This Heavy Duty diesel truck adapter cable is a practical tool when you need to connect a 12V OBD2 diagnostic device to a vehicle with a 24V electrical system (e.g. many heavy-duty diesel cars and trucks). The cable functions as a 24V to 12V converting adapter for diagnosis and is designed to enable a safer and more compatible connection for your OBD2 scanner, while also being able to read signals from the ECU according to the product text.

It is stated to work with several popular 12V diagnostic platforms, such as Launch X431 EasyDiag 2.0/3.0, GOLO, and also the ThinkDiag OBD2 Scanner (according to product information). This makes it extra useful for workshops and technicians who already own a 12V scanner but sometimes need to troubleshoot 24V vehicles in a fleet/transport context.

The construction is described as lightweight and portable and made of high-quality PVC with good tensile strength, which reduces the risk of cable breakage in a workshop environment. The product is marketed as an “auto repair accessory” that simplifies diagnostics and repair on heavy-duty vehicles. A line in the specification mentions “Include Protocol Transmit”, which can be interpreted as it being designed to forward diagnostic communication/protocols between the vehicle and the 12V tool.

• Function: converts 24V → 12V for diagnosis
• For: 24V diesel/truck, use 12V OBD2 scanner
• Compatible with: Launch X431 EasyDiag 2.0/3.0, GOLO, ThinkDiag (according to text)
• Material: PVC
• Type: OBD2 scanner adapter cable / connector

What is a 24V→12V OBD2 Adapter Cable?

Many heavy-duty vehicles have 24V electrical systems. However, many consumer and "passenger car" diagnostic tools are designed for 12V. This cable allows you to use a 12V OBD2 scanner for diagnosis on 24V vehicles by converting the voltage and simultaneously forwarding diagnostic signals (according to the product text).

When do you need it?

• When connecting a 12V OBD2 tool to a truck or diesel vehicle with 24V.
• When you want to simplify diagnosis in a mixed fleet (both 12V and 24V).
• When you want to avoid feeding a 12V tool with 24V.

Compatibility (tools)

According to the product information, the cable can be used with:

• Launch X431 EasyDiag 2.0
• Launch X431 EasyDiag 3.0
• GOLO
• ThinkDiag OBD2 Scanner

Note: Compatibility may also depend on the vehicle and the protocol/diagnostic system used. The cable handles the voltage level, but diagnostic support depends on the scanner and vehicle.

Step-by-step: how to use the cable

1. Turn off the vehicle's ignition.
2. Connect the adapter cable to the vehicle's diagnostic port.
3. Connect your 12V OBD2 scanner to the OBD2 end of the cable.
4. Turn on the ignition (ON) and start diagnosis in your app/tool.
5. Read fault codes/live data according to your scanner's instructions.
6. Disconnect in reverse order when you are done.

Tip: If you often work on heavy-duty vehicles – document which vehicles offer the best compatibility with your scanner to save time.

Advantages

• Converts 24V to 12V for diagnosis (according to product text)
• Portable – lightweight and easy to carry
• Practical for workshops and fleets with mixed vehicles
• Durable cable made of PVC with good tensile strength
• Makes it easier to use existing 12V tools even on 24V vehicles

Troubleshooting

No connection with ECU

• Check that the ignition is ON.
• Check that the scanner actually supports the vehicle's system/protocol.
• Try reconnecting and ensure the connectors are fully seated.

Scanner does not start/no power

• Check that the vehicle's diagnostic port provides power.
• Check that the adapter cable is correctly connected.
• If possible: test the scanner on a 12V vehicle to rule out a scanner fault.

Unstable communication

• Avoid tugging the cable and ensure contacts are not loose.
• Ensure the vehicle's battery/electrical system has stable voltage.

Specifications

Package Contents

• 1 × 24V → 12V OBD2 scanner adapter cable

FAQ – Frequently Asked Questions

1) Is this an OBD2 scanner?

No, it is an adapter cable. You need a separate 12V OBD2 scanner/app.

2) Why do I need 24V→12V?

Many heavy-duty vehicles have 24V, while many OBD2 tools are designed for 12V.

3) Does it work on all trucks?

The cable handles the voltage, but diagnostic support depends on your scanner and the vehicle's system.

4) Does it work with ThinkDiag?

Yes, ThinkDiag is mentioned as compatible in the product text.

5) Does it work with Launch X431 EasyDiag?

Yes, EasyDiag 2.0/3.0 are mentioned as compatible in the product text.

6) Do I need to turn on the ignition?

Yes, the ignition normally needs to be ON for the ECU to communicate.

7) Is the cable durable?

It is described as being made of PVC and having good tensile strength.

8) Can I read ECU signals?

Yes, the product text states that it can read signals from the ECU (provided your scanner supports the system).

9) Is it heavy and bulky?

No, it is described as lightweight and portable.

10) What does “Include Protocol Transmit” mean?

It implies that it is designed to forward diagnostic communication/protocols between the vehicle and the scanner.

Notes & Safety

• Use only for its intended function: diagnosis with 12V OBD2 tools on 24V vehicles.
• Check that your scanner supports the vehicle's diagnostic system – the cable does not solve a lack of software support.
• Work stationary and safely – do not use diagnostic equipment while driving.
• If you are unsure of the vehicle's voltage: measure before connecting equipment.

Summary

This 24V → 12V OBD2 adapter cable is a smart accessory for those who want to use a 12V scanner on 24V diesel/trucks. It is portable, built from durable PVC, and is mentioned to work with popular tools like Launch X431 EasyDiag/GOLO and ThinkDiag. Perfect for workshops and fleets when you want to simplify diagnostics on heavy-duty vehicles.
