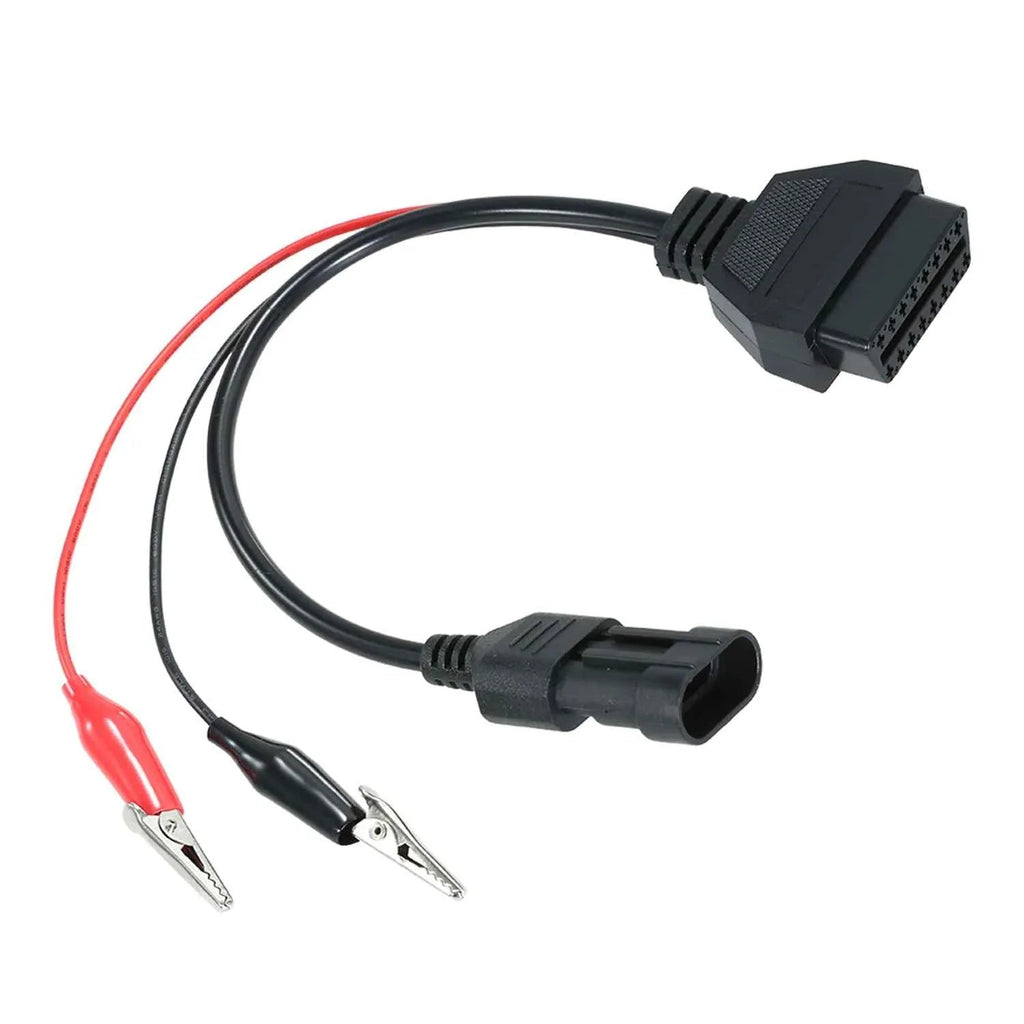

OBD1 to OBD2 3-Pin Adapter Cable for Fiat, Alfa Romeo & Lancia – 16 Pin Diagnostic Cable

OBD1 to OBD2 3-Pin Adapter Cable for Fiat, Alfa Romeo & Lancia – 16 Pin Diagnostic Cable

Product Description

This OBD1 to OBD2 3-pin adapter cable is specifically designed to connect older Fiat, Alfa Romeo, and Lancia models to a compatible OBD2 diagnostic adapter or diagnostic tool. Many cars from the 80s and 90s still use a 3-pin connection for fault code reading, and with this cable, you can easily link your car to modern OBD2 tools.

Perfect for hobby mechanics, car enthusiasts, or workshops working with older Italian cars where a standard OBD2 port is not installed.

Specifications

• Type: OBD1 to OBD2 diagnostic cable

• Connection: 3-pin to 16-pin OBD2

• Compatibility: Fiat, Alfa Romeo, Lancia (older models)

• Function: Enables connection between older cars and modern OBD2 tools

• Application: Troubleshooting, fault code reading, diagnosis

Usage Guide

1. Turn off the vehicle's ignition before connecting the cable.

2. Connect the 3-pin connector to the car's diagnostic port.

3. Connect the 16-pin OBD2 connector to your OBD2 fault code reader or diagnostic tool.

4. Turn on the ignition.

5. Start your diagnostic software/tool and begin reading fault codes.

Compatibility

This adapter cable is compatible with older vehicles that use 3-pin OBD1 connectors:

• Fiat – older models (before OBD2 standard was introduced)

• Alfa Romeo – classic models with 3-pin diagnostic port

• Lancia – older models with OBD1 connection

NOTE: The cable requires an OBD2 fault code reader or diagnostic tool that supports connection via adapter.

History: OBD1 vs OBD2

• OBD1 (On-Board Diagnostics 1) was introduced in the 80s and was an early standard for reading fault codes in cars. Each manufacturer often had their own solutions, making cables and software manufacturer-specific. Fiat, Alfa, and Lancia used 3-pin connectors for their systems.

• OBD2 was introduced in the mid-90s and became mandatory in Europe from 2001 for petrol cars and from 2004 for diesel cars. The standard meant that all cars received the same 16-pin diagnostic port and universal protocols, making it much easier to troubleshoot with the same equipment.

With this adapter, you can thus bridge the old OBD1 system with today's OBD2 standard and utilize modern diagnostic equipment on classic cars.

FAQ – Frequently Asked Questions

❓ Does this cable work on all Fiat, Alfa, and Lancia models?
No, only on older models with a 3-pin OBD1 connector. Newer models (from approximately 2001 onwards) use a standard OBD2 port.

❓ Do I need extra software?
Yes, you need compatible OBD2 diagnostic software or a tool. The cable only functions as an adapter.

❓ Can I use the cable to clear fault codes?
Yes, if your OBD2 fault code reader or software supports clearing fault codes, you can do so via this adapter.

❓ Is power supply integrated into the cable?
No, some 3-pin systems require a separate power supply (usually via the car's battery). Check your car model and diagnostic tool.
