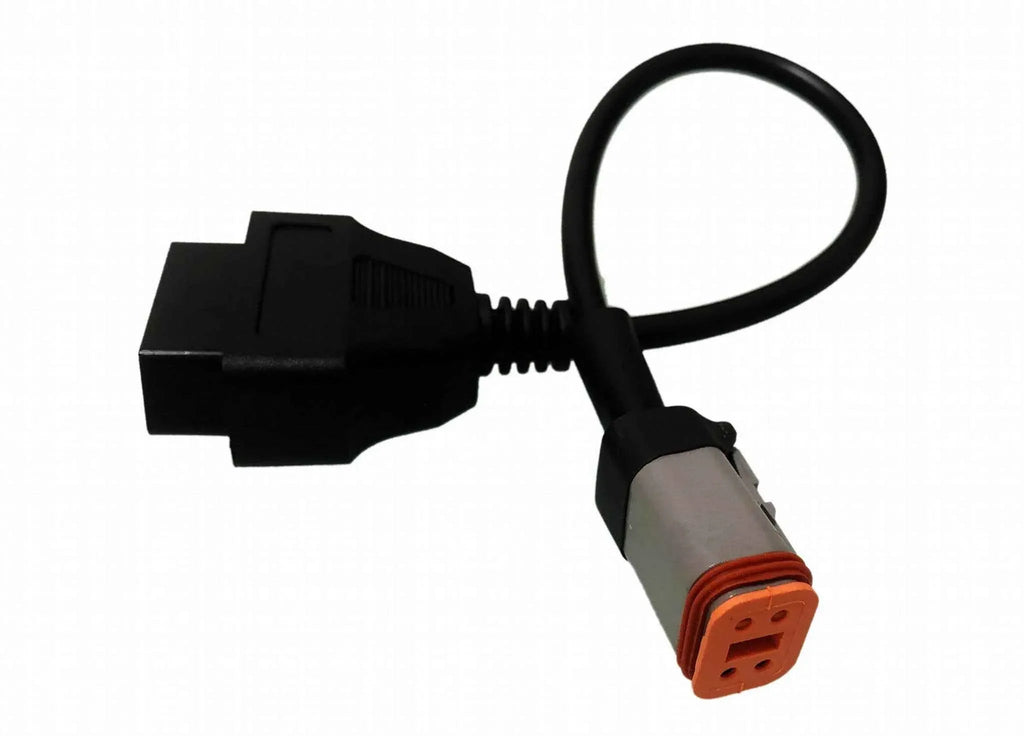

4-Pin OBD Cable for Harley Davidson – Adapter 4pin to 16pin OBD2

User Manual – 4-Pin OBD Cable for Harley Davidson (4-pin to 16-pin OBD2)

Item: 4-Pin OBD adapter cable for Harley Davidson
Purpose: Adapter for connecting external OBD2 diagnostic tools to Harley Davidson motorcycles with a 4-pin diagnostic connector.
Important: The cable has no diagnostic functions of its own – it acts as a bridge between the motorcycle's 4-pin port and an OBD2 tool (16-pin female).

Contents

1. Introduction
2. Safety & Warnings
3. Compatibility
4. System Requirements & Preparation
5. Quick Start (5 steps)
6. Connection & Usage – Step-by-Step
7. Software & Apps (Examples)
8. Troubleshooting
9. Frequently Asked Questions (FAQ)
10. Maintenance & Storage
11. Technical Specifications
12. Legal Information & Disclaimer

1) Introduction

This 4-Pin OBD cable is intended for Harley Davidson motorcycles equipped with a 4-pin diagnostic connector. The cable converts the 4-pin Harley connector to a standard 16-pin OBD2 female connector, allowing you to connect a modern fault code reader, OBD2 scanner, or ECU diagnostic tool to read fault codes, display sensor data, etc.

What can I do with the cable?

• Connect an external OBD2 diagnostic tool or dongle (16-pin).
• Read/erase engine-related fault codes (depending on tool support).
• Display real-time data (e.g., temperatures, voltage, RPM), if your tool supports it.
• Save logs and reports for workshop or self-troubleshooting (depending on software).

2) Safety & Warnings

• Always turn off the ignition before connecting or disconnecting the cable.
• Do not connect/disconnect during starting attempts or when the engine is revved hard.
• Avoid pinching the cable in fairings/seat – risk of cable breakage.
• Protect connectors from moisture, dirt, and oil.
• Do not erase fault codes without first saving/noting them – they facilitate troubleshooting.

3) Compatibility

The cable is intended for Harley Davidson motorcycles with a 4-pin diagnostic port. Examples of listed models:

• FLH Electra Glide – 1984
• FL – 1965–1969
• FLHF – 1982
• XLR – 2005–2007

Always check that your motorcycle actually has a 4-pin diagnostic connector. Newer Harley models may use other systems/ports.

4) System Requirements & Preparation

• Diagnostic Tool: OBD2 scanner, handheld reader, or OBD2 dongle (BT/Wi-Fi/USB) with 16-pin male connector.
• Software/App: Any compatible app (e.g., generic OBD apps) or PC program for OBD diagnostics.
• Power: The motorcycle's battery should be charged and in good condition.

5) Quick Start – 5 Steps

1. Turn off the ignition.
2. Locate the motorcycle's 4-pin diagnostic port and connect the 4-pin connector.
3. Connect your OBD2 scanner/dongle to the cable's 16-pin OBD2 female connector.
4. Turn on the ignition (without starting the engine) and start the app/software.
5. Select the correct connection/protocol in the app and read fault codes/data.

6) Connection & Usage – Step-by-Step

6.1 Locate and connect

• Identify the 4-pin diagnostic port (model-dependent placement).
• Gently push in the 4-pin connector until it is firmly seated.
• Install the 16-pin OBD2 tool into the cable's OBD2 female connector.

6.2 Start diagnosis

1. Turn on the ignition (often requires "ON" position).
2. Open the selected app/software on your smartphone, tablet, or PC.
3. Establish connection (BT/Wi-Fi/USB) if using a dongle or cable.
4. Select the correct adapter/profile in the program and read data.

6.3 After use

• Save logs/report (if possible).
• Turn off the ignition and disconnect the 16-pin OBD2 tool.
• Disconnect the 4-pin connector and reattach any cover/cap.

7) Software & Apps (Examples)

This adapter works with standard OBD2 tools. Functionality varies between tools and models. Examples:

• Mobile apps (Android/iOS): Generic OBD apps (reading/erasing engine fault codes, some live data).
• PC programs: Generic OBD programs for cable/dongle (USB/BT/Wi-Fi) – check support for your adapter.

8) Troubleshooting

Problem: App doesn't find the motorcycle

• Check that the motorcycle truly has a 4-pin diagnostic port (not another system).
• Ensure correct connection at both ends (4-pin & 16-pin).
• Turn on the ignition (often "ON" is required for communication).
• Try another app or update the software.
• Charge the battery – low voltage can interfere with communication.

Problem: No power to the dongle

• Check battery voltage and fuses.
• Reconnect – the 16-pin should be fully inserted.

Problem: Cannot erase fault code

• Some faults reappear immediately if the cause persists – address the cause first.
• The software/tool may lack support for erasing on your model.

Problem: Disconnects during driving

• Avoid touching wiring/adapter during ongoing diagnostics.
• BT/Wi-Fi: Minimize interference sources and keep the device close to the dongle.

9) Frequently Asked Questions (FAQ)

Does the cable fit all Harley Davidson models?
No, only models with a 4-pin diagnostic connector. Check your port before purchase.

Can I turn off "Check Engine"?
Yes, if your diagnostic tool and model allow erasing engine fault codes.

Is special software needed?
You need an app/software that can communicate via your OBD2 dongle/cable. Functions vary per tool.

Does live data work on all models?
Not always – it is governed by what the ECU exposes and what your app can read.

Can the cable damage my motorcycle?
If the cable is used correctly, the risk is minimal. Avoid connecting/disconnecting during startup, do not pull the cable, and follow safety advice.

10) Maintenance & Storage

• Wipe contacts with a dry, lint-free cloth as needed.
• Store dry and dust-free, avoid extreme temperatures.
• Do not bend the cable sharply. Avoid placing heavy objects on top of it.
• Check the connector pins regularly.

11) Technical Specifications

12) Legal Information & Disclaimer

This cable is an aid for diagnostics. Functionality depends on the motorcycle's ECU, the chosen OBD2 device, and software. The manufacturer/reseller is not responsible for damages arising from improper use, coding, or modification. Always follow the vehicle manufacturer's safety regulations and applicable laws.

Last updated: 2025-09-07
