KONNWEI KW860 OBD2 Fault Code Reader – Auto Scanner & Code Reader

Basic Data

• Product Name: KONNWEI KW860 – OBD2/EOBD Fault Code Reader for Engine Systems
• SKU: Fill in SKU
• GTIN/EAN: Fill in EAN
• Price: Fill in price

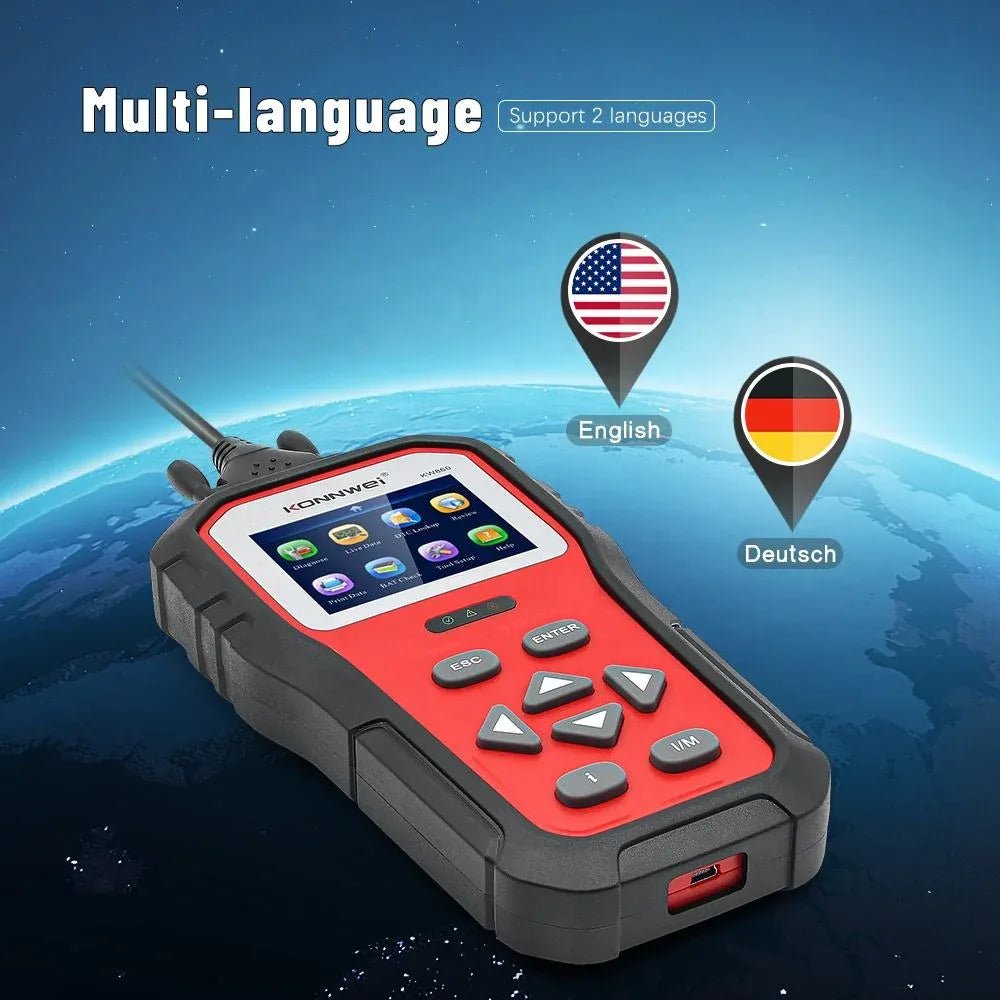

• Device Language: English, German

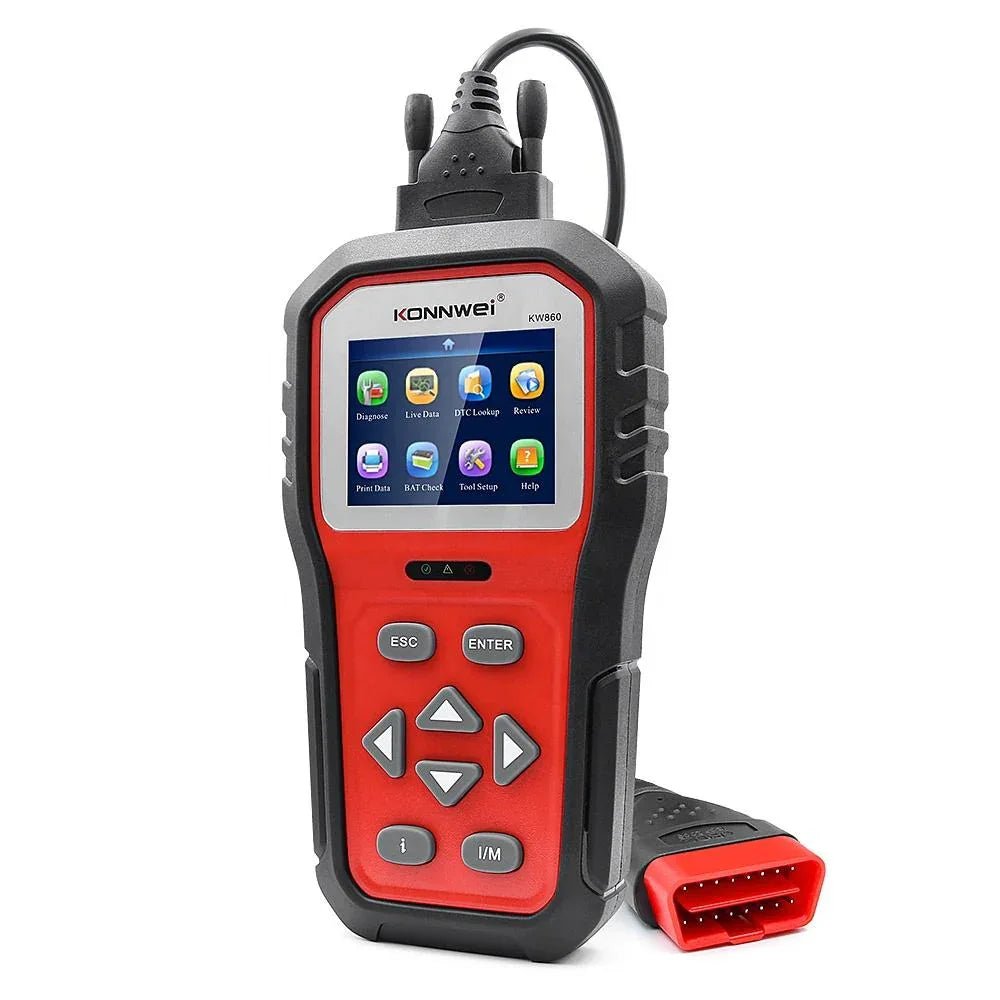

• Display: 2.8" TFT color screen, built-in speaker

Quick Highlights

• Compatibility: OBD2/EOBD cars (12V) – US ~1996→, EU petrol ~2001→, EU diesel ~2004→, Asia ~2006→ (see limitations below).

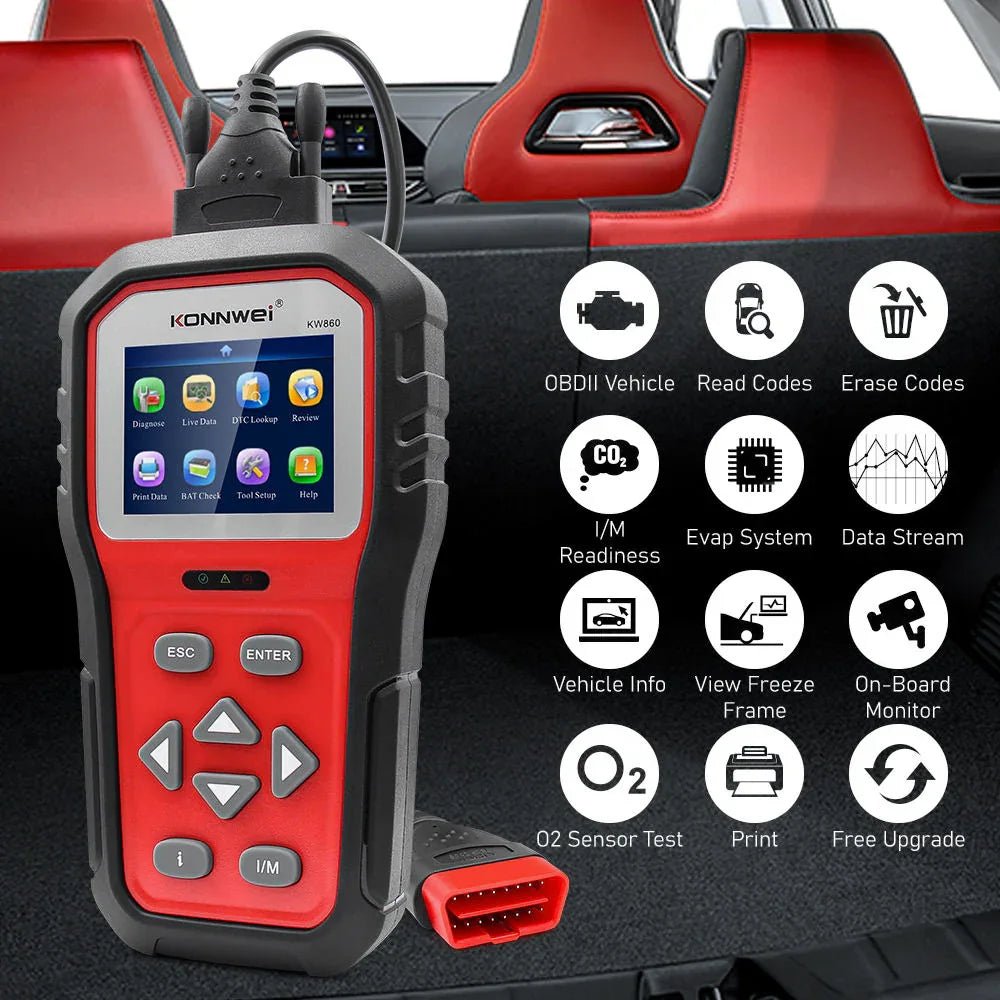

• Key Features: Read/clear DTC, live data (graph & text), freeze frame, I/M readiness, O2 test, EVAP test, Mode 6, on-board monitors, VIN/CIN/CVN.
• Real-time Analysis: Display up to 4 sensors simultaneously in graph for easier troubleshooting.
• “i” Button: Direct troubleshooting help and explanations where the “i” icon is displayed.
• Large Code Database: 23,000+ generic code definitions for faster diagnosis.
• Updates: Lifetime free online updates via Windows (according to manufacturer).
• Easy to Use: No app required, no extra battery – plug into the OBD port and go.

Compatibility & Limitations

The KW860 is designed for 12V petrol and diesel cars that comply with the OBD2/EOBD standard.

• Region/Year (guidelines): US ~1996→, EU petrol ~2001→, EU diesel ~2004→, Asia ~2006→.
• Exceptions: Does not support 24V trucks, and not JOBD-only vehicles.
• Note! (according to supplier): Russian cars before 2012 (e.g., VAZ/UAZ/LADA) are not supported. For Renault and SsangYong – please contact us before purchase. Japanese cars with OBD2/EOBD work, but JOBD does not.
• Protocols: SAE J1850 PWM/VPW, ISO9141-2, ISO14230-4 KWP (5-baud & fast init), ISO15765-4 CAN (11/29-bit, 250/500 kbps).

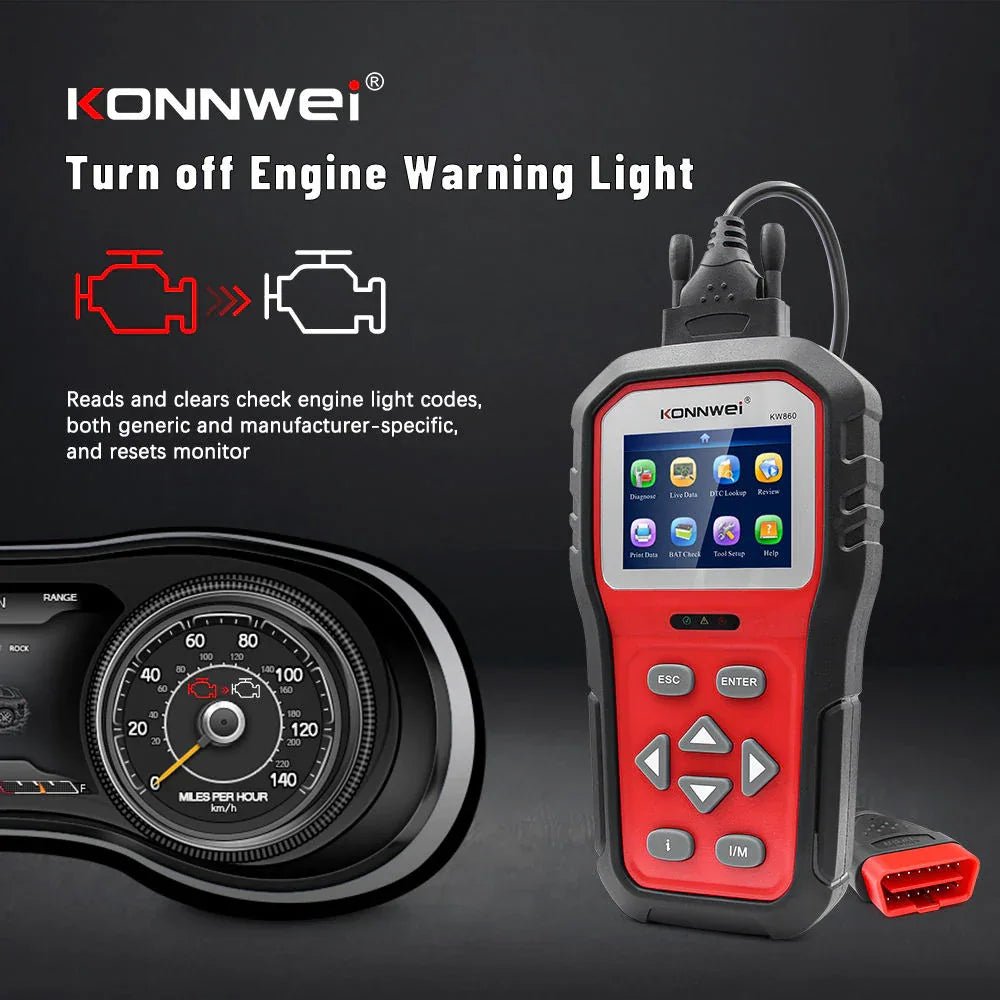

• System: Diagnoses engine systems (MIL/CEL). Not a full system scanner for ABS/airbag/EPB etc.

Full Specification

Features in Detail

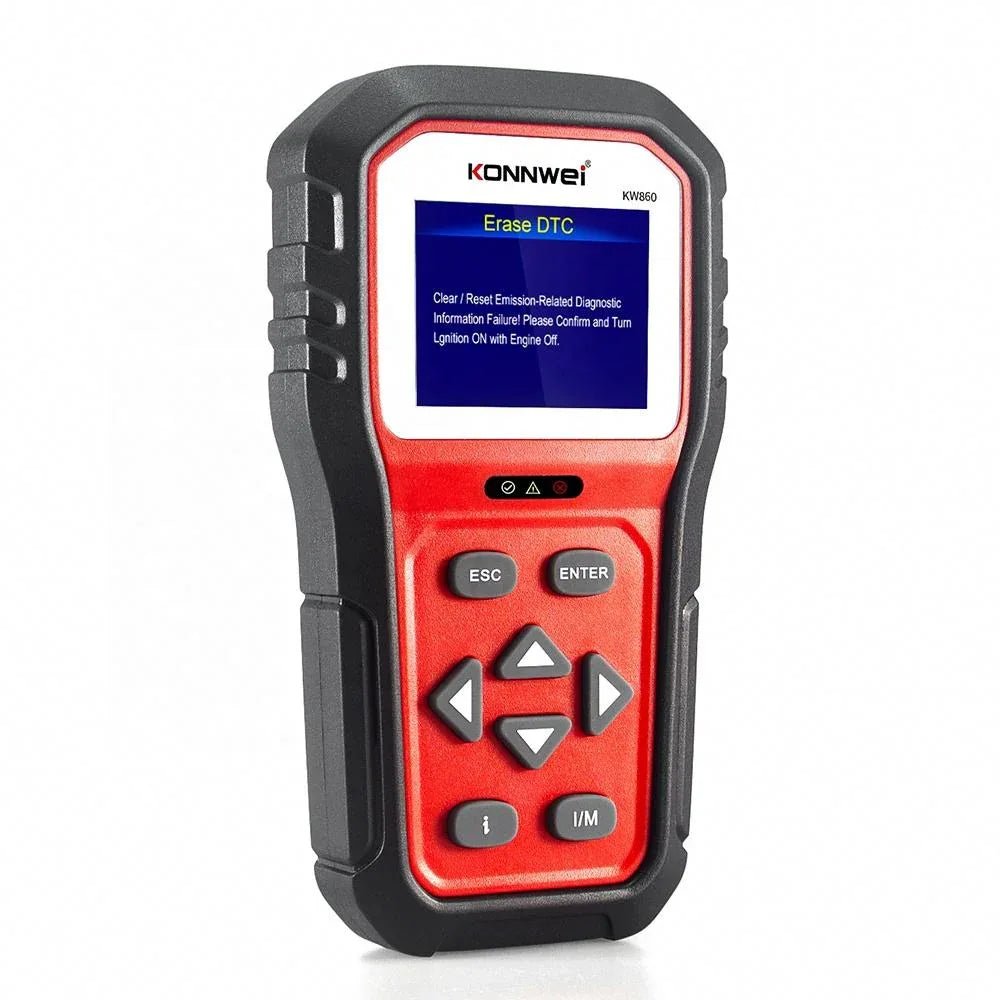

• OBD2 Modes: Read/clear fault codes (DTC), freeze frame, live data in graph & text, I/M readiness, O2 sensor test, EVAP test, Mode 6, on-board monitors, VIN/CIN/CVN.
• “i” Button: Press for direct suggestions where the i-icon is displayed on the code page – helps beginners make the right action decisions.
• Emissions & SMOG: One-click I/M readiness for quick check before inspection/smog check.
• Live Data & Graphs: Display 4 simultaneous sensors to detect abnormal sensors.
• Code Library: 23,000+ generic definitions for faster understanding of fault causes.
• Update/Print: Lifetime free updates via Windows; print function for reports (according to manufacturer).

Packaging & Contents

• KW860 main unit
• OBD2 cable / USB for update (if applicable)
• Quick Guide/Manual
• Storage bag (if included – specify)

OEM orders (≥500 pcs) can, according to the manufacturer, receive: printed logo, different model designation, designed color box, user manual, logo on bag and system splash.

Quick Start

1. Turn off the engine, insert the KW860 into the car's OBD2 port (often under the dashboard).
2. Turn on the ignition (ON, engine may be off initially).
3. Follow the menu selections to read fault codes, I/M status, or live data.
4. Analyze results (use the “i” button when it appears for explanations & tips).
5. Address the cause & clear codes if necessary, test drive and recheck.

Safety: Do not clear fault codes without addressing the root cause. The product is intended for 12V vehicles – do not use on 24V systems. Note that live data requires the system to be running/warmed up for certain tests.

Software & Updates

According to the manufacturer, lifetime free updates are supported via Windows:

1. Download the update tool from the manufacturer's website.
2. Hold down any button and connect the device to a PC via USB to enter Update Mode.
3. Click "Check Update" and follow the instructions (support according to supplier: Windows XP–Windows 10).

Note: Drivers require official Windows installation. Print function via PC is supported according to the manufacturer.

Legal & Terms

• Disclaimer: Compatibility may vary between year/model/market. No scanner works with all cars.
• Certifications: CE/FCC/RoHS – specify if applicable.
• Returns/Warranty: See store's terms for open purchase, warranty, and stock status.

SEO & Media

• Meta-title: KONNWEI KW860 OBD2 Fault Code Reader – Engine Diagnostics, I/M, O2 & EVAP
• Meta-description: Standalone OBD2/EOBD scanner for 12V petrol/diesel. Read/clear DTC, live data, I/M, O2, EVAP, Mode 6. 2.8" color screen, “i” button, lifetime updates.
• Keywords (ex.): konnwei kw860, kw850 upgrade, obd2 fault code reader, eobd scanner, engine fault code, im readiness, o2 test, evap test, mode 6, code reader, obd2 can
• Image Recommendation: Minimum 1000 px, front/back/ports + functional images (e.g., graphs, I/M screen). Preferably WebP.
• Downloads: Manual (PDF), quick guide (PDF) – add links if available.
