OBD2 Memory Saver – ECU emergency power supply for battery replacement

Short Version

The JFIND JC02 is a smart OBD2 Memory Saver (battery replacement assistant) that provides the car with an alternative 12V power supply via the OBD2 port when changing the car battery. The purpose is to preserve the car's memories such as fault codes, ECU adaptations, and electronic settings (e.g., stereo/radio presets), so you avoid unnecessary resets after a battery change. In modern cars, power outages can otherwise cause settings to revert to default, and in some cases, you may need to enter a security code for the stereo.

The JC02 can be powered by any 12V DC source, such as a jump starter outlet, a separate 12V lead-acid battery, or another car's 12V outlet (cigarette lighter socket). The major advantage is the extra-long cable of 10 ft / approx. 3 meters, which makes it easier to draw power from another vehicle if you don't have a booster readily available. The product also highlights gold-plated alligator clips (better contact compared to standard zinc-plated clamps) and a built-in 8A fuse for overload protection.

Important: During battery replacement, you should not turn on the ignition or turn the key to ACC when the battery is disconnected – otherwise, the fuse in the memory saver may blow.

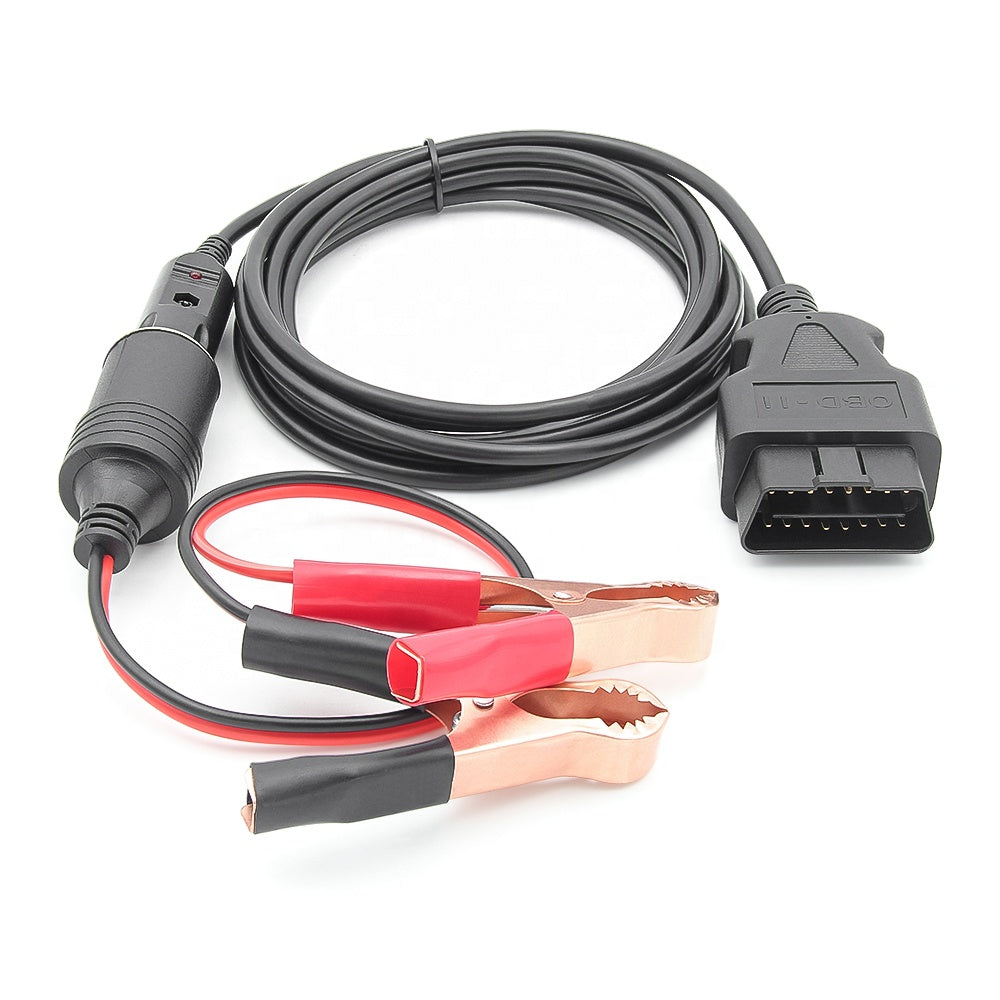

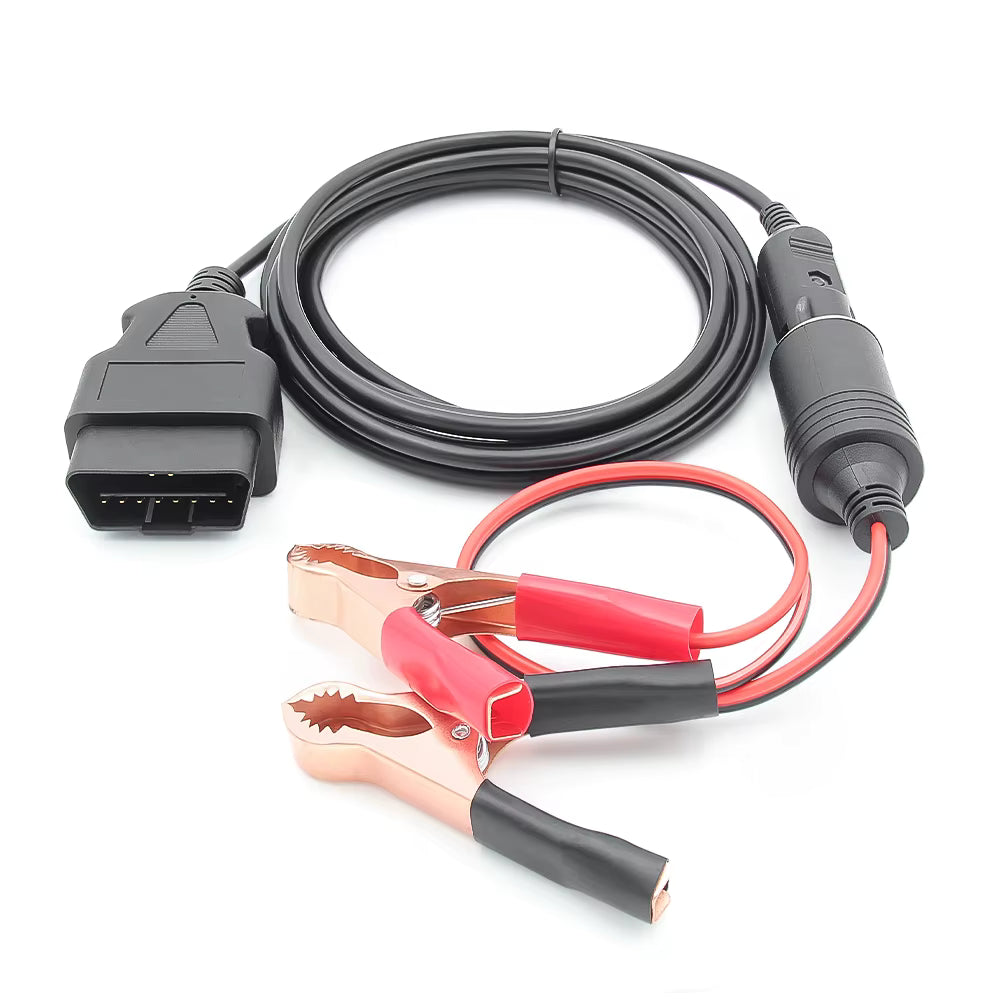

• Model: JFIND JC02
• Type: OBD2 ECU Emergency Power / Memory Saver

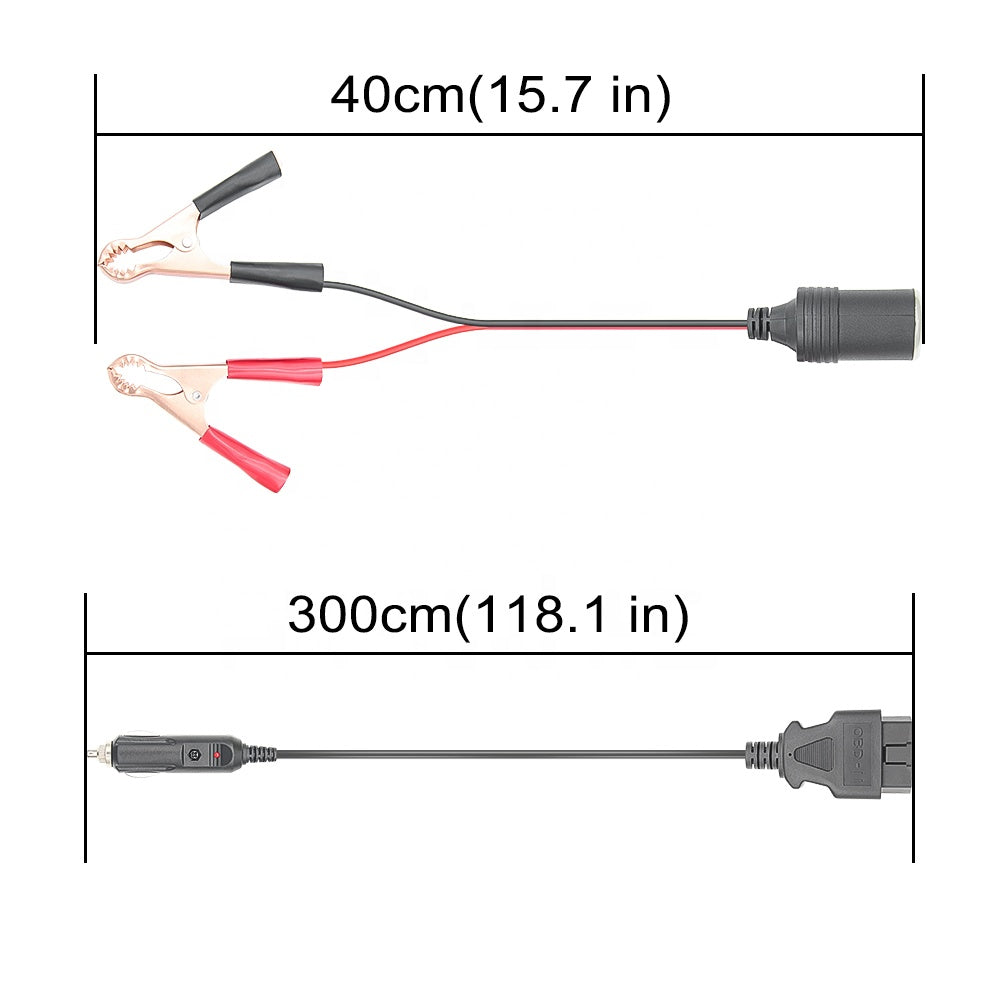

• Cable Length: 300 + 40 cm (total as per spec)
• Protection: 8A fuse built-in
• Power Source: 12V DC (jump starter, 12V battery, or another vehicle)

What is an OBD2 Memory Saver?

An OBD2 Memory Saver is a device that provides the car with external 12V power via the OBD2 socket when disconnecting the car's main battery. This way, the car's control units and memories can remain powered during the actual battery replacement.

The JFIND JC02 acts as an interface connection between a 12V DC source and the car's OBD2 port and is designed to preserve “vehicle codes and electronic presets” according to the product text.

Why is it needed in modern cars?

In older cars, you could often change the battery without noticing anything. In newer cars, electronics control much more: everything from stereo and comfort functions to transmission adaptation values. If the power is interrupted, settings can be reset, and the car may feel different until it has "relearned." In some cases, a security code may also be needed for the stereo after a battery change.

With a memory saver, you reduce the risk of having to reset settings or deal with "unnecessary" consequences of a power outage.

Advantages of JFIND JC02

1) Gold-plated clamps

JFIND states that their alligator clips are gold-plated instead of zinc-plated, which can provide better contact and power transfer.

2) Extra-long cable – approx. 3 meters

Many memory savers have a 1–3 ft cable. The JC02 has, according to the text, 10 ft / approx. 3 meters, which makes it easier to:

• reach a jump starter located a bit away
• draw 12V from another car's cigarette lighter socket if you lack a booster
• work more comfortably around the engine compartment

3) Built-in 8A fuse

A built-in 8 amp fuse provides overload protection. If something goes wrong (e.g., the ignition is turned on during battery replacement), the fuse can blow instead of you risking bigger problems.

Compatibility & Requirements

• Vehicles: cars with 16-pin OBD2 (standard OBD2 socket)
• Power Source: 12V DC (jump starter, 12V lead-acid battery, or another car's 12V outlet)
• Important: The OBD2 port must have stable contact – otherwise, memory can still be lost during replacement

Note: Not all cars power the OBD2 port in exactly the same way, and some vehicles may have specific requirements. The JC02 is designed for general OBD2 memory saving, but always follow the car's own instructions for battery replacement.

Step-by-step: how to use JFIND JC02 for battery replacement

Preparations

• Park safely, turn off the car, and remove the key.
• Turn off all power consumers (lights, fan, stereo).
• Read the car's recommended procedure for battery replacement.

1) Connect external 12V source to JC02

1. Select power source: jump starter, 12V battery, or another car's 12V outlet.
2. Connect the JC02 correctly to the power source (correct polarity).
3. Check that the red LED on the 12V plug lights up (according to product text: otherwise, no power or wrong polarity).

2) Connect the OBD2 connector to the car

1. Insert the JC02's OBD2 connector into the car's OBD2 port.
2. Ensure the connector is firmly seated – poor contact can cause the ECU to lose voltage during replacement.

3) Insulate battery cables

Since the car's electrical system is now powered via the OBD2 memory saver, the battery cables are electrically "live." Cover the battery cables with insulating material so that they cannot touch metal or each other.

4) Replace battery

1. Disconnect the old battery (usually negative first, follow the car's instructions).
2. Replace with a new battery.
3. Reconnect the battery (often positive first, follow the car's instructions).
4. Do not turn on the ignition and do not turn to ACC during the actual replacement.

5) Disconnect JC02

1. Once the new battery is in place and properly connected: unplug the JC02 from the OBD2 port.
2. Disconnect the JC02 from the power source.
3. Wipe the cable and connectors with a dry cloth after use (according to product text).

Three common scenarios for power supply

Scenario A: Jump starter with 12V outlet

Connect the jump starter to the JC02's 12V input, and then the OBD2 connector to the car. This is often the smoothest setup.

Scenario B: Separate 12V lead-acid battery

Connect the alligator clips to a healthy 12V lead-acid battery (correct polarity), check the LED, and then connect the OBD2 connector to the car.

Scenario C: Draw 12V from another car's cigarette lighter socket

Thanks to the 3-meter cable, you can draw power from another vehicle if you lack a booster. Insert the cigarette lighter plug into the "healthy" car and the OBD2 connector into the car where you are replacing the battery. Check the LED and that the socket is working.

Troubleshooting

Red LED does not light up

• Check that the power source provides 12V.
• Check polarity (wrong polarity = no LED according to product text).
• If drawing power from another car: check that the cigarette lighter socket is working and providing voltage.
• If using a jump starter: check connection and that the 12V outlet is active.

Car still lost memory

• Check that the OBD2 connector was properly seated the entire time (poor contact can cause voltage loss).
• Check that the power source did not go to sleep/off during replacement.
• Check that you did not turn on ignition/ACC during replacement.

Fuse has blown (8A)

• This can happen if the ignition/ACC is turned on during battery replacement (according to product warning).
• Check the fuse in the 12V plug and replace/rectify according to your supplier's instructions.

Important Warnings & Safety (summary of product warnings)

1. Read the car and battery manufacturer's safety instructions before changing the battery.
2. When the memory saver powers the car via OBD: the battery cables are electrically live – insulate them to avoid short circuits.
3. Do not turn on the ignition and do not turn to ACC when the battery is disconnected and the replacement is not complete.
4. Ensure good contact in the OBD2 port – otherwise, the ECU may lose power during replacement.
5. Check that the 12V plug is correctly connected and that the LED indicates power.
6. If problems occur: check the fuse or contact the seller/distributor (according to product text).

Specifications

Package Contents

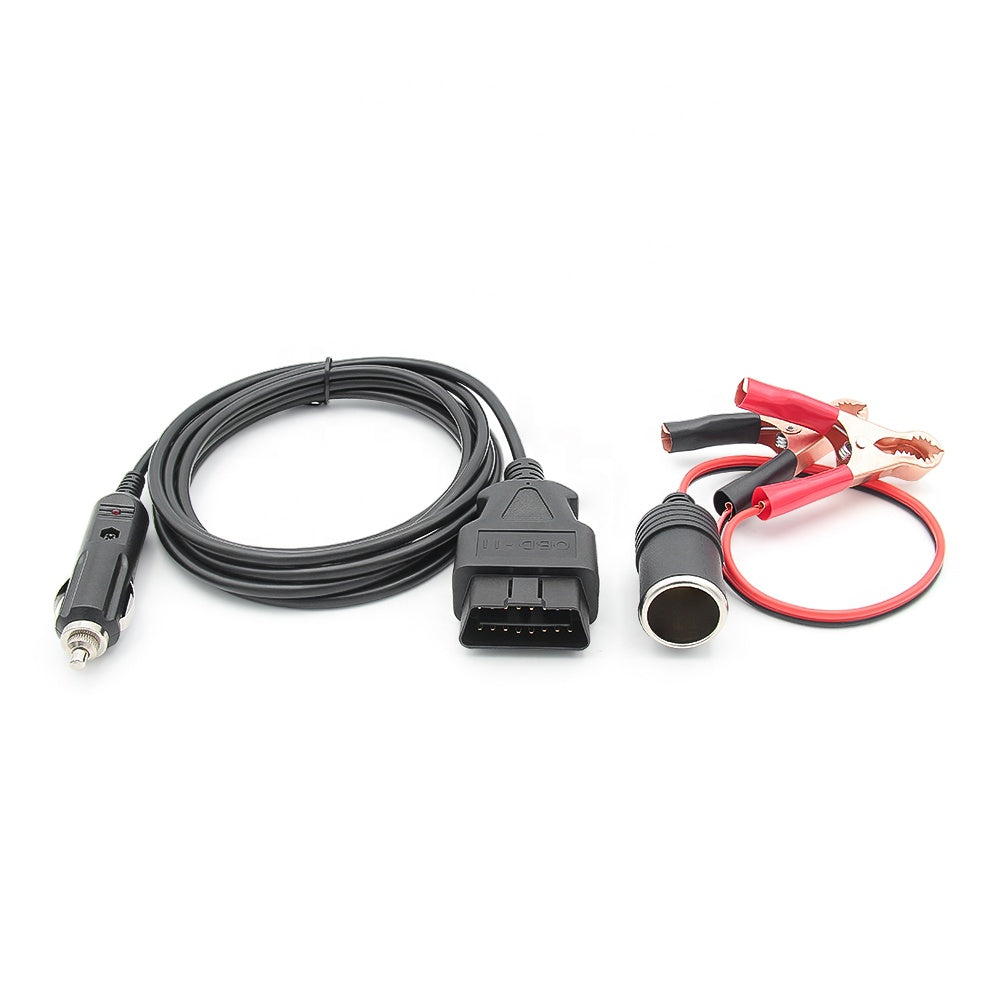

• 1 × JFIND JC02 OBD2 Memory Saver / Battery Replacement Assistant

FAQ – Frequently Asked Questions

1) What does a memory saver save?

It is designed to preserve the car's codes and electronic settings/presets when the main battery is disconnected.

2) Does it work on all cars?

It is designed for cars with 16-pin OBD2 and 12V systems. Always follow the car's instructions for battery replacement.

3) Can I use another 12V battery as a power source?

Yes, the product states that it can be powered by a jump starter, 12V lead-acid battery, or another car's 12V outlet.

4) Why is the cable so long?

The extra length (approx. 3 meters) allows you to draw power from another car if you lack a booster, according to the product text.

5) What happens if I turn on the ignition during battery replacement?

According to the warning, it can cause high current/overload and blow the fuse in the memory saver.

6) What does the red LED on the 12V plug mean?

According to the product text, it indicates correct power/polarity. If it doesn't light up, there's no power or the polarity is wrong.

7) Does it have overload protection?

Yes, an 8A fuse is built into the memory saver.

8) Can it prevent the stereo from needing a code?

Yes, that's one of the points: to avoid settings being reset, which on some cars can trigger the need for a code.

9) Does the OBD2 connector need to be seated very firmly?

Yes, according to the product warning, the connector must be securely seated to avoid losing power to the ECU during battery replacement.

10) Can I leave it connected after battery replacement?

No, unplug after use and wipe contacts/cable according to the product text.

Summary

The JFIND JC02 is a practical OBD2 memory saver that helps you preserve your car's settings and ECU memory during battery replacement. With gold-plated clamps, an extra-long 3m cable, and an 8A fuse, you get a robust solution that works with multiple 12V power sources – jump starter, external 12V battery, or another car's 12V outlet.
