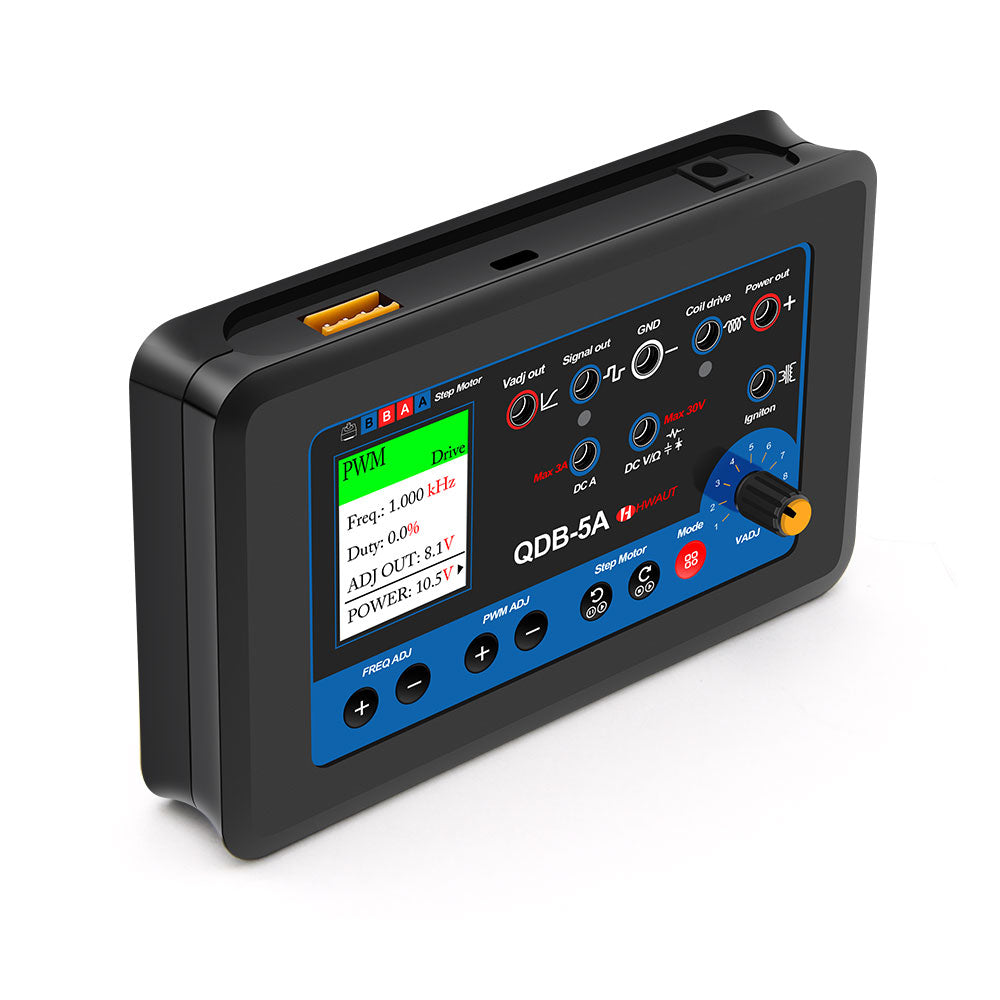

QDB-5A Automotive Ignition Coil Tester – Advanced Ignition Coil and Actuator Analyzer

QDB‑5A Automotive Ignition Coil Tester – Advanced Ignition Coil and Actuator Analyzer

Modern car service is increasingly about electronics and control systems. Electronic ignition coils, injectors, solenoids, and stepper motors are at the core of the internal combustion engine and its peripherals. When any of these systems fail, it can lead to increased fuel consumption, misfires, engine lights, and, in the worst case, engine failure. To troubleshoot effectively, equipment that not only measures but can also operate and simulate various components is required. The QDB‑5A is exactly such a complete solution – a combination of ignition coil tester, injector driver, actuator control, multimeter, and oscilloscope in a compact handheld format.

With the QDB‑5A, you can activate and test a variety of components without having to remove control units or drag the entire vehicle to an expensive diagnostic bench. You can connect an ignition coil, give it an adjustable pulse signal, and observe the spark in a test gap; you can drive an injector on a bench to see its flow and pulse width; you can simulate a Hall sensor and see how a control unit reacts to different frequencies and duty cycles; you can run a stepper motor back and forth and observe any inertia problems. Thanks to the built-in oscilloscope function, you can also visually analyze waveform and voltage levels, thus quickly detecting deviations such as voltage spikes or circuit interference.

Features and Applications

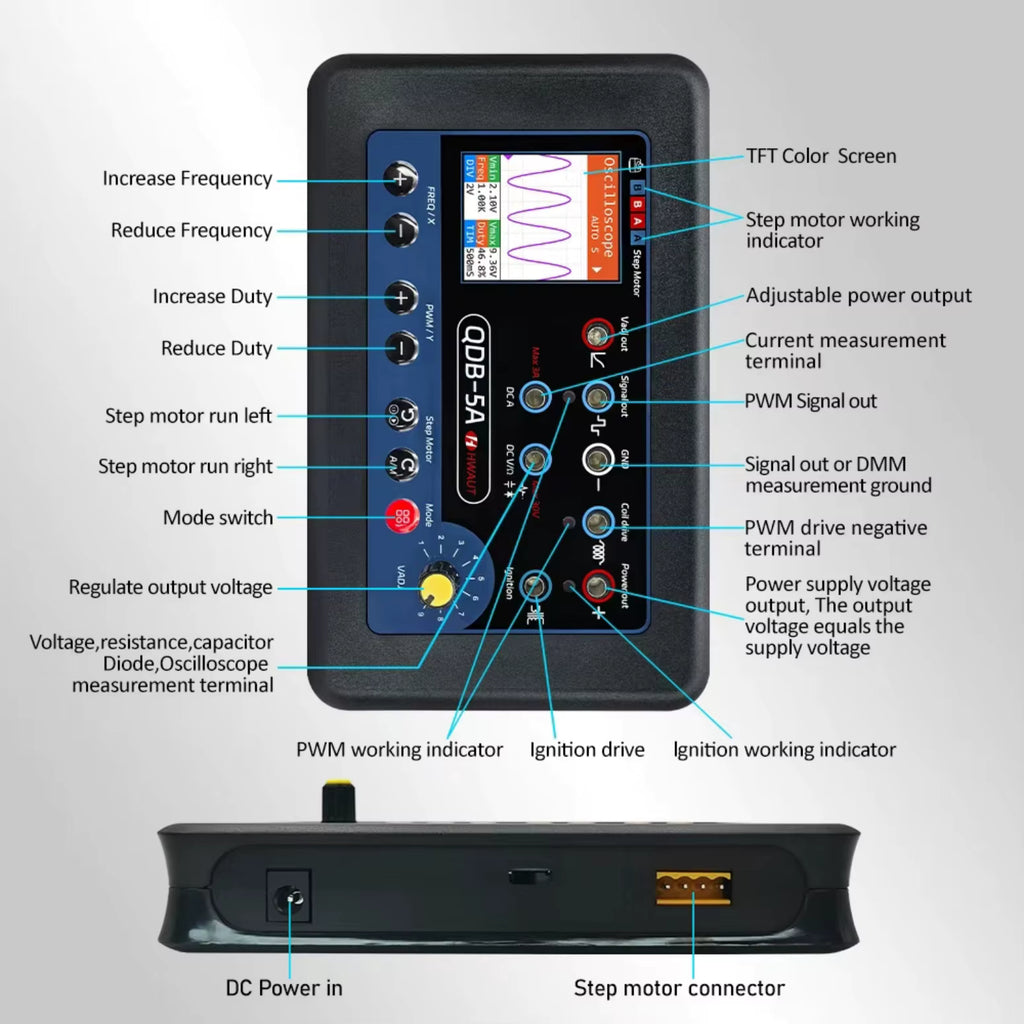

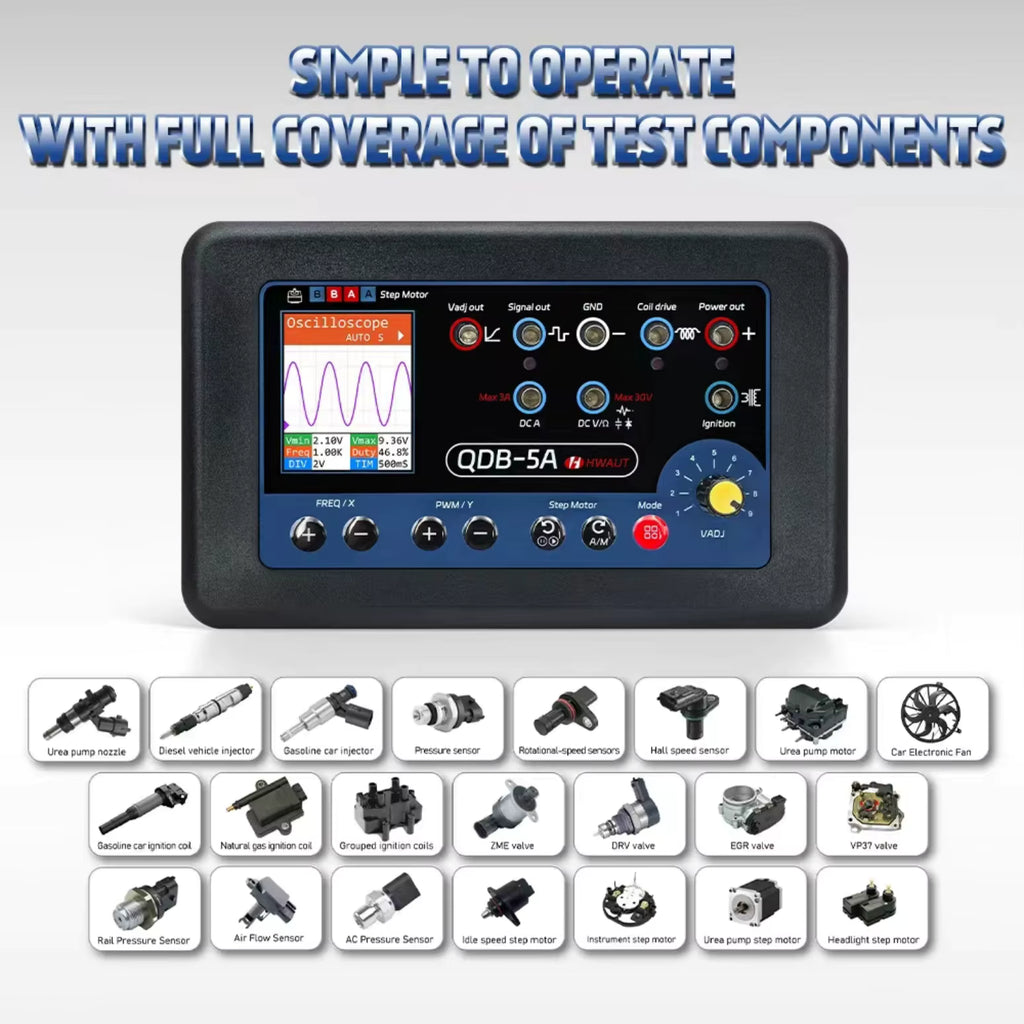

The QDB‑5A is designed to handle a range of different test scenarios, from simpler engine parts to more advanced control systems. Below are the most important functions and what they mean in practice:

• Ignition coil operation and testing: The tool can generate pulses with adjustable frequency and pulse width to activate ignition coils of various types – standalone, coil-on-plug, module ignition coils, and integrated coil systems. You can easily verify that the coil produces a strong spark and rule out the ignition coil as a source of misfires.
• Injector testing under operation: The QDB‑5A drives 12 V gasoline injectors and 12/24 V diesel injectors. You can control pulse width and frequency and observe the flow on a bench or on the vehicle. This is perfect for flow tests, cleaning procedures, and checking injector response.
• Solenoid and valve testing: Solenoid valves for EGR, recirculation, valve control, and fuel metering are often controlled via PWM signals. With the QDB‑5A, you adjust the duty cycle (0–100%) and frequency (1–100 kHz) and see how the valve moves or how fuel flows.
• Motor control: The tool can drive various DC motors with a PWM signal. This includes urea pump motors (AdBlue), fan motors, and small DC motors in various car systems. You adjust voltage and duty cycle to observe the motor's behavior and check if it runs freely or has bearing problems.
• Stepper motor operation: The QDB‑5A supports motors that are driven step by step, such as idle air control (IAC) motors, dashboard gauge motors, and headlight swivel motors. With the stepper motor function, you can run the motor in both directions and adjust the speed with a maximum current of 1.5 A. Perfect for testing motor response and checking for mechanical obstructions or electrical faults.
• Hall sensor simulation: An adjustable signal generator allows you to simulate duty cycle-based sensors, such as mass air flow sensors, air conditioning pressure sensors, or other pulse sensors. You can set the frequency, voltage, and duty cycle and see how the control system reacts. This is very useful for troubleshooting sensors without having to start the engine or risk an incorrect signal from the car.

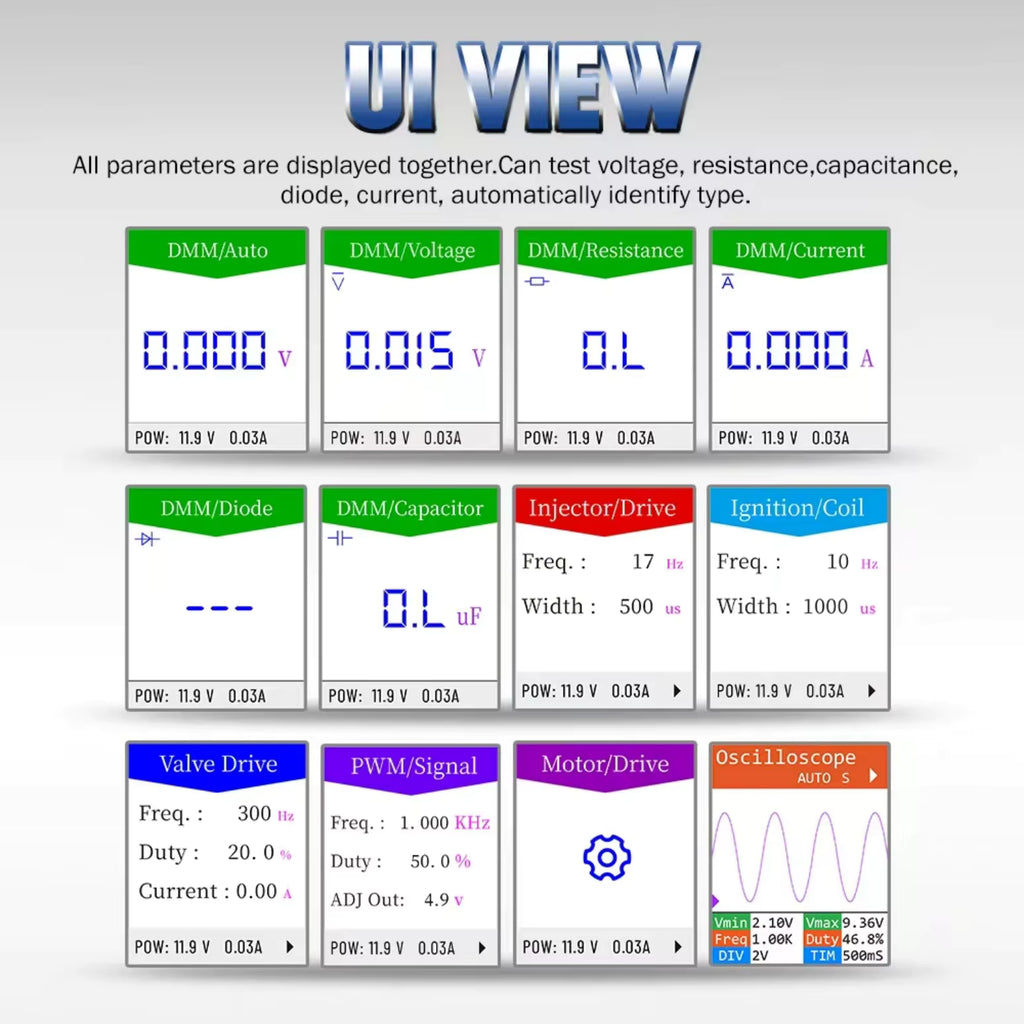

• Oscilloscope function: The built-in oscilloscope allows you to view the voltage waveform in real time. You can connect test probes to various components and see pulse widths, signal spikes, and interference. The oscilloscope is a powerful tool for advanced troubleshooting and confirms that electrical signals are as they should be.

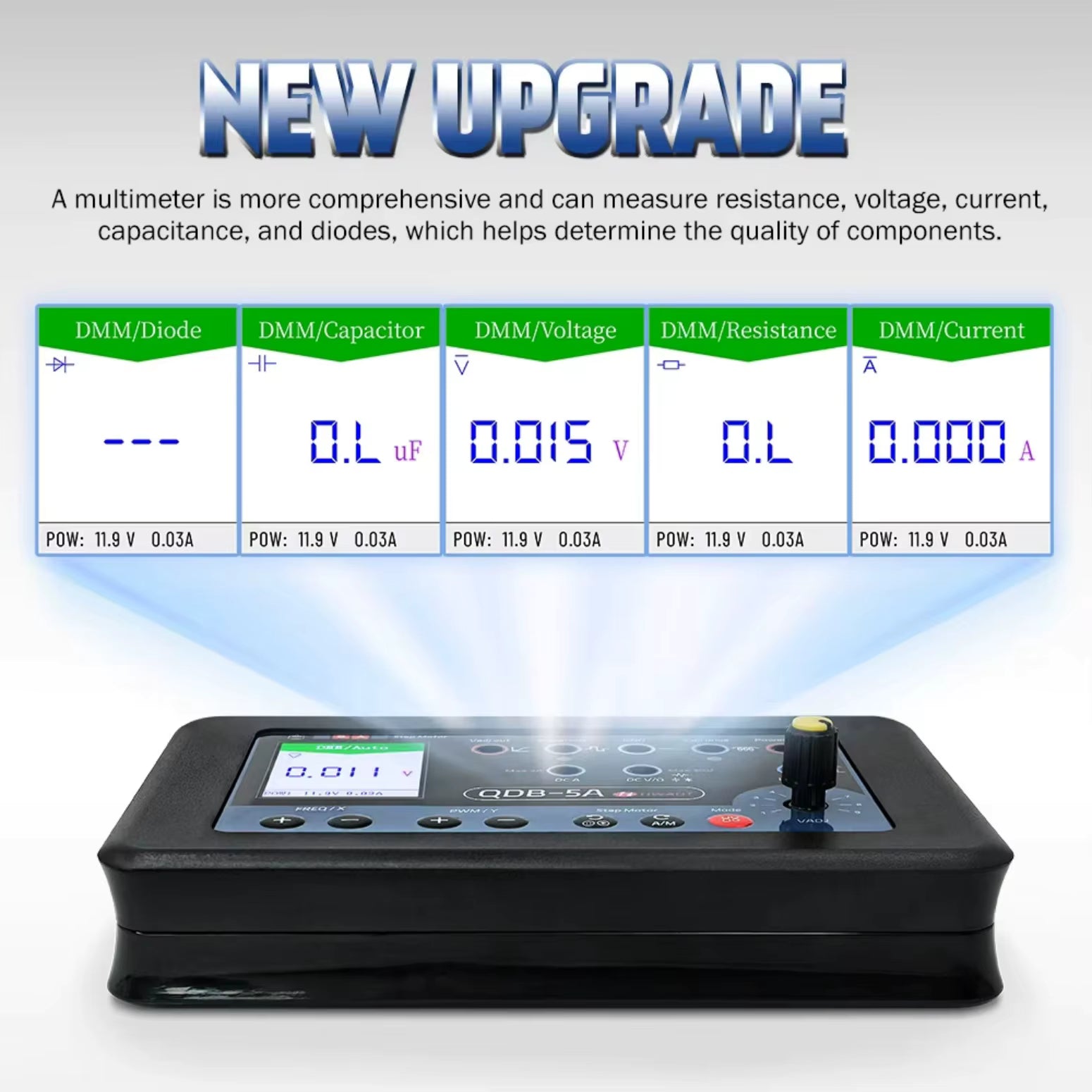

• Digital multimeter: With the multimeter mode, you measure voltage (0–30 V) and resistance (0–1 MΩ) directly on the component. This is practical for checking wiring harnesses, voltage drop, ground connections, and much more.

Advantages of the QDB‑5A

Why choose the QDB‑5A over other devices? Here are some of the main reasons:

• Versatility: Replaces several separate units – ignition coil tester, injector driver, multimeter, oscillator, and signal generator. Everything is in one package, saving space and reducing investment.
• Time efficiency: By being able to operate and test components without disassembling control units or entire engines, you save an enormous amount of time in the workshop. Diagnosis takes minutes instead of hours.
• High accuracy and adjustability: The PWM signal can be adjusted from 1 Hz to 100 kHz and the duty cycle from 0% to 100%. This allows you to adapt the test to the component's specifications. The multimeter and oscilloscope provide accurate measurements for voltage and waveform.
• Wide voltage range: The QDB‑5A handles 8–28 V (specifications state up to 26 V depending on the variant), allowing you to use the device on both 12 V passenger cars and 24 V trucks and buses.
• Increased safety: By being able to test components outside the vehicle, you minimize the risk of short-circuiting or damaging electronics in the vehicle. The oscilloscope function reveals any dangerous voltages.
• Quick ROI: The tool quickly pays for itself through reduced diagnostic time, fewer incorrect parts, and more satisfied customers. Workshops can increase their revenue by offering advanced diagnostics on-site.
• Expandability: With the included test cables and adapters, you can connect to many types of connectors. In addition, you can purchase additional adapters if needed for specific vehicles.

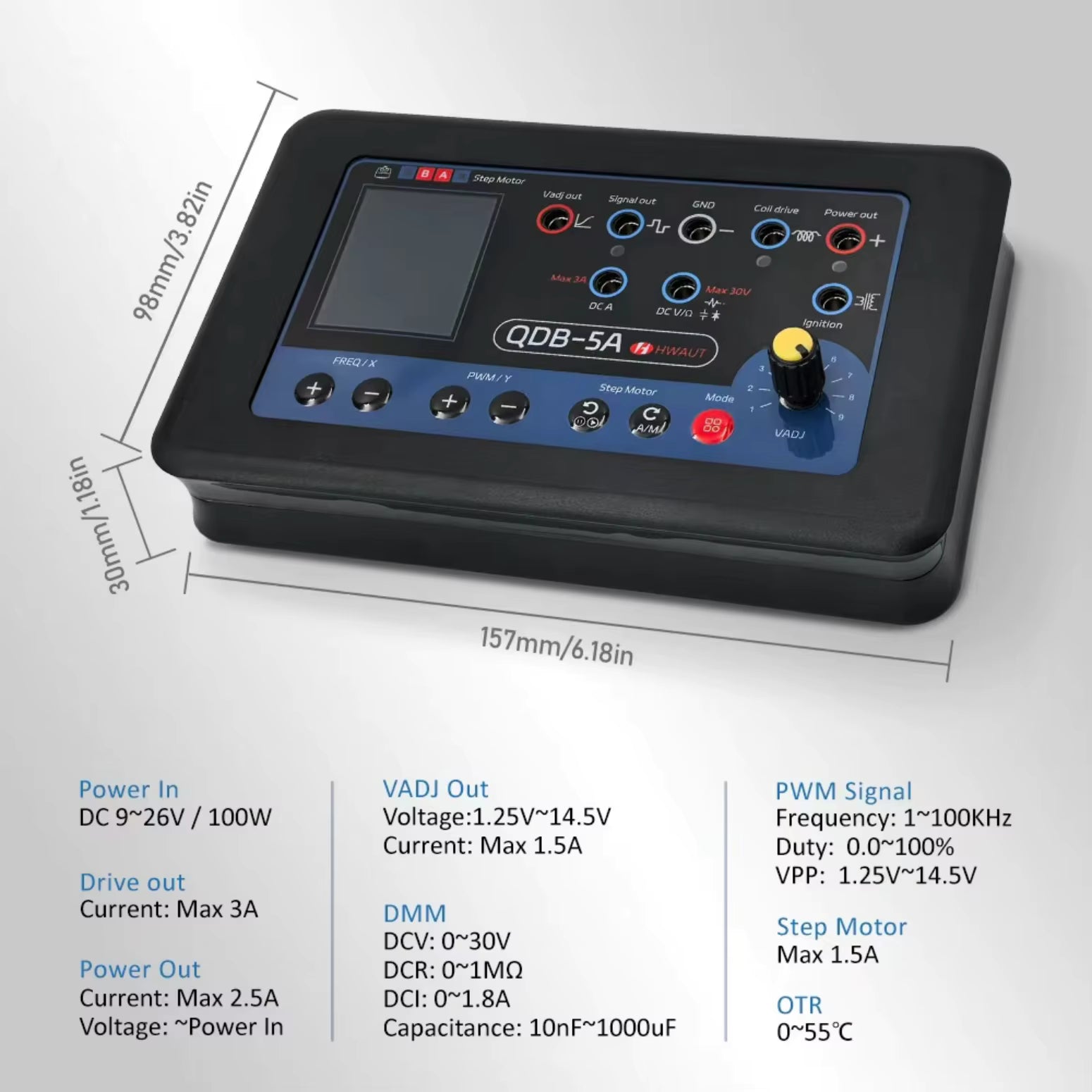

Specifications

The exact technical specifications provide an idea of the tool's capabilities:

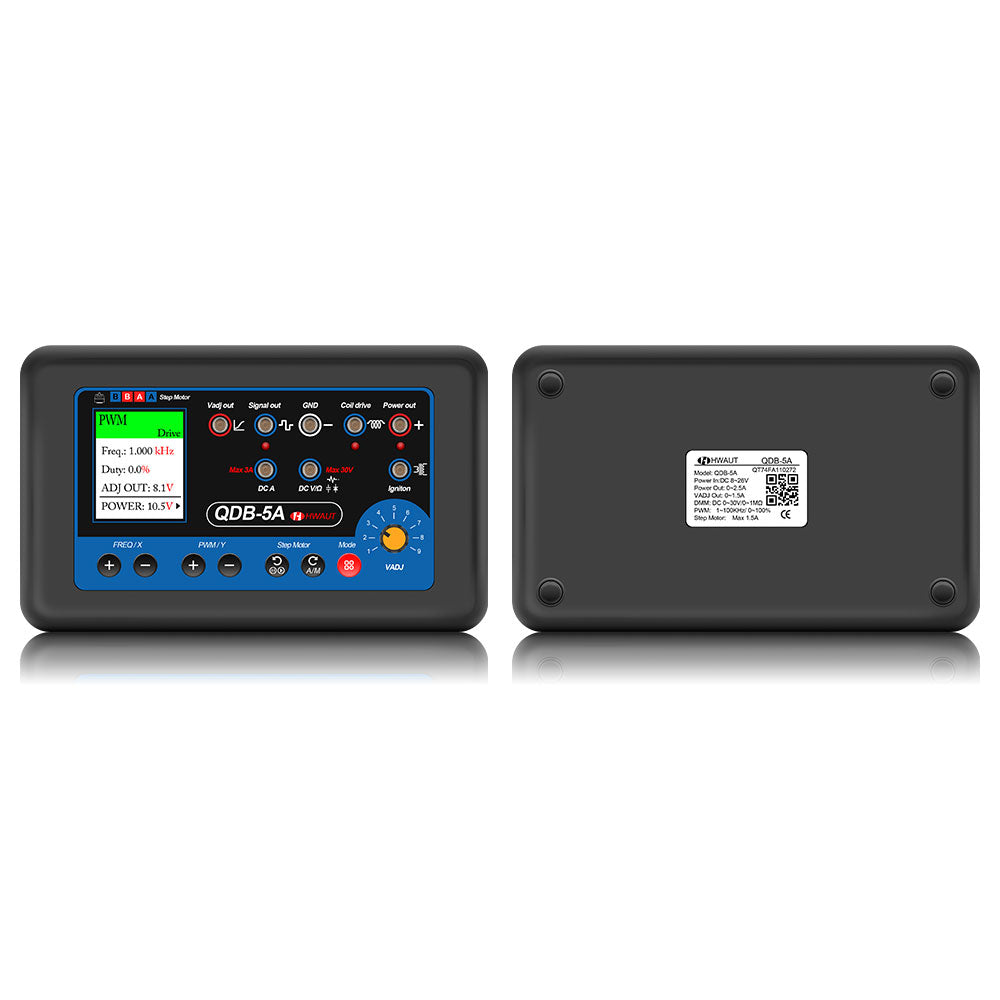

• Model: QDB‑5A
• Power supply (power in): DC 8–28 V (other information indicates 8–26 V)
• Output current (power out): 0–2.5 A (continuous current for coils/injectors)
• Output adjustment (VADJ): 0–1.5 A – adjustable voltage/current for more sensitive components
• Multimeter (DMM): Measures DC 0–30 V and resistance 0–1 MΩ. Real-time display on screen.
• Pulse width modulation (PWM): Frequency range 1–100 kHz, duty cycle 0–100%. Provides maximum flexibility for all valves and motors controlled via PWM.
• Stepper motor: Max 1.5 A. Sufficient for most IAC motors and instrument stepper motors.
• Special function: Support for capacitance and diode testing, as well as current measurement and oscilloscope.

Manual – Step-by-step guide

To get the most out of the QDB‑5A, here is a detailed user manual for each function. Follow these steps and advice for safe and correct use.

General preparations

1. Safety check: Ensure the vehicle is in a safe location, the engine is off, and the ignition is off. Prepare protective equipment such as safety glasses and gloves when working with high-voltage coils.
2. Power source: Connect the power cable with clamps to the vehicle's battery or to an external bench power supply. Pay close attention to polarity: red to positive and black to negative. Do not start the engine during the test.
3. Device setup: Turn on the QDB‑5A. Select language and interface if applicable. Navigate the menu to select the function you want to use (ignition coil, injector, PWM, stepper motor, etc.).

Ignition coil test

1. Connection: Connect the test lead to the coil. For standalone coils, connect directly to voltage and ground. For coil-on-plug, you may need an adapter or an extension to connect the test probe.
2. Parameter settings: Set pulse width (duty cycle), frequency, and voltage according to the coil manufacturer's data. Typically, 2–3 ms pulse width and a few hundred Hz are used for testing.
3. Start the test: Activate the pulse signal. The coil should generate a spark that you can see in a spark gap or feel with a spark plug tester. If the spark is weak or absent, the coil may be defective.
4. Oscilloscope analysis: Connect the oscilloscope probe to the primary and secondary circuits of the ignition coil to view voltage peaks and ringing. Deviant waveforms may indicate an internal short circuit or a faulty drive circuit.

Injector test

1. Prepare injector and test bench: If testing outside the car, place the injector in a suitable container for fuel (use an injector test kit). Connect power and ground via the QDB‑5A's test cables.
2. Select function: Navigate to "Injector" in the menu. Enter voltage (12 V or 24 V), frequency, and pulse width. Diesel injectors often require a longer pulse width to open than gasoline injectors.
3. Start pulsing: Press start. The injector should click and spray fuel rhythmically. Observe the spray and ensure it has the correct spray pattern. If the spray is uneven or the injector clicks irregularly, it may be clogged or electrically damaged.
4. Adjust duty cycle: Increase or decrease the duty cycle to simulate different load cases. An injector should respond quickly to changes in pulse width without sticking.
5. Final check: After the test, turn off the pulsing. Be careful with fuel residue and ventilate the area.

Solenoid and fuel metering valves

1. Identify the valve: Find out the voltage and frequency with which the valve is driven in the vehicle. Check the car's service information.
2. Connect the correct cables: Connect the valve to the QDB‑5A with the test probes. Ensure the polarity is correct for solenoid valves with a diode (some valves are polarity-sensitive).
3. Set PWM: Select PWM mode. Enter the correct frequency (often 250–500 Hz) and start with a duty cycle of 50%. The valve should open and close smoothly. Increase or decrease the duty cycle to simulate different flows.
4. Listen and feel: The valve should vibrate evenly without jolting or abnormal noise. If it sounds bad or draws too much current, it may be worn.

Motor control (DC motors)

1. Identify motor and requirements: Check nominal voltage and current. Urea pumps and small fans often require 12–24 V and a few amperes.
2. Connection: Connect positive and negative via the QDB‑5A's output. Ensure polarity is correct for the desired direction of rotation.
3. Adjust PWM: In the "Motor" menu, enter a frequency (often 1–10 kHz) and duty cycle. Start low and gradually increase. The motor speed should follow the duty cycle linearly.
4. Observe current and vibrations: If the motor draws more current than specified or vibrates unusually, it may need to be replaced. The oscilloscope can be used to observe voltage spikes when the motor brushes switch commutator segments.

Stepper motor

1. Identify the stepper motor: Idle air control motors on older cars and instrument stepper motors often have 4 wires. Consult the car's manual for wiring order.
2. Connection and setup: Connect the motor's four leads to the QDB‑5A's special stepper motor connector or via the included solder cables. Select "Stepper" in the menu and choose direction (forward/reverse) and number of steps or rotation angle.
3. Run the test: Press start. The motor should move smoothly. Check that the motor shaft does not bind. The maximum current is 1.5 A, so do not exceed the motor's specifications.
4. Analysis: If the motor skips steps or stops, check wiring and motor winding connections. A sluggish stepper motor may indicate a mechanical fault.

Hall signal simulation

1. Determine sensor type: Some AC pressure sensors and mass air flow (MAF) sensors use duty cycle-based outputs. Find out the frequency range and expected voltage interval.
2. Set up the signal generator: Select Hall mode. Enter frequency (kHz), peak voltage, and duty cycle. The QDB‑5A can generate very fast pulses up to 100 kHz, which is more than enough for most sensors.
3. Connect to the control unit: Disconnect the signal wire from the sensor and connect the QDB‑5A instead. Leave ground and reference voltage connected.
4. Adjust and observe: Change the duty cycle and see how the ECU or instrument reacts. For example, you can simulate different pressure values. A properly functioning control unit should react smoothly and display appropriate values. If not, the problem may lie in the control unit.

Oscilloscope and multimeter

1. Oscilloscope connection: Connect the tip of the test probe to the signal point and the ground clip to the chassis. Select "Scope" in the menu. Set the vertical scale (voltage) and horizontal scale (time base) to suit what you want to see.
2. Signal display: The QDB‑5A displays the waveform directly. You can observe rectangular pulses from injectors, sinusoidal sensors, or spikes from the ignition coil. Use the freeze function to stop and zoom in on the signal.
3. Multimeter mode: Select "DMM". Connect the probes to the point you want to measure. The screen shows voltage or resistance in real time. Use this to check voltage drop or circuit continuity.

Frequently Asked Questions (FAQ)

What vehicles can I use the QDB‑5A on?

All cars with 12 V electrical systems and most trucks and buses with 24 V. The tool's voltage input of up to 28 V provides sufficient margin for truck batteries. It is important to always set the correct test parameters based on the component and the vehicle.

Can the QDB‑5A measure current through a component?

Yes. With an external current clamp or shunt resistor, you can view the current on the oscilloscope. The device itself shows the output current for the test, up to 2.5 A.

Do I need an external battery?

No, the QDB‑5A is powered directly from the vehicle's battery or a laboratory power supply. For bench testing of injectors, you can use a power adapter. Ensure the current is sufficient for the desired test.

Is the oscilloscope as good as a separate oscilloscope?

The QDB‑5A's built-in oscilloscope is primarily adapted for pulse signals related to vehicle electronics. With a bandwidth adapted for kHz and low-voltage signals, it provides a clear picture of pulse and voltage waveforms. For more advanced measurements (MHz), an external oscilloscope may be needed.

Can I test capacitors and diodes?

Yes. The tool has a test mode for capacitance and diodes. You connect the component between the probes and read its properties on the screen.

Is it possible to update the software?

The QDB‑5A usually has static software, but some manufacturers offer firmware updates. Contact your supplier for information on updates. Most functions are already built-in and the need for updates is small.

How does the QDB‑5A differ from the QDB‑5 or QDB‑3A?

The QDB‑5A is an improved version with greater current capacity, adjustable output voltage (VADJ), wider PWM range, and more test cables. The built-in oscilloscope is also improved. The QDB‑5 or QDB‑3A may lack some features, such as motor testing or Hall simulation.

Can I use the QDB‑5A when the engine is running?

No, the components you are testing should be disconnected from the vehicle's systems. Running the engine while powering the components can damage both the tool and the vehicle. Always test on a bench or with the engine off.

Does it come with all the cables needed?

Yes, the package includes a power cable with clamps, several loose test leads, a connector plug for idle/stepper motors, and a solder cable to connect various types of connectors. Additional cables may be needed for specific vehicles but can be purchased separately.

Tips & advice

• Always use the correct parameters. Incorrect frequency or voltage can damage a component.
• Allow the component to cool between tests to avoid heat damage.
• Clean injectors and valves before testing them for more accurate results.
• Never connect the QDB‑5A to high-voltage lines such as spark plug caps without adapters.
• Ensure the battery you are using has good voltage and is fully charged. Voltage drop can lead to inaccurate measurements.
• Store the device in a dry place. Electronics are sensitive to moisture.
• Always read the vehicle manufacturer's repair manuals. The QDB‑5A is a helpful tool, but some systems have specific procedures.

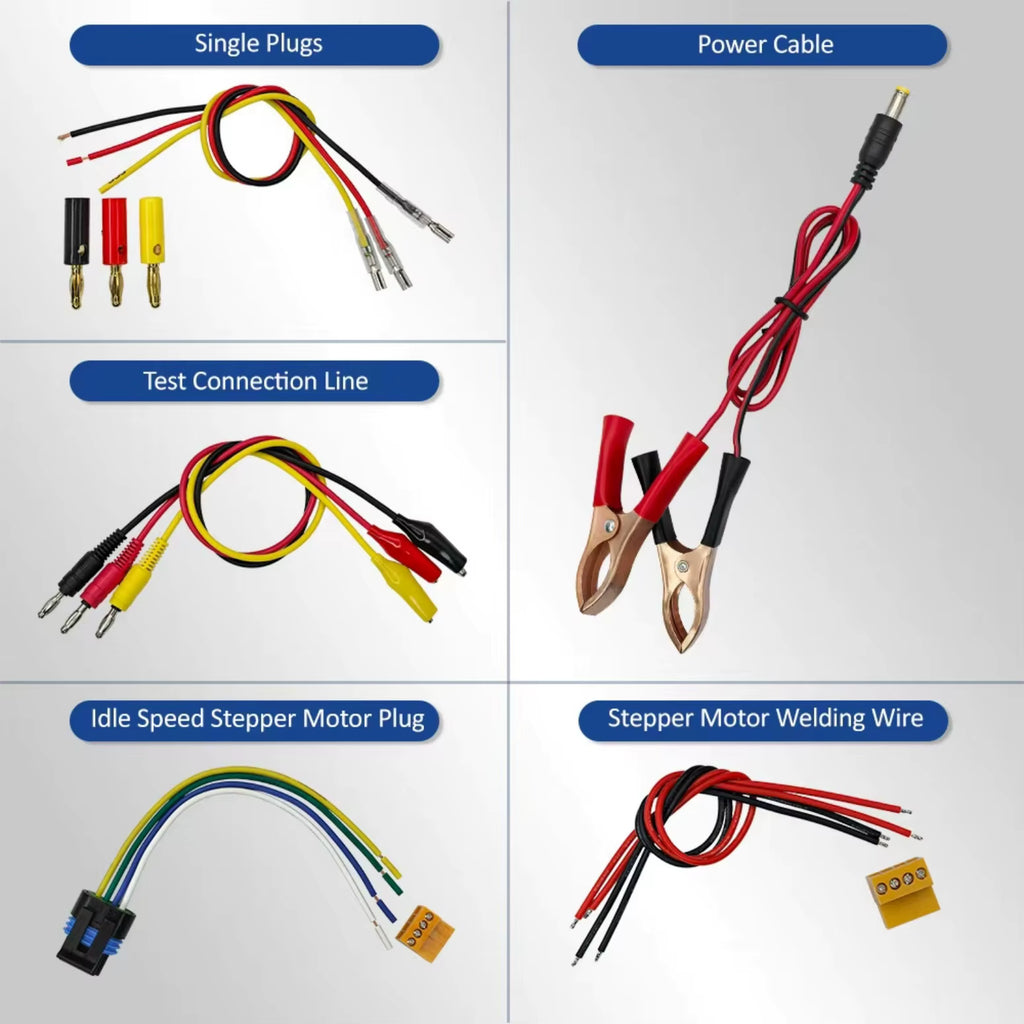

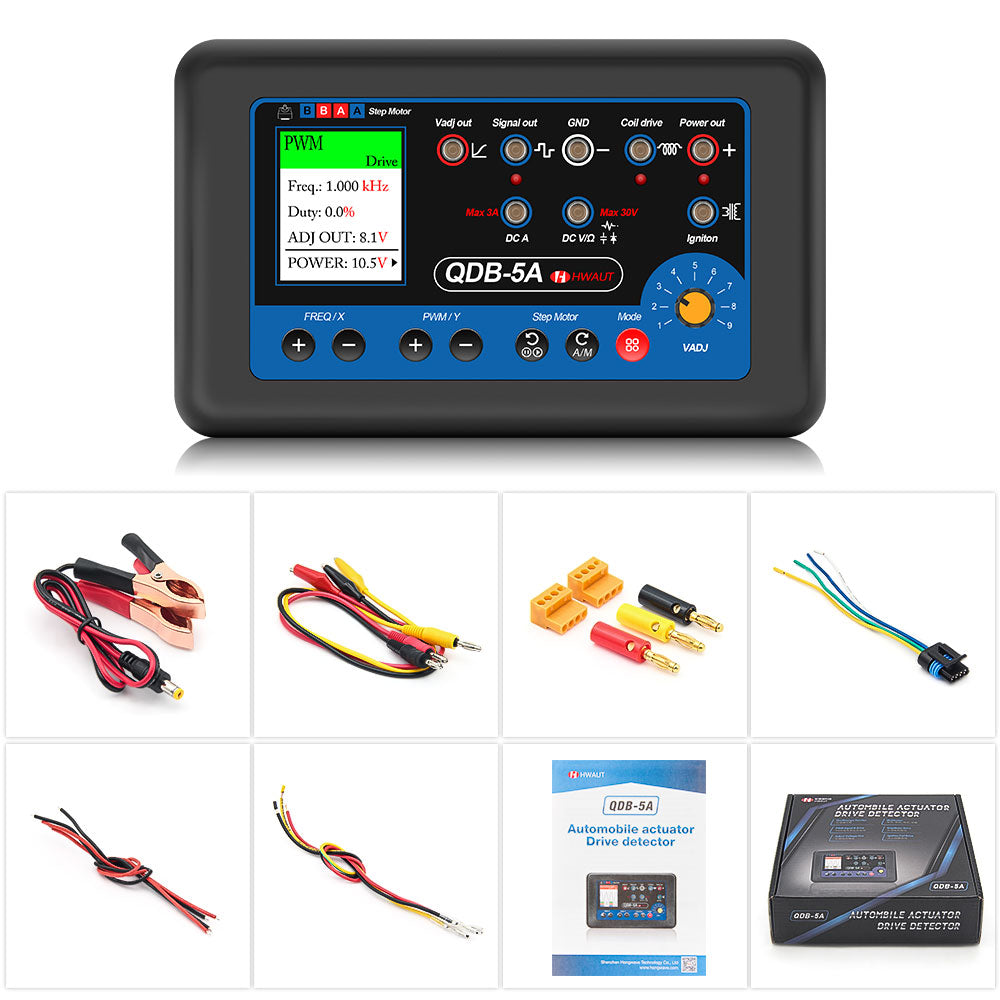

Package Contents

The delivery includes:

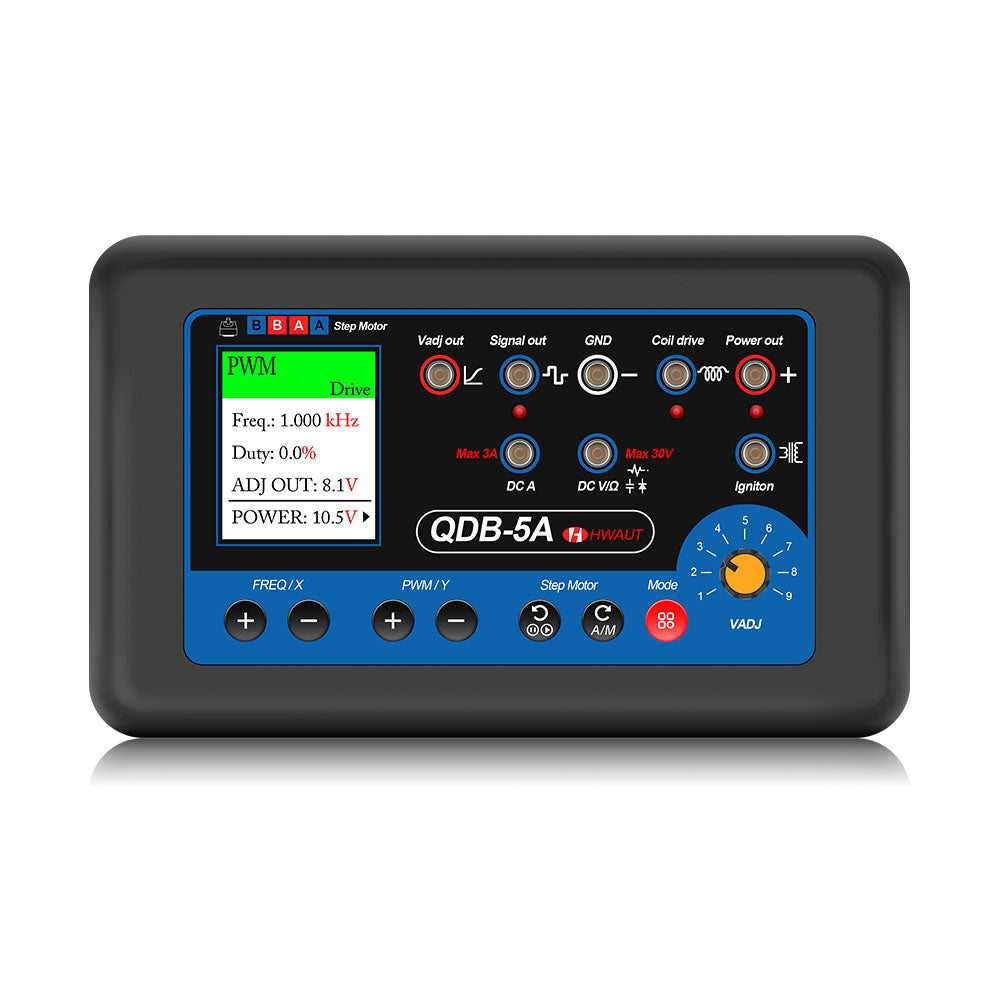

• 1 × QDB‑5A Actuator Drive Detector
• 1 × Power cable with clamps
• 4 × Simple test probes with banana connectors
• 3 × Test leads for measurement and operation
• 1 × Idle stepper motor plug
• 1 × Stepper motor solder cable
• 1 × User manual (English)
• 1 × Storage box or bag depending on supplier

Disclaimer & important notes

This product is intended for diagnostics and testing of electrical components and actuators in vehicles. Improper use can damage vehicles, tools, or yourself. Always follow the manufacturer's instructions and use protective equipment when performing high-voltage testing. The QDB-5A should only be used by trained workshop personnel or individuals with a thorough knowledge of vehicle electronics. We are not responsible for damages caused by improper handling.

Summary

The QDB-5A is a powerful diagnostic tool that combines several functions in one package. By being able to power and test ignition coils, injectors, solenoids, DC motors, stepper motors, and simulate sensor signals, it offers a comprehensive solution for advanced troubleshooting. The adjustable PWM signal, multimeter, and oscilloscope mean you won't need other instruments to analyze signals and currents. Whether you work in a professional workshop or at home in your garage, the QDB-5A gives you the tools to diagnose with high precision and efficiency. Investing in the QDB-5A pays off through time savings, fewer incorrect replacements, and more satisfied customers. For those who want to take their vehicle diagnostics to the next level, the QDB-5A is an excellent choice.
