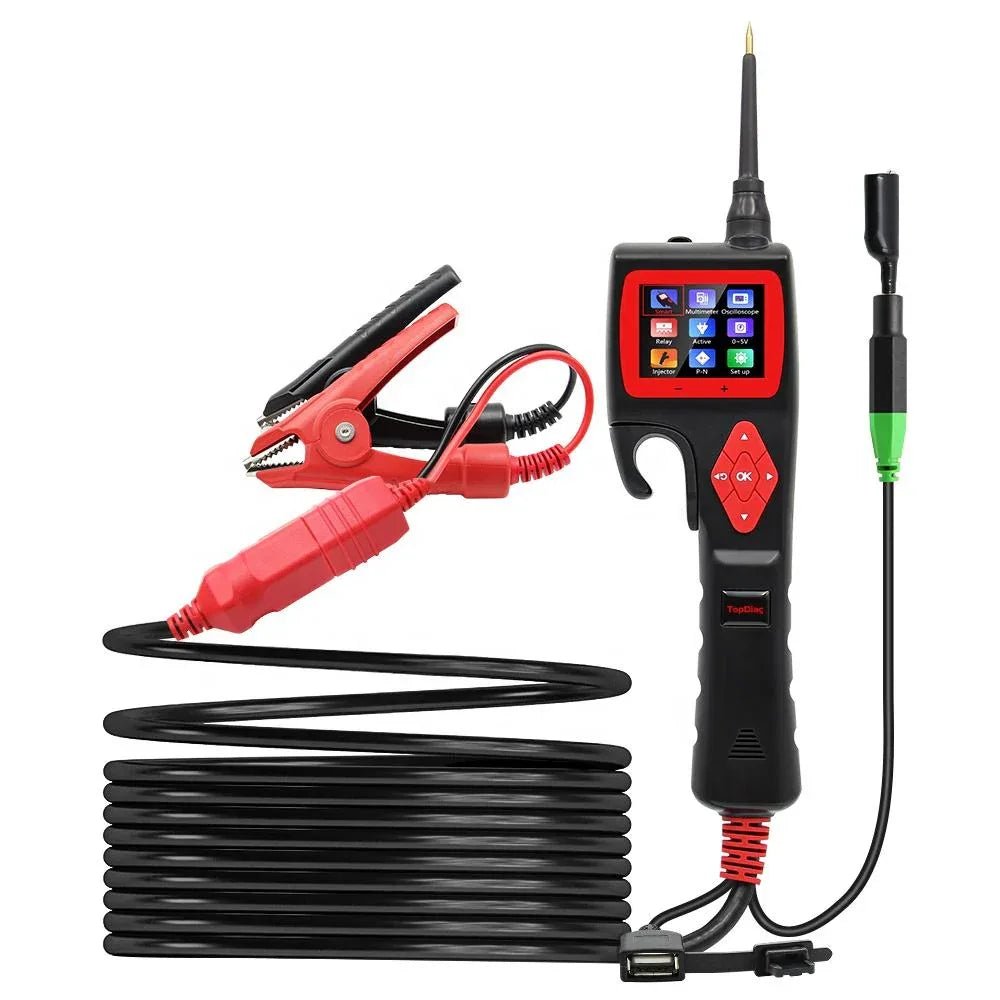

Topdiag P200 - Smart Circuit Tester / Power Probe Tester with Oscilloscope & Battery Test (9-30V, 2.4″ TFT)

Quick Overview

The Topdiag P200 Smart Auto Electrical Circuit System Tester (also known as a SMART HOOK / Power Probe-style tester) is a next-generation intelligent circuit analyzer for all 9–30V vehicle systems (12V/24V). Featuring a 2.4″ TFT color screen (320×240), free online updates, and 18 languages, the P200 provides rapid on-vehicle troubleshooting: measure voltage, resistance, diodes, continuity, current, and frequency, inject adjustable 0–5V, activate components (power/ground), test relays and injectors, analyze with a built-in oscilloscope, and perform battery tests (charging, starting/cranking, load).

The P200 comes with the new P181 breakpoint detector for quick tracing of breaks/cable damage, as well as a 6.0m test cable (longer with connectors) giving you a working radius around cars, RVs, motorcycles, or boats. The intelligent polarity and overload protection (adjustable circuit breaker) protects both the tool and the vehicle during component activation. With CE/FCC/RoHS, a 1-year warranty, and robust build quality, you significantly reduce test time and work faster, smarter, and safer.

Whether you're chasing voltage drops, verifying power/ground under load, measuring injector response, functional testing relays, or quickly checking batteries/alternators, the Topdiag P200 is a complete, portable system testing tool for both professional workshops and enthusiasts. The full guide below includes a step-by-step manual, troubleshooting tips, FAQ, and safety advice – all ready to use immediately.

Introduction

The Topdiag P200 is an intelligent automotive circuit analyzer that combines rapid measurement and active testing in one tool. Unlike a traditional multimeter, the P200 can not only measure – it can also output voltage (0–5V) and supply ground or positive to activate components in real-time, while an adjustable overcurrent breaker (automatic fuse) protects the circuit. With a built-in oscilloscope, you can visualize signals, and with injector test, relay test, and battery analysis, you can quickly solve the most common electrical faults in the workshop or driveway.

The tool covers all 9–30V systems and is suitable for cars, light & heavy vehicles, motorcycles, ATVs, boats, and RVs. With the P181 breakpoint detector, you can trace breaks in wiring harnesses without disassembling entire looms. The 6m cable provides a long reach, and free online updates ensure that functions and languages (18 total) remain current.

Specifications

• Model: TOPDIAG P200 (B0180)
• Type: Automotive Electrical Circuit System Tester (smart “power probe” tool)
• System Voltage: 9–30V (external power 12/24V via battery clamps)
• Display: 2.4″ TFT color, 320×240 dpi
• Languages: 18 (EN, ES, DE, FR, IT, PT, PL, RU, VI, TH, ID, FIL, MS, AR, KO, JA, ZH-TW, ZH-CN)
• Temperature (operating): 0–60 °C
• Temperature (storage): −40–70 °C
• Min./Max. working voltage: 9V / 30V
• Max. measuring voltage: 150V
• Voltage resolution: from 0.1V
• Resistance range: 1 Ω – 200 kΩ
• Current measurement: 0–18A (max continuous 18A)
• Adj. auxiliary power: 0–5V output (for sensor testing etc.)
• Cable length: 6.0m (more including connectors)
• Size / weight (kit): approx. 31×24×11 cm / 1.8 kg
• Certifications: CE / FCC / RoHS
• Updates: Free online upgrade via PC
• Warranty: 12 months

Features & Applications

Core Functions

• Intelligent auto-detection of voltage/polarity and resistance – quick identification in connectors.
• Multimeter mode: measure voltage, resistance, diode, continuity, current, and frequency.
• Oscilloscope: visualize waveforms for sensors, PWM signals, alternator ripple, etc.
• 0–5V adjustable output voltage: simulate sensor signals or reference power.
• Component activation: inject positive/ground for quick functional checks under load.
• Relay test: verification of coil/contacts and function under load.
• Injector test: check injector response and drive signal.
• P181 breakpoint detector: quick tracing of cable breaks/interruptions.
• Battery test: charging, starting/cranking, and load test, including voltage waveform.
• Smart protection: adjustable overcurrent protection (“intelligent circuit breaker”).
• UI theme: selectable background styles on the screen.
• Online-upgradeable software, lifetime free updates.

Typical Use Cases

• Diagnosis of power loss, ground faults, and voltage drops in wiring harnesses.
• Quick check of relays, fuses, lights, pumps, fans through active power supply.
• Verification of sensor circuits (MAP/MAP reference, TPS, ECT, lambda heating, etc.).
• Scanning of wiring harnesses in cars, motorcycles, trucks, boats – find breaks or short circuits.
• Checking battery/alternator with ripple analysis and dynamic tests.

Benefits – why Topdiag P200 is a good choice

• Faster troubleshooting: combine measurement, activation, and protection in one tool.
• Reach: 6m cable allows you to reach the front/trunk without moving the unit.
• Safety: smart overcurrent protection and clear polarity indication.
• Versatility: oscilloscope + multimeter + breakpoint finder + activation + battery test.
• Scalability: free online updates and multilingual interface.

Feel free to complement with matching accessories in our internal categories: probes & test pens, battery testers and cables & connectors.

Compatibility

Designed for all 9–30V vehicle installations: passenger cars, vans/commercial vehicles, trucks (24V), motorcycles/ATVs, boats/RVs, and other 12/24V systems. The tool is normally powered via the included battery clamps (12/24V). Note: activation/injection should only occur in circuits where such testing is safe according to OEM guidelines.

Manual & Workflows 🔧

Important before you start

• Work in a safe environment. Safety glasses and gloves are recommended.
• Connect the P200 to the vehicle's battery (+ red, − black). Check polarity.
• Set the overcurrent protection to the appropriate level for the circuit. Start low and increase if necessary.
• Never activate control modules/lines with injected voltage if OEM advises against it (risk of ECU damage).

Interface & quick navigation

• Auto ID: The tool automatically displays voltage and polarity when the probe touches a point.
• Menus: select Multimeter, Oscilloscope, Relay Test, Injector Test, Battery Test, P181, etc.
• Themes: switch background style for better readability in different lighting conditions.

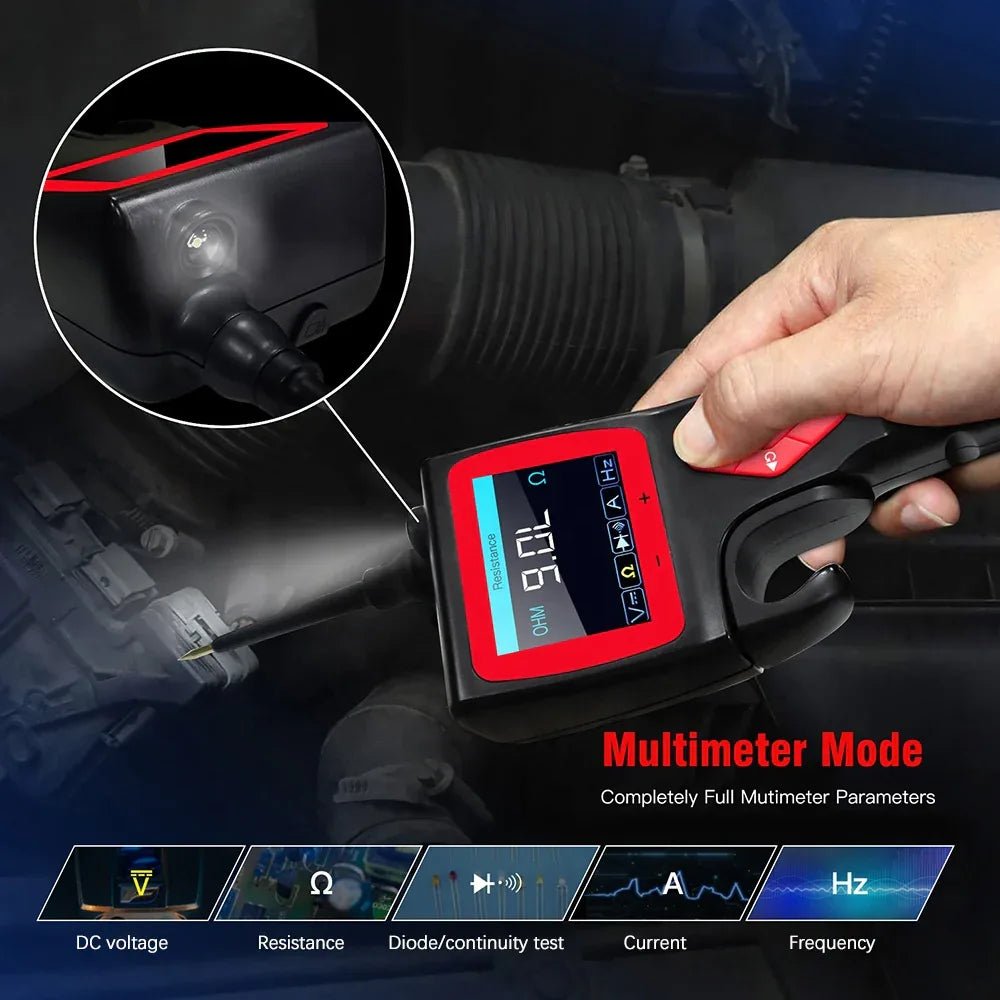

Multimeter mode (V/Ω/⚡/Freq)

1. Select Multimeter. Touch the test point with the probe.
2. Voltage: read DC level. Compare against reference (12.6V idle; 13.8–14.7V charging).
3. Resistance: measure components disconnected from the system to avoid ghost paths.
4. Diode: measure forward voltage drop (typically 0.5–0.7V silicon).
5. Continuity: buzzer sounds at low resistance (ground/wire).
6. Current: use current input/test lead as per manual. Observe 18A continuous max.
7. Frequency/PWM: verify signals to valves, fans, charge regulators.

Activation (power/ground) & 0–5V output

1. Select Component Activation. Set overcurrent protection to a safe level (e.g., 3–5A for small loads).
2. Select + or − injection. Test on the load's input (lamp, motor, valve).
3. Observe function. If protection trips – check for short circuit/load's ratings.
4. For 0–5V: select PSU, enter level (e.g., 1.0V, 2.5V, 5.0V) for sensor simulation.

Relay test

1. Connect the included relay test cable to the relay's pins according to markings (30/85/86/87).
2. Activate the coil side via P200. Verify click and contact switching. Measure voltage drop across contacts under load.
3. Check that the relay carries rated current without abnormal voltage drop/heating.

Injector test

1. Connect the adapter to the injector's connector or measure on the signal wire.
2. Use the oscilloscope to view pulse width/frequency. Compare banks/cylinders.
3. With activation, you can briefly confirm click/response if OEM allows. Do not inject voltage into ECU-controlled low-level lines.

Oscilloscope

1. Select Oscilloscope. Connect probe and, if necessary, ground clamp near the measurement point.
2. Display alternator ripple, PWM controls, sensor curves (e.g., TPS), etc.
3. Adjust time base and voltage scale for a stable image. Save if needed.

Battery test (Charging / Startup / Load)

1. Select Battery Test. Follow on-screen instructions.
2. Charging: measure charging voltage at idle/load (lights, fan). Check ripple (diode bridge).
3. Startup (Cranking): record lowest voltage during start – assess battery/ground/starter motor.
4. Load: simulate load and read voltage stability.

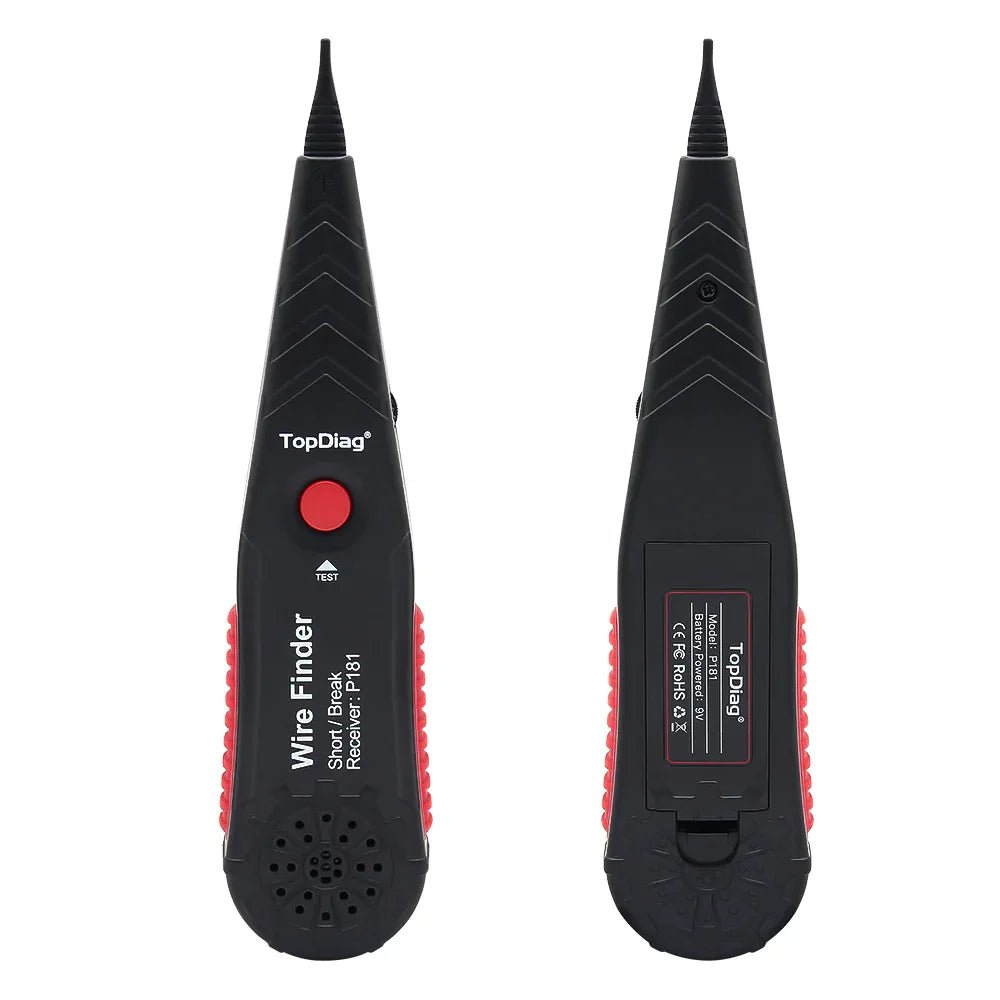

P181 breakpoint detection

1. Connect P181 as per manual. Follow the cable along the harness and listen/observe response.
2. When the signal drops between two measurement points, you have passed the break.
3. Open the harness only where the fault has been localized to save time.

Troubleshooting

• "Breaker tripped": load/short circuit exceeds selected limit – lower injection level, check the circuit.
• No activation: revert to measurement mode and verify that the correct pin is reached and that ground/power is present.
• Noisy waveform: shorter ground lead, measure closer to the load, filter interference.
• Wrong language/UI: update and select language in the menu; check firmware.

Tips & Best Practices 💡

• Work methodically: measure first (passively), then activate (actively) if safe.
• Grounding strategy: use chassis ground near the load to minimize measurement errors.
• Voltage drop: measure both positive and ground paths under load to find high resistance.
• Document: save waveforms and values before/after intervention as customer documentation.
• Sensor simulation: 0–5V output is powerful – stay within sensor specifications and use series resistors if needed.
• ECU lines: never power an unknown pin with voltage. Read wiring diagrams first.
• Cable care: store the 6m cable on a hook/spool to avoid damage.

Frequently Asked Questions (FAQ)

Which systems are supported?

All 9–30V vehicle installations (12/24V): car, truck, motorcycle, boat, RV.

Can the P200 replace a multimeter?

It has multimeter functions and activation/oscilloscope, but precision measurements on a bench can still be done with a DMM.

How is the circuit protected during activation?

Adjustable overcurrent protection (intelligent breaker) trips on overload/short circuit.

Is the 0–5V output safe for sensors?

Yes, if you stay within the sensor's permissible levels. Always use OEM data and avoid direct feeding to ECU inputs without series resistance.

What can I see with the oscilloscope?

PWM controls, sensor signals, alternator ripple, switching, injector pulses, etc.

Can I test relays in the car without removing them?

Yes, with the relay test cable, you can load and switch the relay in a controlled manner.

Does the breakpoint finder work through insulation?

Yes, for many harnesses. Shielding/routing can affect it; move the probe incrementally.

Can I damage the ECU?

If you apply voltage to the wrong pin, damage can occur. Always follow diagrams and use measurement mode first.

What is the maximum continuous current?

18A. Higher current can cause the breaker to trip and potentially damage the circuit.

Support for multiple languages?

Yes, 18 languages in the menu. Select under settings.

Updates?

Free online updates via PC software.

Can I use the P200 on 6V systems?

Operating voltage is 9–30V. For 6V – use a separate meter or external power and measure passively.

Is the test cable replaceable?

Yes, but use original or quality replacement with correct cross-section and connectors.

Can I measure current through a fuse?

Use a current loop/adapter as per manual and safe levels. Alternatively, voltage drop across a fuse + table.

What is the P200's range?

6m cable (longer including connectors) is sufficient for most vehicles.

What battery tests are available?

Charging test, starting/cranking test, load test, and ripple waveform.

Can the P200 withstand a workshop environment?

Yes, robustly built with protected cables and clear connectors.

Can I print saved data?

Yes, export via PC software and printer.

What do I do if the values "jump"?

Improve ground, measure closer to the load, filter interference, check contact surfaces.

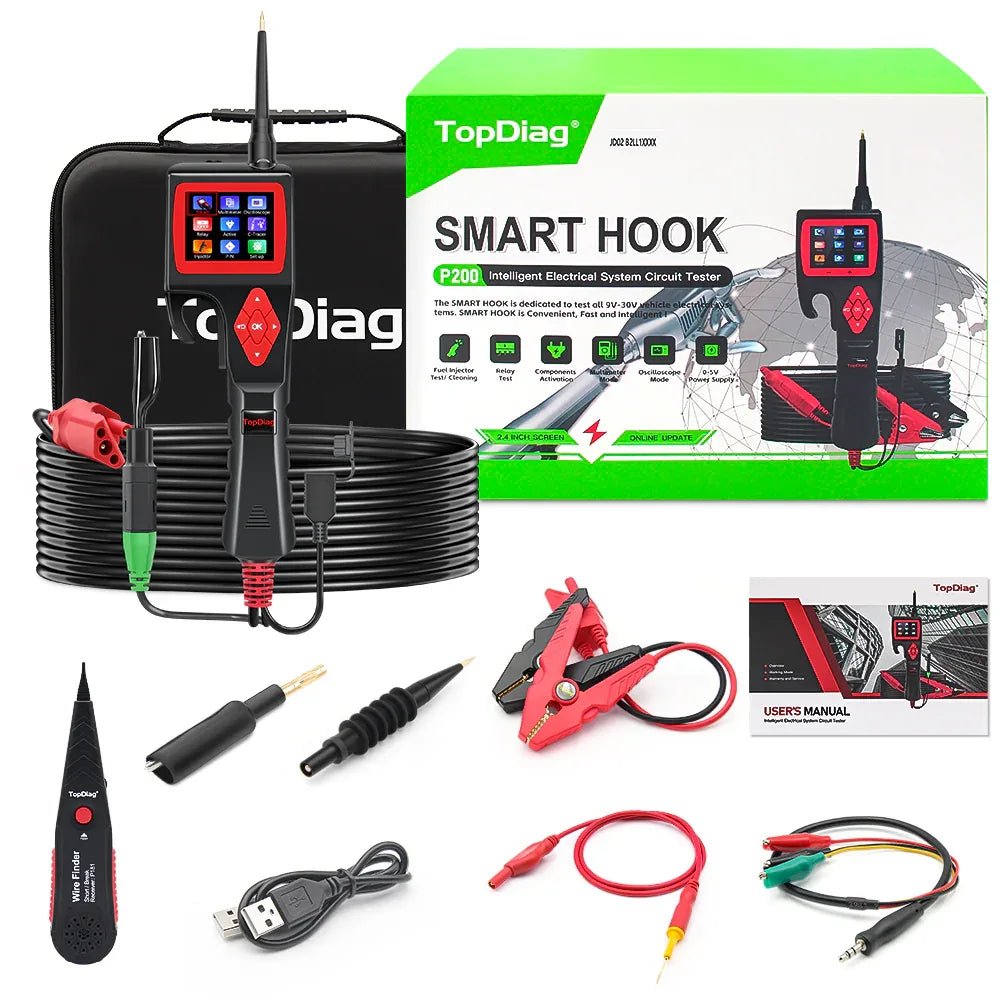

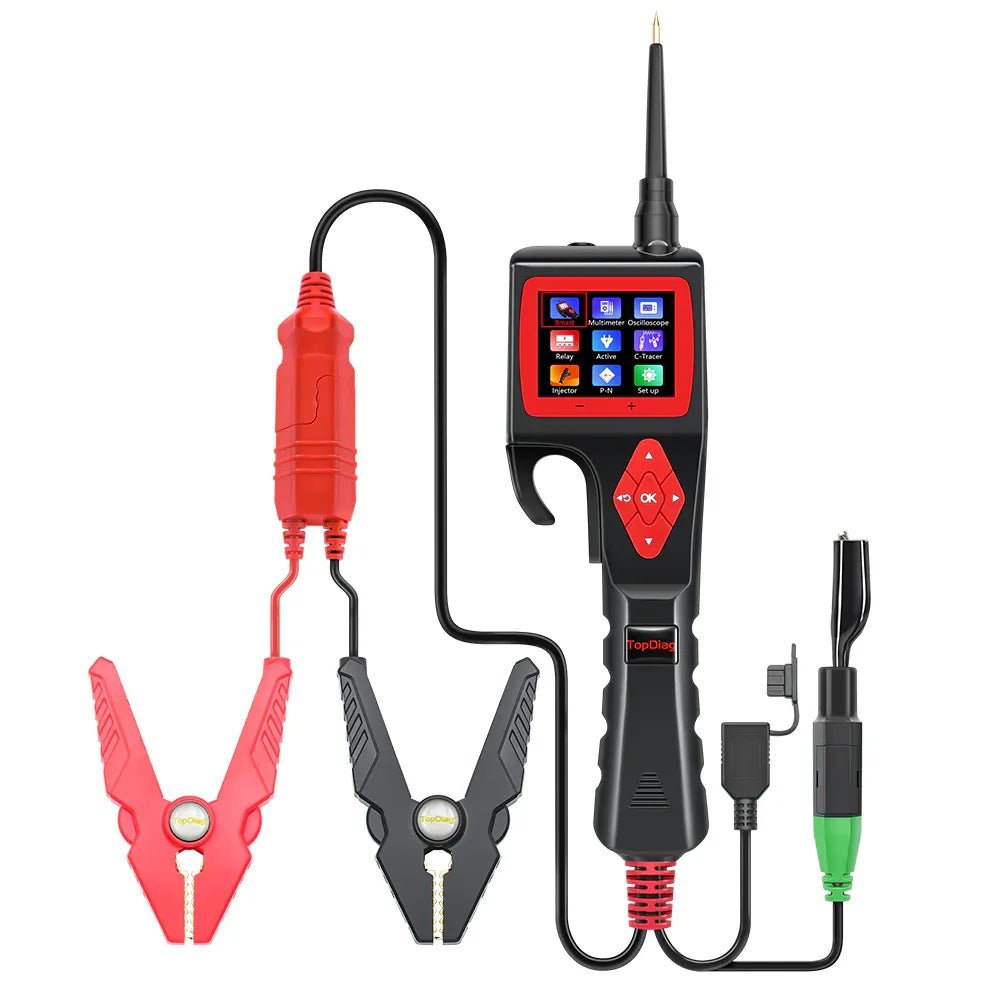

Package Contents 📦

• 1 × P200 main unit
• 1 × P181 breakpoint detector
• 1 × Solid copper test tip (probe)
• 1 × Bidirectional test connection cable (≈ 6.0m)
• 1 × Probe adapter
• 1 × Special battery clamp (alligator, design for P200)
• 1 × Relay test cable
• 1 × USB cable
• 1 × User manual
• 1 × Storage box

Disclaimer & Safety ⚠️

• Always follow vehicle manufacturer's wiring diagrams and service bulletins.
• Never power ECU inputs or communication lines (CAN/LIN) with voltage unless explicitly stated as safe.
• Observe 18A max continuous current and use correct overcurrent protection.
• Work in a ventilated environment; avoid sparks near battery/fuel.
• Specifications are subject to change without prior notice. Images/equipment may vary per batch.

Summary

The Topdiag P200 combines a multimeter, oscilloscope, active component activation, breakpoint detection, and battery test in a robust, upgradeable tool for 9–30V vehicles. Its intelligent automation, safety features, and 6m reach allow you to solve electrical faults faster – from simple bulb failures to complex voltage drop issues and intermittent cable faults. With a clear screen, 18 languages, and free updates, the P200 is a future-proof choice for both workshops and advanced hobbyists.
