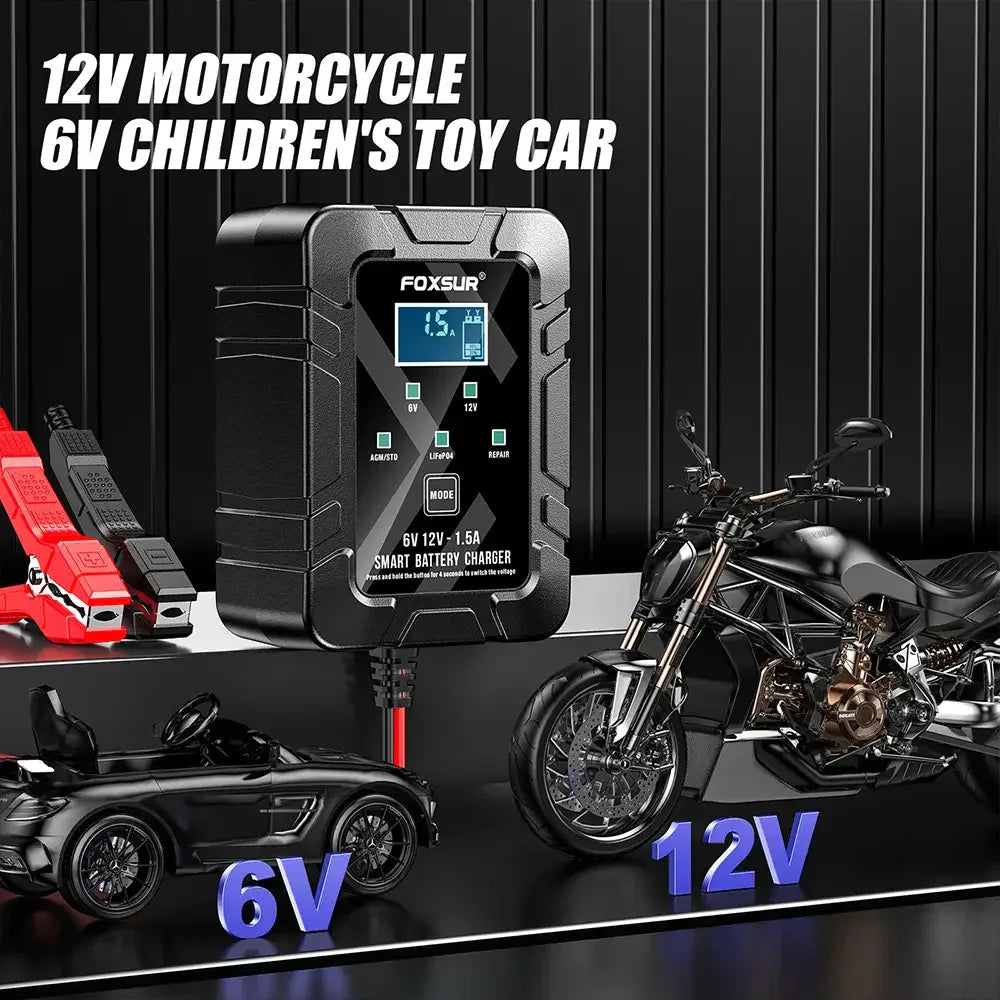

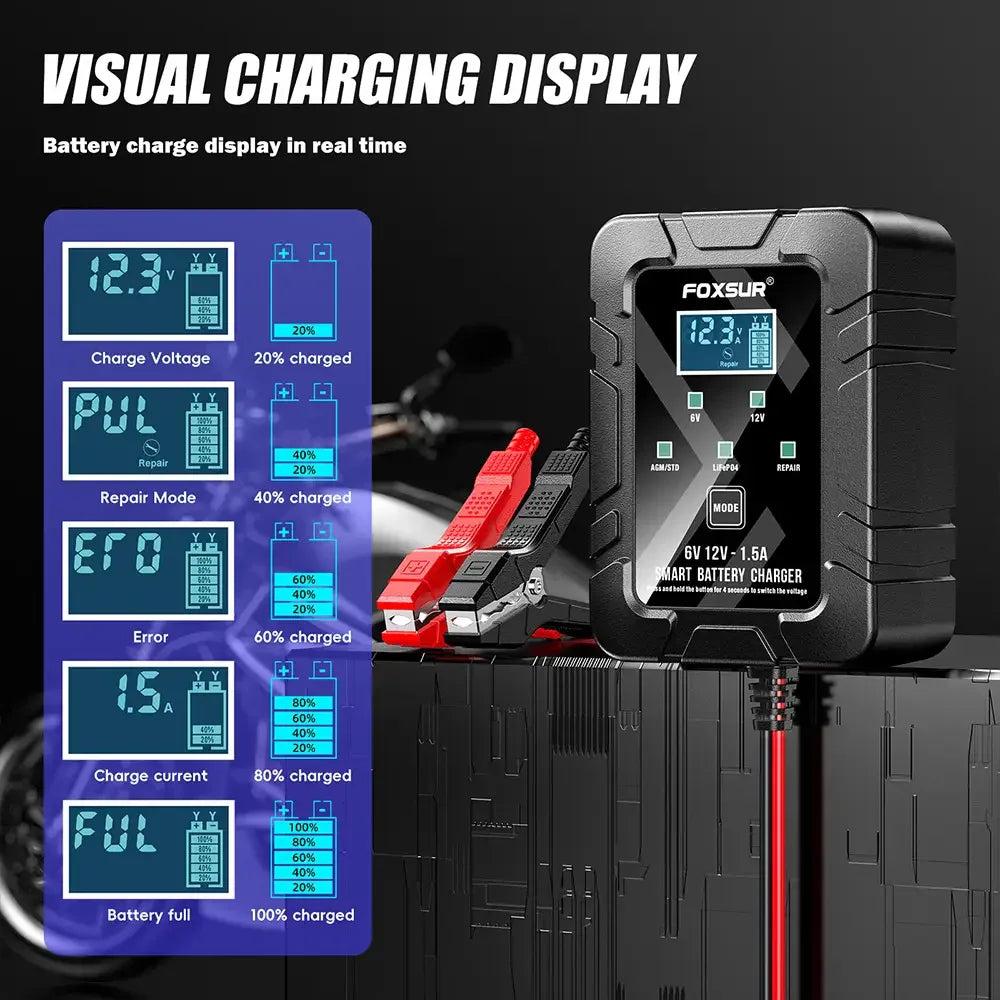

The Universal Foxsur 12V Battery Charger 6V 1.5A is a high-quality and automatic smart charger perfect for both motorcycles and cars. This battery charger is designed to be user-friendly and efficient, making it an excellent choice for anyone who needs to maintain their batteries. With an LCD display, you can easily monitor the charging status.
This battery charger uses the latest technology to charge various types of batteries, including:
- Lead-Acid
- AGM
- GEL
- Flooded (Wet)
- Calcium Type Deep Cycle
- VRLA Maintenance-Free Lead-Acid
- LiFePo4
It is compatible with batteries ranging from 4Ah to 30Ah, making it very versatile. Here's a guide on how to use the Universal Foxsur 12V Battery Charger 6V 1.5A:
- Verify the voltage and chemistry of the battery.
- Ensure the AC power plug is connected to an electrical outlet.
- Press the button to switch to the correct charging mode.
- Confirm that you have connected the battery clamps or eyelet terminals correctly.
- The indicator light for the selected mode will illuminate, and the charging icon will light up to show that the charging process has started.
- The charger can be left connected to the battery for maintenance charging.

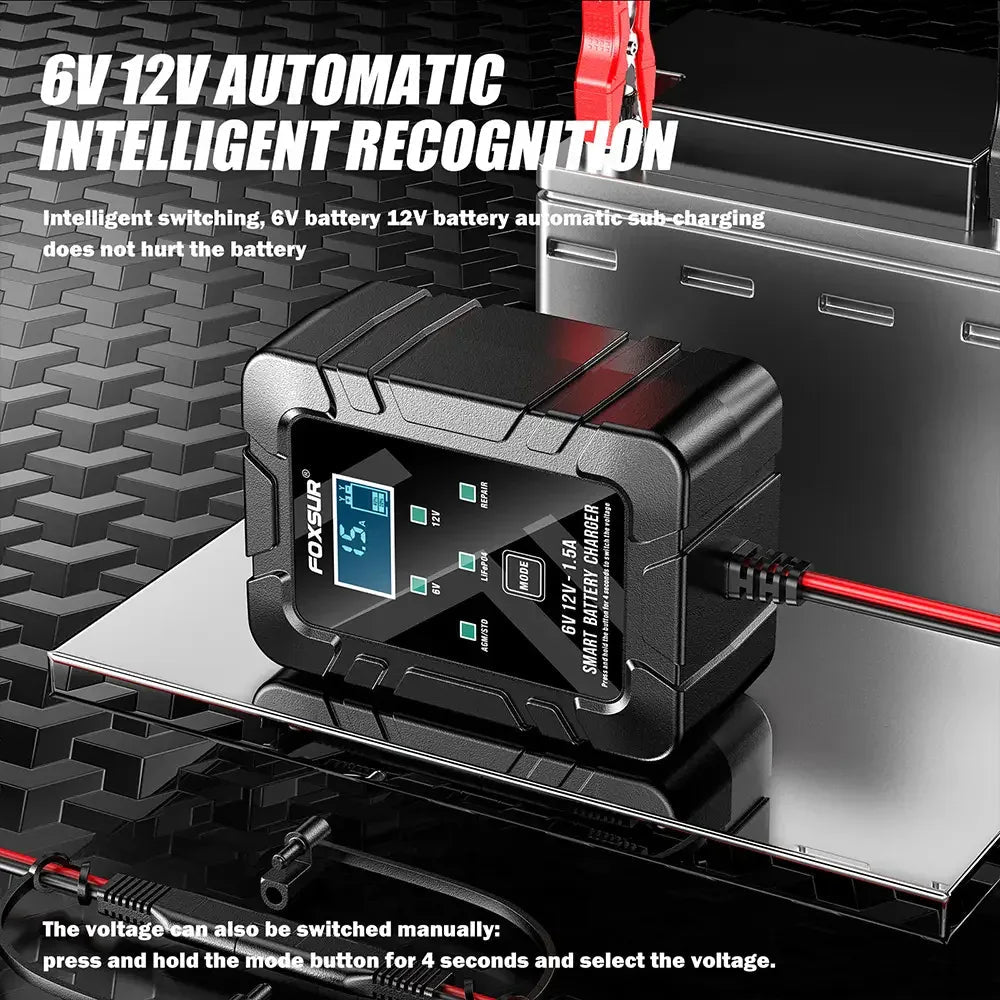

To select charging voltage 6V or 12V, follow these steps:
- Connect AC power and the battery.
- Press and hold the mode button for 4 seconds; the voltage light will flash. At this point, you can press the button to switch to the corresponding voltage.
To use pulse charging for battery repair, follow these steps:
- Connect the battery to the charger and turn on the AC power, then press the "mode" button to select "Repair mode" where "PUL" will be displayed on the screen.
- The recommended repair time for motorcycle batteries is 8 hours, and for car batteries, 16 hours.
- Press the "Mode" button again, and the charger will automatically switch to normal charging mode.
- Check the battery's temperature during repair; stop the repair if the temperature becomes too high. The maximum repair time is 16 hours.
- The battery will charge even if the charger is in repair mode, and it will be fully charged if the repair takes a long time. An extra hour of charging is recommended when the battery screen shows "End". Double-check that the battery is fully charged when charging is complete.
Frequently Asked Questions (FAQ):
-
LCD shows "FUL" but the battery is not fully charged. Answer: This can be due to the internal resistance of the battery being too high or the battery's capacity being reduced. Use "Repair mode" to activate the battery.
-
The battery voltage is normal, but the charger is not working. Answer: Check for AC input. Ensure the power source is working and change the outlet if necessary.
-
Performing charging and cannot reach "FUL" status after a long time. Answer: The battery may be vulcanized or the fluid may be depleted. Ensure the battery is not too hot and that there is no fluid missing.
With the Universal Foxsur 12V Battery Charger 6V 1.5A, you can easily and efficiently maintain your batteries and ensure they are always ready for use.
